KENMORE ELECTRIC COOKTOP INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in
WARNING
the vicinity of this or any other appliance.
IMPORTANT INSTALLATION INFORMATION
• All electric cooktops run off a single phase, three-wire or four-wire cable, 240/208 volt, 60 hertz, AC only
electrical supply with ground.
• Minimum distance between cooktop and overhead cabinetry is 30" (76.2 cm).
For Standard Installation:
Cooktop Dimensions
Cooktop Cutout Dimensions
F
Do not slide unit into cabinet cutout.
Protruding screws on the bottom of
unit may damage the bottom front
finish.
MODEL A. LENGTH
7
36 (91.4 ) 35 / (91.1)
8
All dimensions are stated in inches and (cm).
Allow 2" (5 cm) space below the armoured cable opening to clear the electric cable and
allow space for installation of the junction box on the wall at the back of the cooktop.
Printed in United States
A
4"X 8" (10.2 cm x 20.3 cm)
opening to route armoured cable.
H***
G
1" (2.5 cm)

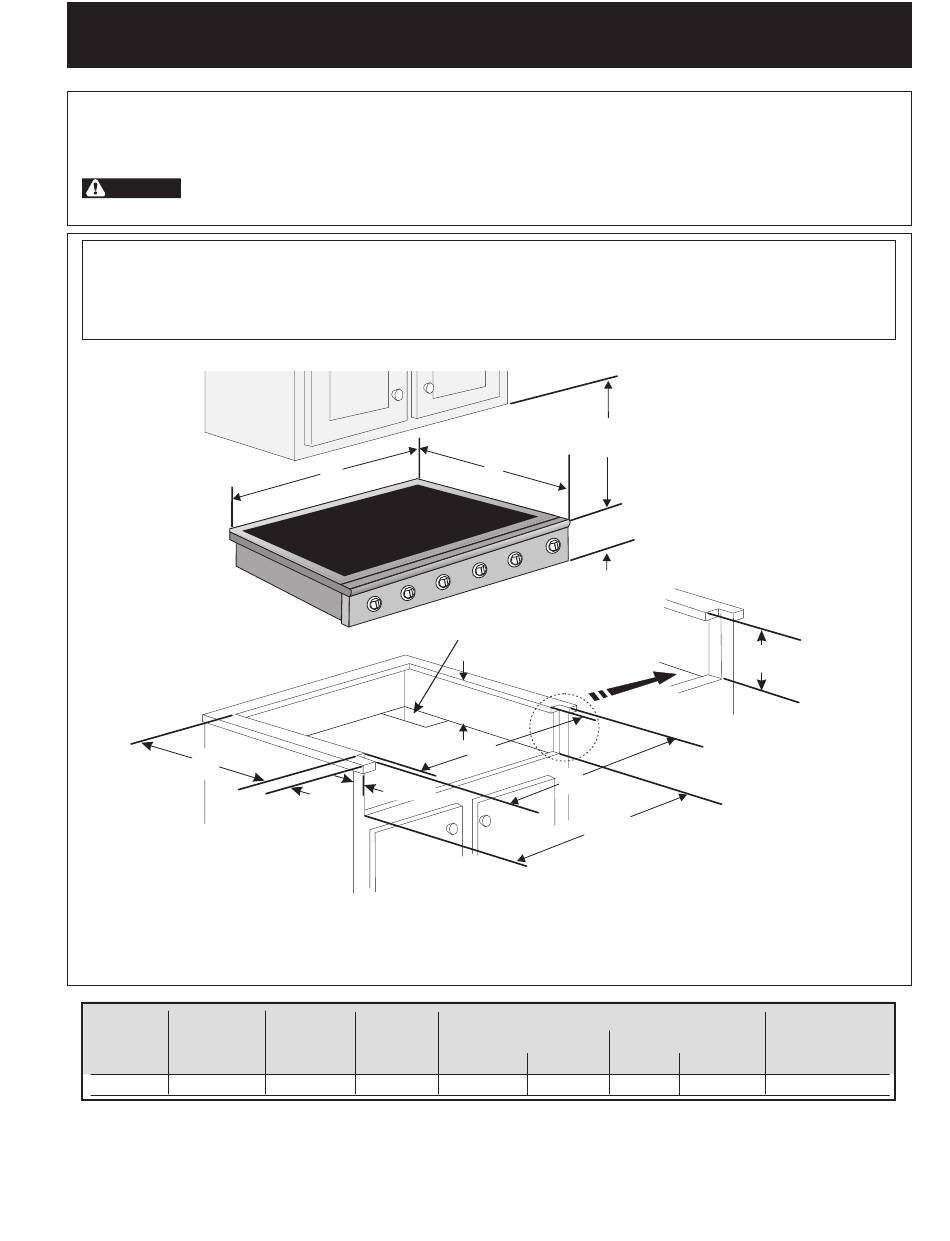

Figure 1
B. WIDTH C. DEPTH
15
25 (63.5) 7¾ (19.7) 35
30" Min. *
(76.2 cm)
B
C
E
D
35 1/8"
(89.2 cm)
**Note: D & E are critical to the proper installation
of the cooktop. D reflects the finished dimension.
Due to the variation in countertop materials, it is
recommended to first undercut this dimension, and
then adjust it upon installation of the cooktop.
CUTOUT DIMENSIONS
LENGTH
D** E** F
3
/ (91.3) 35 / (89.4) 22 (55.9) 1
16 16
1
* 30" (76.2 cm) min. for
unprotected cabinet and
24" (61 cm) min. for
cabinet with protected
bottom surface.
7¼"
(18.4 cm)
H. DEPTH BELOW
WIDTH COOKTOP
G
1 1
/ (2.9) Max. 7 / (19.1)
8 2
P/N 318201438 (0603) Rev. A
