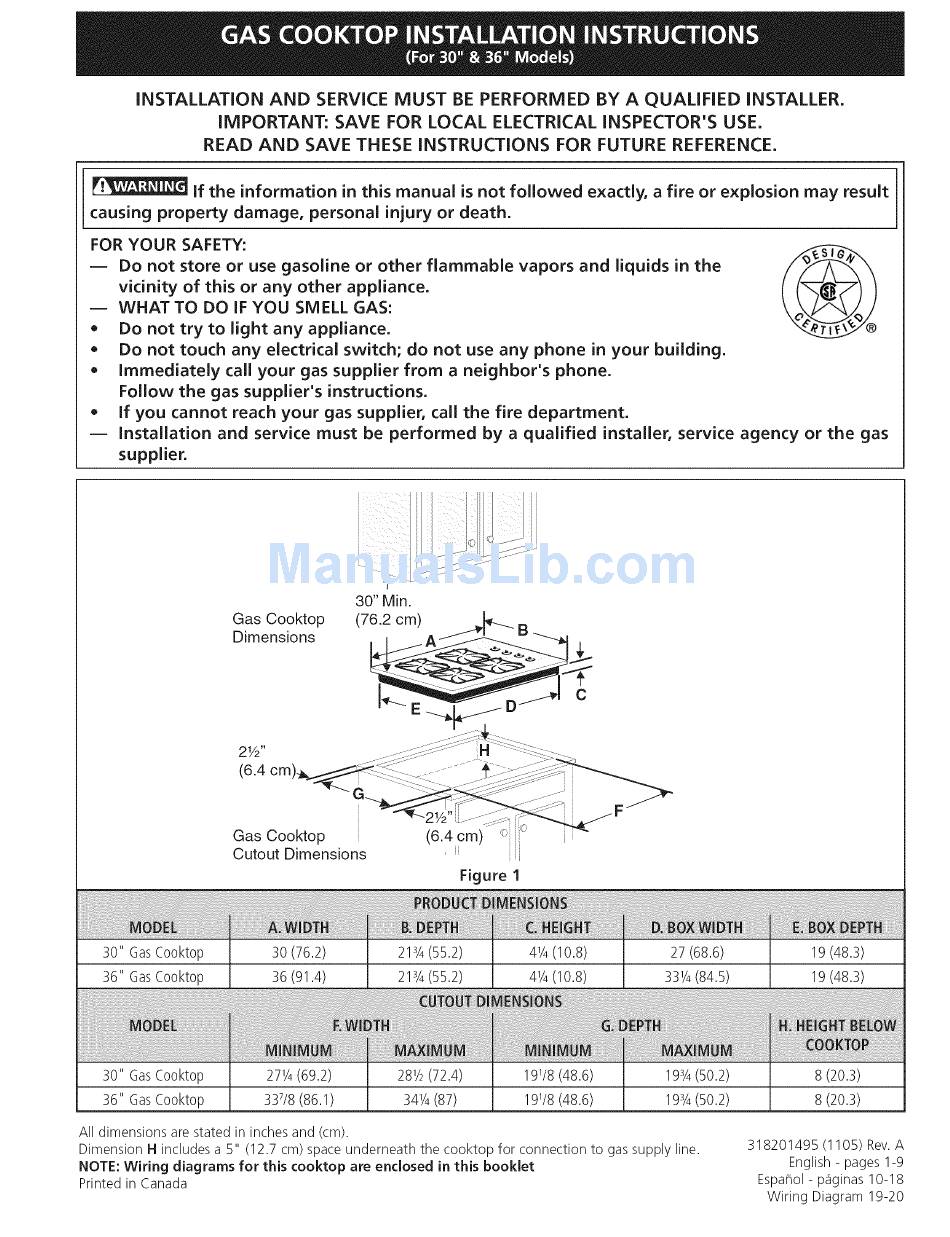

Kenmore 3243 Installation Instructions Manual

iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.
If the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
FOR YOUR SAFETY:
B
®
®
®
®
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
if you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
i
30" Min.
Gas Cooktop (76.2 cm) _ B
Dimensions . _ A/:J- ----_
c
21/2 - -::::::_::( _-.... H ...... _ _--c::- ....
Gas Cooktop (6.4 cm) _c ;_
Cutout Dimensions ' ii
Figure I
30" GasCooktop
36" GasCooktop
30 (76.2)
36 (91.4)
21s/4 (55.2)
21s/4 (55.2)
41/4 (10.8)
41/4 (10.8)
27 (68.6)
331/4 (84.5)
19 (48.3)
19 (48.3)
30" GasCooktop 271/4 (69.2) 281/2 (72.4) 191/8(48.6) 198/4 ( 50.2) 8 (20.3)
36" GasCooktop 337/8(86.1) 341/4 (87) 191/8(48.6) 19Y4 (50.2) 8 (20.3)
All dimensions are stated in inches and (cm).
Dimension H includes a 5" (12.7 cm) space underneath the cooktop for connection to gas supply line.
NOTE: Wiring diagrams for this cooktop are enclosed in this booklet
Printed in Canada
318201495 (1105) Rev.A
English - pages 1-9
Espaflol - p_iginas 10-18
Wiring Diagram 19-20
