BKPF-106A

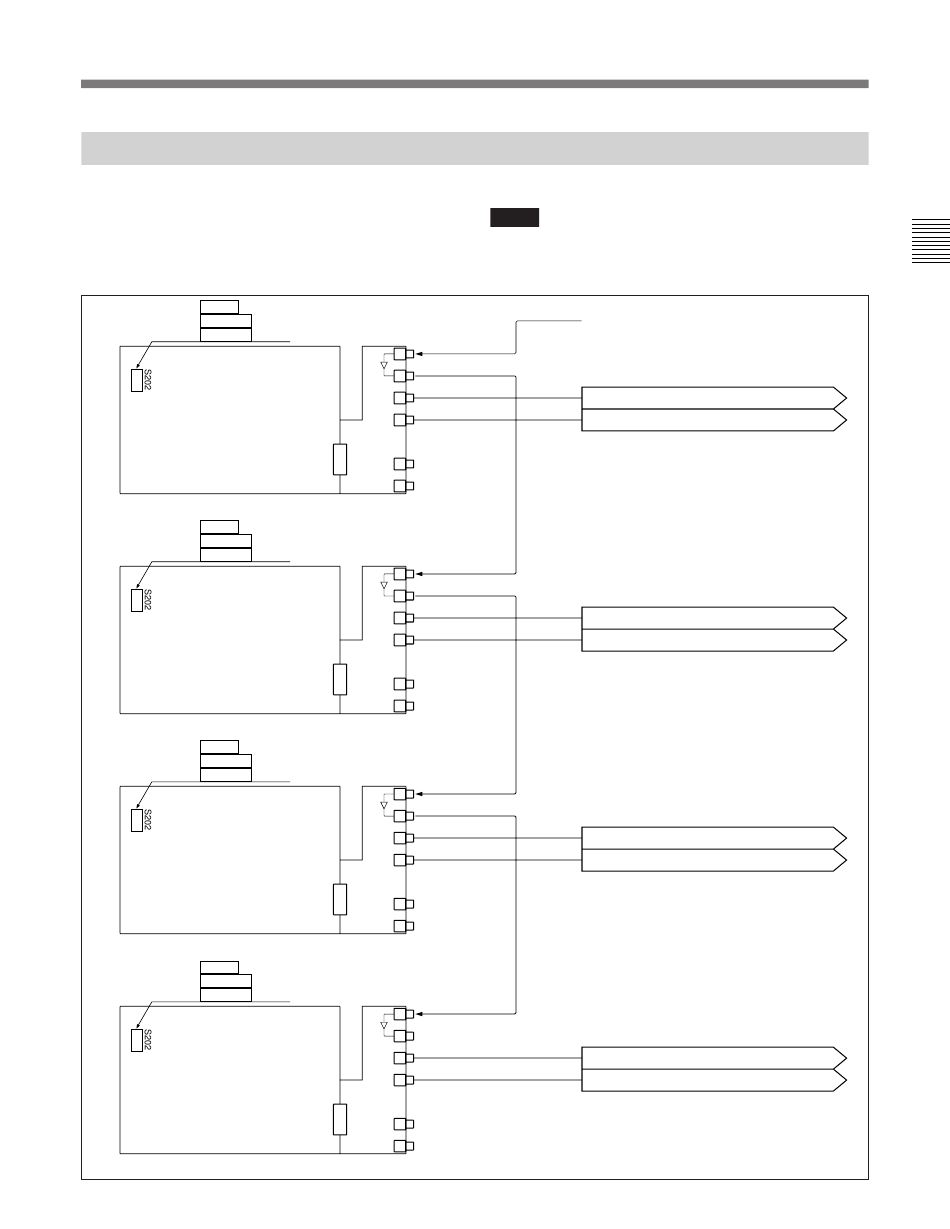

In 4:4:2 component mode, the BKPF-106A can output
audio data of a maximum of 16 channels. A possible
cascade connection example is shown below. It is also
possible to connect a single signal in parallel by using
an SDI distributor or equivalent.
S202-1 D1/D2 : D1
S202-2 GPSEL1 : OFF
S202-3 GPSEL2 : OFF
AVD-11
BKPF-106A
S202-1 D1/D2 : D1
S202-2 GPSEL1 : ON
S202-3 GPSEL2 : OFF
AVD-11
BKPF-106A
S202-1 D1/D2 : D1
S202-2 GPSEL1 : OFF
S202-3 GPSEL2 : ON
AVD-11
BKPF-106A
S202-1 D1/D2 : D1
S202-2 GPSEL1 : ON
S202-3 GPSEL2 : ON
AVD-11
BKPF-106A
Group 1 to group 4 can be connected in any order.
Note
If there are no data for any of the channel groups, AES/
EBU digital audio signals in logical silent state are output
for that group.
SDI IN
Active-through output
AES/EBU OUT 1
AES/EBU OUT 2
SDI OUT 1
SDI OUT 2
CN-1481
SDI IN
Active-through output
AES/EBU OUT 1
AES/EBU OUT 2
SDI OUT 1
SDI OUT 2
CN-1481
SDI IN
Active-through output
AES/EBU OUT 1
AES/EBU OUT 2
SDI OUT 1
SDI OUT 2
CN-1481
SDI IN
Active-through output
AES/EBU OUT 1
AES/EBU OUT 2
SDI OUT 1
SDI OUT 2
CN-1481
4:2:2 component serial digital video signal
with audio signals multiplexed
Audio group 1 CH1/CH2
Audio group 1 CH3/CH4
Audio group 2 CH5/CH6
Audio group 2 CH7/CH8
Audio group 3 CH9/CH10
Audio group 3 CH11/CH12
Audio group 4 CH13/CH14
Audio group 4 CH15/CH16
11 (E)
