Location and Function of Parts

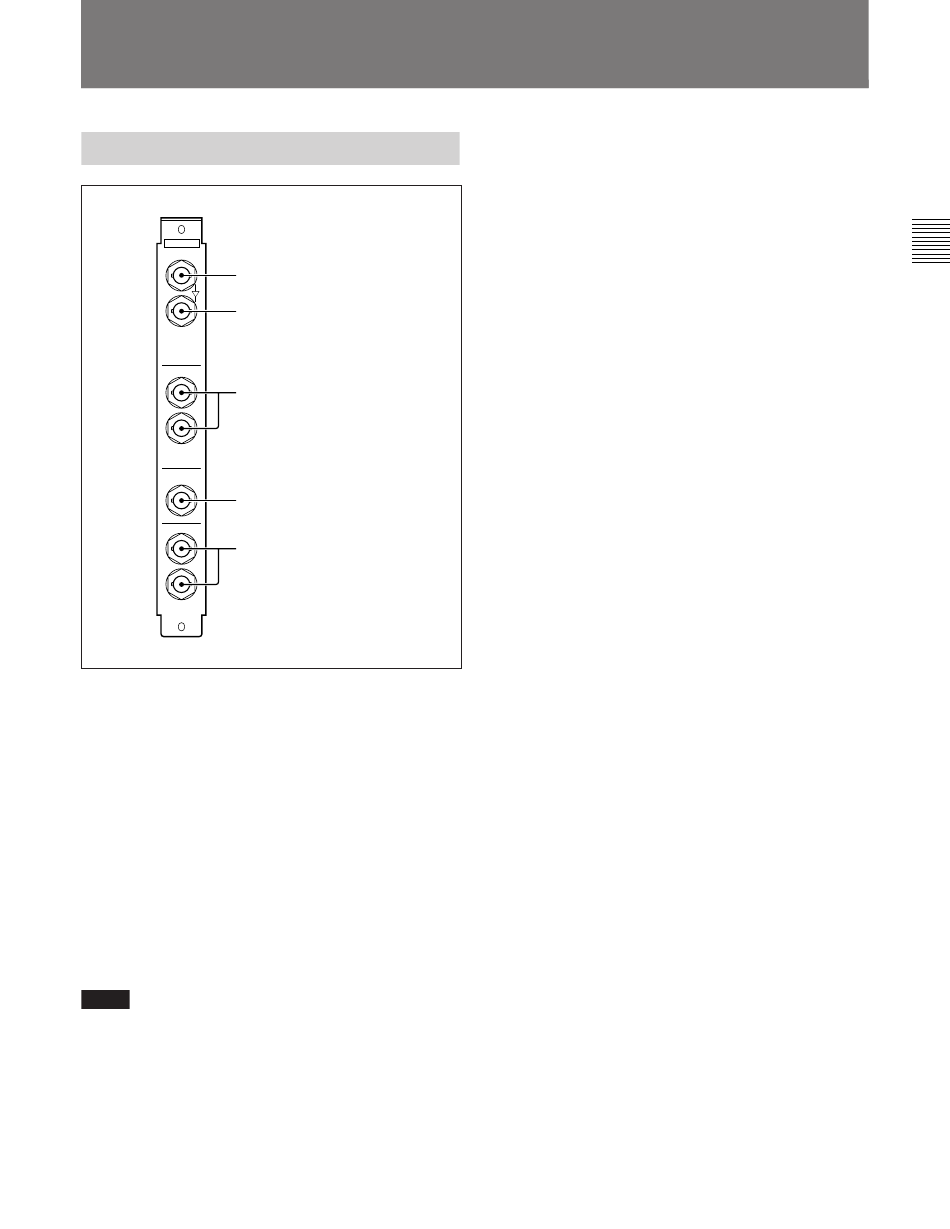

BKPF-105A Connector Panel

AVM
SDI IN
1 SDI IN connector
2 Active-through output connector
AES/EBU IN
1
3 AES/EBU IN connectors
2
WORD SYNC
OUT
4 WORD SYNC OUT connector
SDI OUT
1
5 SDI OUT connectors
2
BKPF-105A
1 SDI IN (serial digital video signal input)
connector (BNC type)
Accepts a 4:2:2 component or 4fsc NTSC composite
serial digital video signal.
2 Active-through output connector (BNC type)
Outputs the signal supplied to the SDI IN connector
after its waveform has been shaped.
3 AES/EBU IN (digital audio signal input)
connectors (BNC type)
Accept AES/EBU digital audio signals.
Connector 1: Channels 1/2 (or 5/6 in group 2)
Connector 2: Channels 3/4 (or 7/8 in group 2)
Note
Be sure to supply digital audio signals being locked to
the digital video signal. Otherwise, noise may occur.
4 WORD SYNC OUT (word sync signal output)
connector (BNC type)
Outputs an audio word sync signal.
This signal is available only when a signal is supplied
to the SDI IN connector.
5 SDI OUT (serial digital signal output)
connectors (BNC type)
Output a signal obtained by multiplexing the audio
signals supplied to the AES/EBU IN connectors with
the serial digital video signals supplied to the SDI IN
connector and adding an EDH process to the
multiplexed signal.
Connectors 1 and 2 output the same signal.
