D-Link xStack Storage DSN-1100 Hardware Reference Manual page 38

5. Your hard drive is ready f or inst allat ion. Proceed t o A. 3. 3.
A.3.3 Drive and Tray Installation
A drive/ t ray assembly can be inst alled by insert ing t he drive/ t ray assembly int o t he open
drive bay as shown in Figure A-21. Push t he t ray at t he point indicat ed in St ep 2 of Figure
A-22 and push unt il it is seat ed f irmly wit hin t he bay. As you press, you will see t he t ray
handle begin t o move inwards as t he locking mechanism ent ers t he locking slot . When you
see t his, t hen you must push t he t ray handle inwards as shown in Figure A-23 unt il you hear
t he green locking mechanism click.
38 Appendix A Replacing and Upgrading FRUs

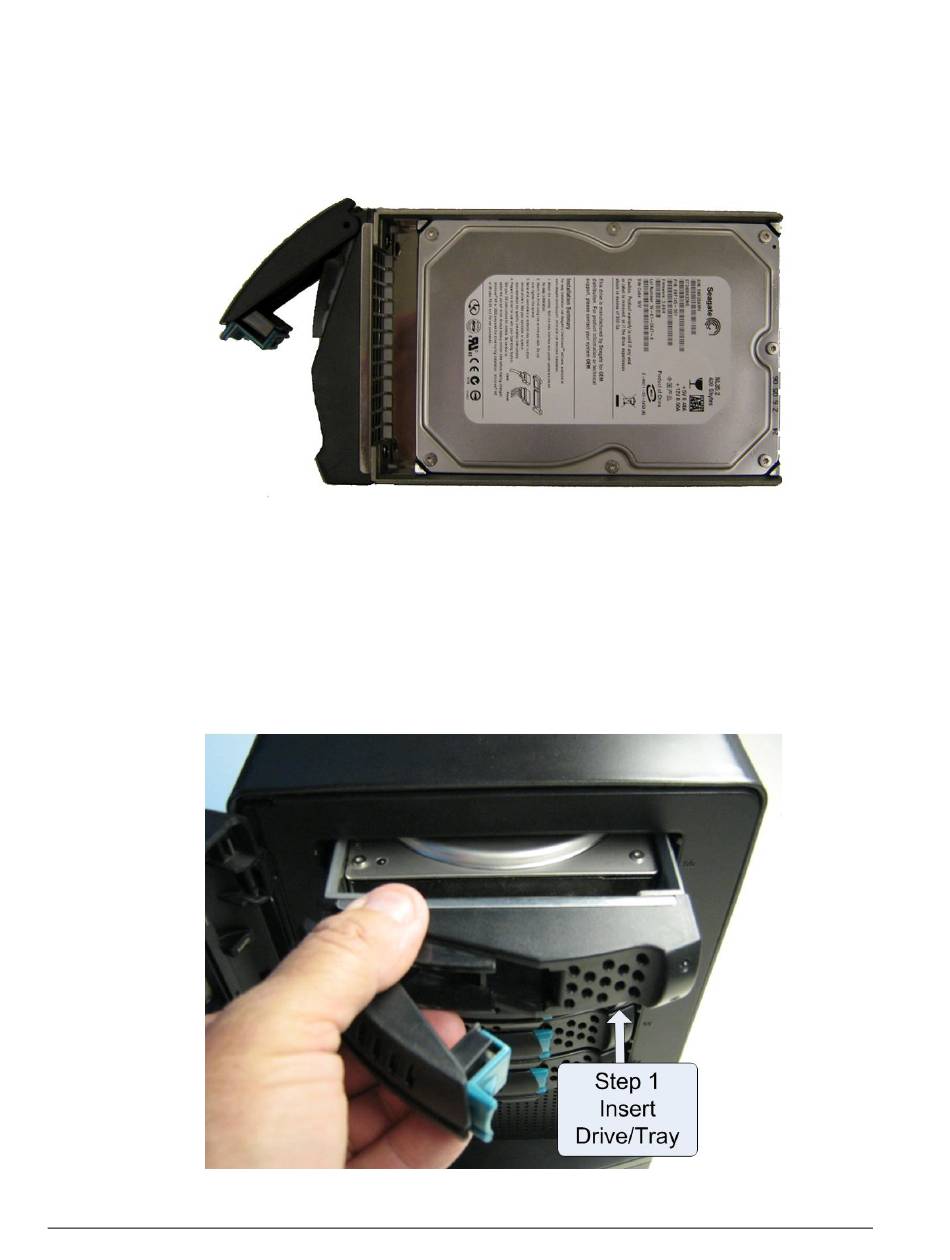

Figure A-21 Drive/Tray Installation
