spexor
Original instructions
English

Advertisement

Table of Contents
loading

Related Manuals for Bosch Spexor

Summary of Contents for Bosch Spexor

  • Page 1 Original instructions English...
  • Page 2 English | 2...

  • Page 3: Table Of Contents

    Contents About this manual  4 Safety  5 Description  11 Commissioning  21 Operation  28 Monitoring  29 Alarm functions  37 Charging the battery  41 Updating  42 Storage  45 Maintenance and service  46 Legal notice  52 English | 3...

  • Page 4: About This Manual

    About this manual Other applicable documents Quick Start Guide from the scope of supply Presentation of information Hazards and instructions are marked as follows in this user manual: – Note – Hazardous situation that may result in damage to property or the environment ▷...

  • Page 5: Safety

    ▷ Carry out all work only according to the complete operating instructions. ▷ Only operate spexor if it is in a technically flawless condition. ▷ These operating instructions and Quick Start Guide must be kept available at all times. Don’t throw either one...
  • Page 6 EN 14604: 2005/AC:2008 nor is it suitable for this purpose. The air quality sensor installed in the spexor is not a calibrated measuring device for high-precision measurements. English | 6...
  • Page 7 Safety Hazards No modifications to the alarm device! Modifications to the alarm device can result in hazardous damage to the battery, short circuit and malfunction. Do not modify the alarm device in any way. Do not open the alarm device. The alarm device does not contain any components that you can maintain or replace.
  • Page 8 Safety Hazardous vapors or liquids! If the device and battery are damaged, vapors or flammable liquids may escape from the battery. The vapors can irritate the respiratory system. Ventilate the area with fresh air and seek medical help in case of complaints. Leaking battery fluid may cause skin irritation or burns.
  • Page 9 Safety Loud alarm signal! If an alarm is triggered, the audio module of the alarm device emits an acoustic signal that is loud enough to damage your hearing. Do not hold the alarm device directly against your ears or those of other people.
  • Page 10 Safety Damaged or entangled charging cable! Damaged or tangled charging cables can result in a short circuit. Do not misuse the charger cable for other purposes, such as carrying or hanging the alarm device or to pull the plug from the electrical socket. Keep the charger cable away from heat, oil, sharp edges, tools and other machines.

  • Page 11: Description

    Description Scope of delivery – Alarm device spexor ▷ Check that all items have been delivered. Do not – Power supply unit use damaged parts. – USB charger cable – Operating instructions – Quick Start Guide with QR code English | 11...

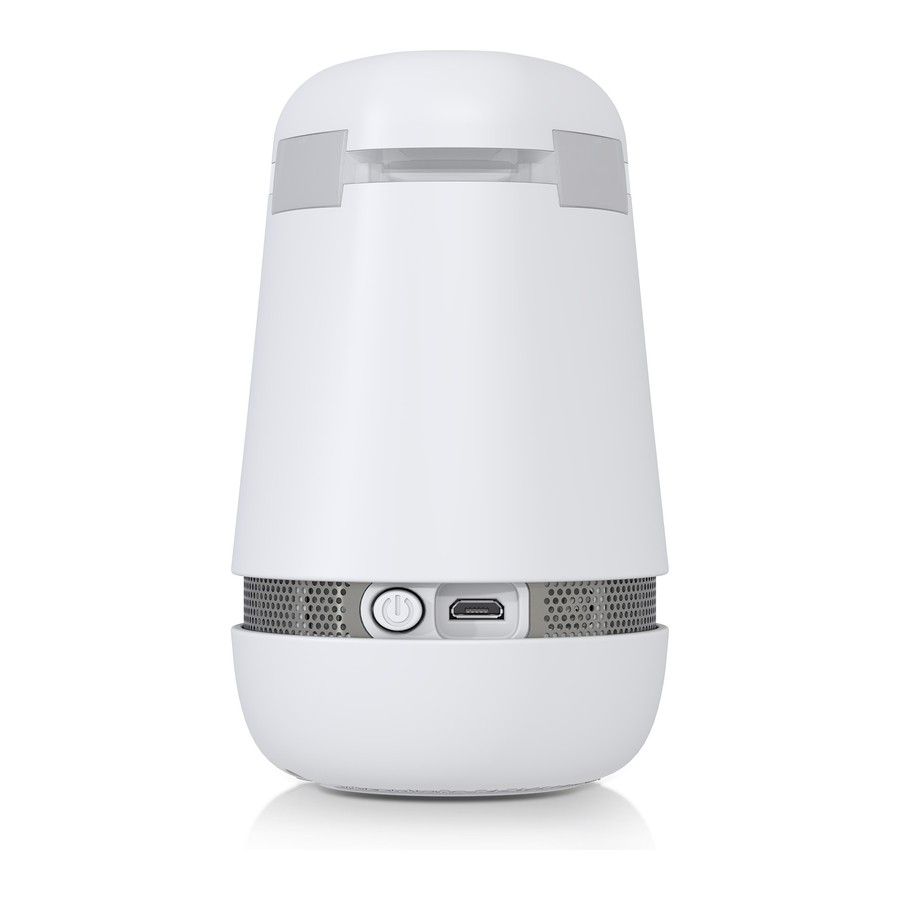

  • Page 12 Description Components Infrared motion sensor LED array bar ON/OFF switch Micro-USB port Sound bar, behind it there are further sensors (e.g. pressure, sound) Keypad with LED English | 12...
  • Page 13 English | 13...
  • Page 14 Bluetooth®. White Short continuous light-up: Switch on at the ON/OFF switch. Short flashes: spexor is still switched on if it is touched or moved while monitoring is deactivated. Short flashes every 30 seconds: spexor is active when monitoring is activated.
  • Page 15 Description Green Six flashes sequentially emitted all around the LED array bar: spexor boots up after switching on. Pulse for 60 seconds: Indicates sensor calibration after monitoring is activated as well as the remaining time to leave the monitored room.
  • Page 16 Description Function spexor is a mobile danger warning device. Its sensors monitor the environment in closed rooms, e.g. at home, in the garage, in the garden shed, in the mobile home or in vehicles with regard to pressure, sound and movement, vibration, air, temperature, brightness, humidity, fire-related gases, hazardous gases (e.g.
  • Page 17 GSM (2G). It can also ascertain its location via GPS data. If you are nearby, spexor establishes a direct connection to your smartphone and the app via Bluetooth®. This is only used during setup, but not for activating or deactivating monitoring or for sending alarm messages via your smart- phone.
  • Page 18 Description No matter where spexor is installed and how far away from your smartphone, it first sends alarm messages via the mobile phone network (with the integrated mobile phone card) to the automated Bosch data processing back-end. From there, the message is forwarded to your smartphone.
  • Page 19 Description Technical Data – Batteries: Lithium ion rechargeable battery pack with 10 Ah, 3.7 V – Charging current: 1.6 A at 5 V – Battery self-discharge: approx. 4% per month – Maximum charging time: 8 h – Supported smartphone operating systems (status 2020): iOS 12.0 or higher, Android 8.0 or higher –...
  • Page 20 Description – Localization: GPS – Sensor detection: up to 5 m radius for motion detection – Audible alarm signal: up to 90 dB(A) – Permissible ambient temperature during operation and storage: –10 … +60 °C – Permissible ambient temperature when charging the batteries: 0 …...

  • Page 21: Commissioning

    Commissioning Installing app and setting up alarm device ▷ Download the free “Bosch spexor” app from the Google Play Store or the Apple App Store. English | 21...
  • Page 22 ▷ The Bosch ID is a central authentication system of Robert Bosch GmbH that is used for many Bosch products or on Bosch Internet pages. It is best to use the Bosch ID user name and password for login. You can also create a new user account via the app.
  • Page 23 ▷ Permanently store for safekeeping the Quick Start Guide containing the QR code. Don’t throw it away – you need the QR code if you want to set up spexor again or pass it on to someone else. ▷ Activate Bluetooth® and set up WLAN access.
  • Page 24 An acoustic signal confirms the switch-on. After switching on, the LEDs light up white briefly. While spexor boots up, they light up green six times. English | 24...
  • Page 25 0 °C and +40 °C. ▷ Use the USB cable to connect the Micro-USB port of spexor to the power supply unit. ▷ Connect the power supply unit to the mains power. The LEDs flash white three times sequentially around the LED array bar thereby indicating the power supply unit has been detected and the charging process has begun.
  • Page 26 ▷ Start the app. ▷ Log in with your e-mail address and password. If you have forgotten your password, you can reset it in the app. ▷ You can now use the app to operate and configure spexor. English | 26...
  • Page 27 Commissioning Adding alarm devices You can also control multiple alarm devices with your smart- phone. There is no limit to how many. You can add more alarm devices in the app. To do this, the alarm device to be added must be turned on and the app must be running. ▷...

  • Page 28: Operation

    Operation The spexor app is the communication interface for your alarm device. You can use it to monitor different states of the alarm device everywhere, such as the battery charge. You can also manage your user account information, activate or deactivate monitoring or the alarm function, add more alarm devices, use help topics, or book additional features or services later.

  • Page 29: Monitoring

    Monitoring Placing it where you want to monitor – Note – Risk of damage! The alarm device is not protected against moisture and water. Penetrating water or moisture can damage or destroy the alarm device. Keep the alarm device away from water or other liquids. –...
  • Page 30 ▷ Note the operating temperature range; see “Technical Data” on page 20. ▷ Only place spexor in closed rooms, e.g. inside a house or apartment, in a car, mobile home, garage, garden shed, etc. Close the windows. ▷ Only place spexor in dry places. Do not place spexor outdoors, e.g.
  • Page 31 Avoid closed or partially closed installation locations such as on a shelf between books, behind cabinet doors, in a cup holder or in the glove compartment. ▷ You can find further installation instructions on www.spexor-bosch.com. English | 31...
  • Page 32 People or animals on the other side of glass panes are not detected by the intrusion sensors. ▷ Position spexor in such a way that pets cannot be detected. English | 32...
  • Page 33 After activating monitoring, the LEDs pulsate green for 60 seconds. This indicates calibration of the sensors and signals the remaining time to leave the room to be monitored. After this, spexor monitors the environment and can trigger an alarm. English | 33...
  • Page 34 Monitoring ▷ If you forget to activate spexor by double-tapping on the top of the housing, then you can also activate spexor re- motely via the app. Activation via mobile phone or WLAN requires some time for data communication: a maximum of 15 minutes during battery operation and 5 minutes during the charging process.
  • Page 35 Monitoring At this point, you can also select various settings in the app. For example, you can define how spexor reacts in case of an alarm: whether spexor should emit an acoustic alarm and possibly scare off burglars – or – only send the alarm message to you discreetly.
  • Page 36 A descending tone sequence confirms that monitoring has been deactivated. ▷ If you want to check if spexor is still switched on when monitoring is deactivated, just touch it or move it a little. The LEDs flash white briefly if it is still switched on.

  • Page 37: Alarm Functions

    The message is sent to your smartphone only after the alarm message from spexor has been received by the automated Bosch data processing back-end.
  • Page 38 It connects you to the emergency call center in the country where you are. If you are abroad and your spexor is monitoring your home, ask neighbors or friends to call the police in case of an alarm.
  • Page 39 If you enter the wrong device code, two short, descending signal tones will be emitted. spexor will also deactivate both monitoring as well as the alarm if you have deactivated the alarm yourself or notified the emergency call center. If you want the alarm device to continue to monitor for you, then you must reactivate the monitoring.
  • Page 40 Alarm functions Book additional functions ▷ You can extend the application areas of your spexor with additional paid functions or services in the app. ▷ The app provides you with an overview of the options you have booked. You can also use the app to cancel booked functions.

  • Page 41: Charging The Battery

    Charging the battery You can remotely check the spexor’s battery charge status via the app. ▷ To start the charging process, see “Charging the battery” on page 25. ▷ Monitoring and alarm functions also work while spexor is charging. English | 41...

  • Page 42: Updating

    LEDs light up red and three short, falling signal tones confirm the deactivation. In some cases, restarting may cause settings to be lost. ▷ Switch spexor on again at the ON/OFF switch. An acoustic signal confirms that the device has been switched on.
  • Page 43 ▷ Deactivate monitoring; see “Deactivate monitoring” on page 36. ▷ Use the USB cable to connect spexor’s Micro-USB port to the power supply unit. Then plug the power supply unit into the mains power.
  • Page 44 Updating A current version of the operating instructions – which describes all functions added by the device update – can be downloaded at www.spexor-bosch.com. Updating the app If an app update is available, you will automatically receive a message on your smartphone.

  • Page 45: Storage

    Storage ▷ If you do not need spexor, switch it off at the ON/OFF switch. Three short, falling signal tones confirm that the device is switching off. After switching off, the LEDs light up red briefly. ▷ Note the storage temperature range; see “Technical Data”...

  • Page 46: Maintenance And Service

    The alarm device does not contain any components that you can maintain or replace. ▷ If your device does not function as described or if your spexor is damaged, please contact customer service; see page 48. English | 46...
  • Page 47 Maintenance and service Cleaning – Note – Risk of damage! Penetrating water or chemicals can damage or destroy the alarm device. Do not use either water or chemicals to clean the alarm device. ▷ It is best to use a soft, clean, dry and lint-free cloth to clean the alarm device, cable and power supply unit.
  • Page 48 Maintenance and service Customer Service The spexor customer service will be happy to help you with all questions regarding the device and the app or if your device does not work as described, is damaged or needs to be disposed of.
  • Page 49 Maintenance and service Transfer of device ▷ Before passing on your spexor, delete all individual data from the alarm device by selecting “Delete device” in the app under “Device settings”. You do not need to uninstall the app. ▷ Hand over the alarm device with the complete scope of delivery;...
  • Page 50 Maintenance and service Disposal ▷ Before disposing of your spexor, delete all individual data from the alarm device by selecting “Delete device“ in the app under “Device settings“. You do not need to uninstall the app. ▷ Do not throw the alarm device with the built-in battery in the household waste! ▷...
  • Page 51 Maintenance and service According to the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), electrical and electronic equipment which is no longer fit for use and, in accordance with Directive 2006/66/EC, defective or used batteries must be collected separately and sent for environmentally sound recycling.

  • Page 52: Legal Notice

    Legal notice EU Conformity Hereby grow platform GmbH declares that the radio sys- tem type spexor complies with the Directive 2014/53/EU. The complete text of the EU Declaration of Conformity is available for download at www.spexor-bosch.com. License The Bluetooth® word mark and logos are registered trade- marks of Bluetooth SIG, Inc.
  • Page 54 grow platform GmbH Product Area “Portable Security” (GROW/PAU) Grönerstraße 9 71636 Ludwigsburg, Germany 2020.05 – EN – F.01U.385.655 V01...
