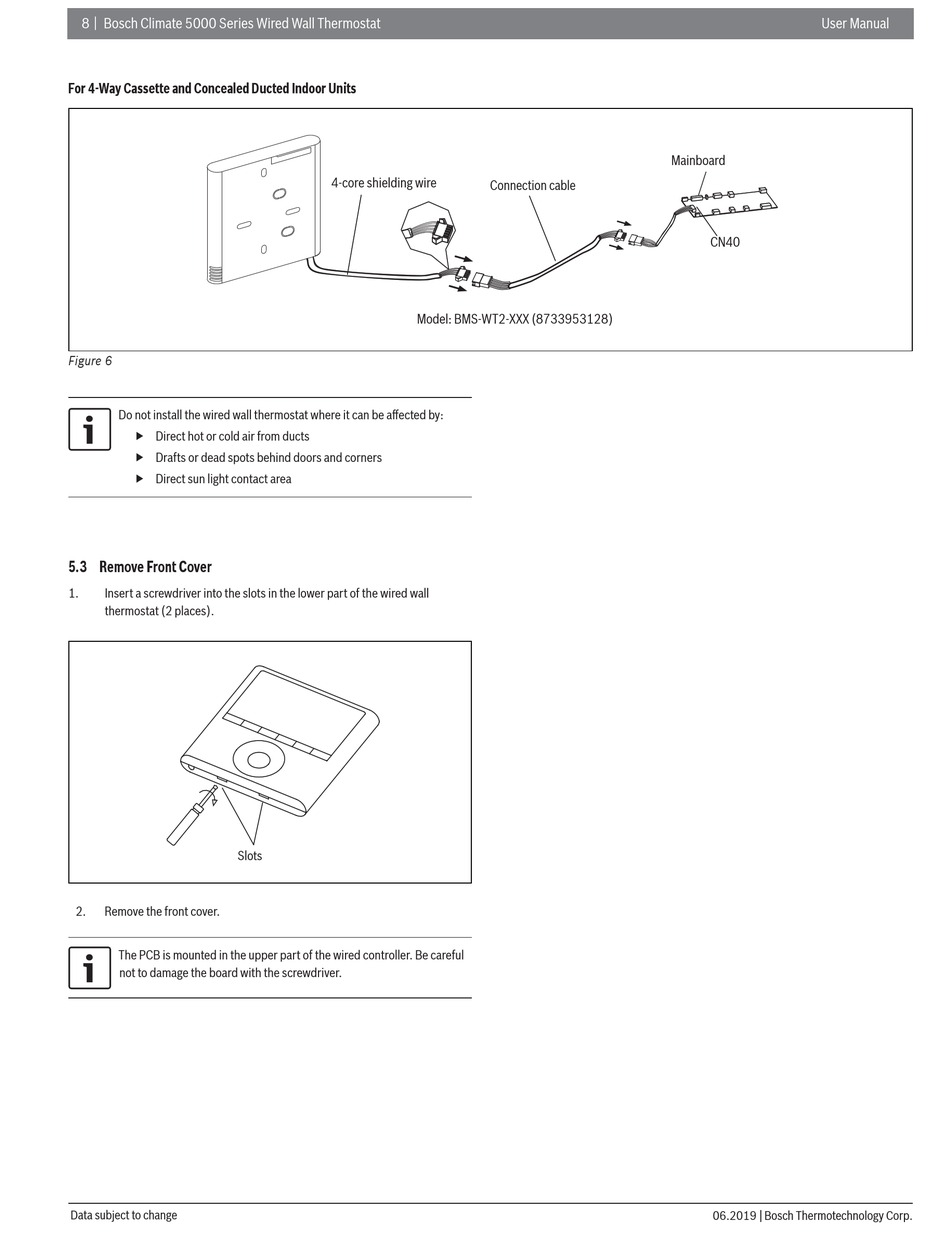

8 | Bosch Climate 5000 Series Wired Wall Thermostat
For 4-Way Cassette and Concealed Ducted Indoor Units
Figure 6
Do not install the wired wall thermostat where it can be aff ected by:
 Direct hot or cold air from ducts
 Drafts or dead spots behind doors and corners
 Direct sun light contact area
5.3 Remove Front Cover
1. Insert a screwdriver into the slots in the lower part of the wired wall
thermostat (2 places).
Slots
2. Remove the front cover.
The PCB is mounted in the upper part of the wired controller. Be careful
not to damage the board with the screwdriver.
Data subject to change
4-core shielding wire
Connection cable
Model: BMS-WT2-XXX (8733953128)
User Manual
Mainboard
CN40
06.2019 | Bosch Thermotechnology Corp.
