User Manual

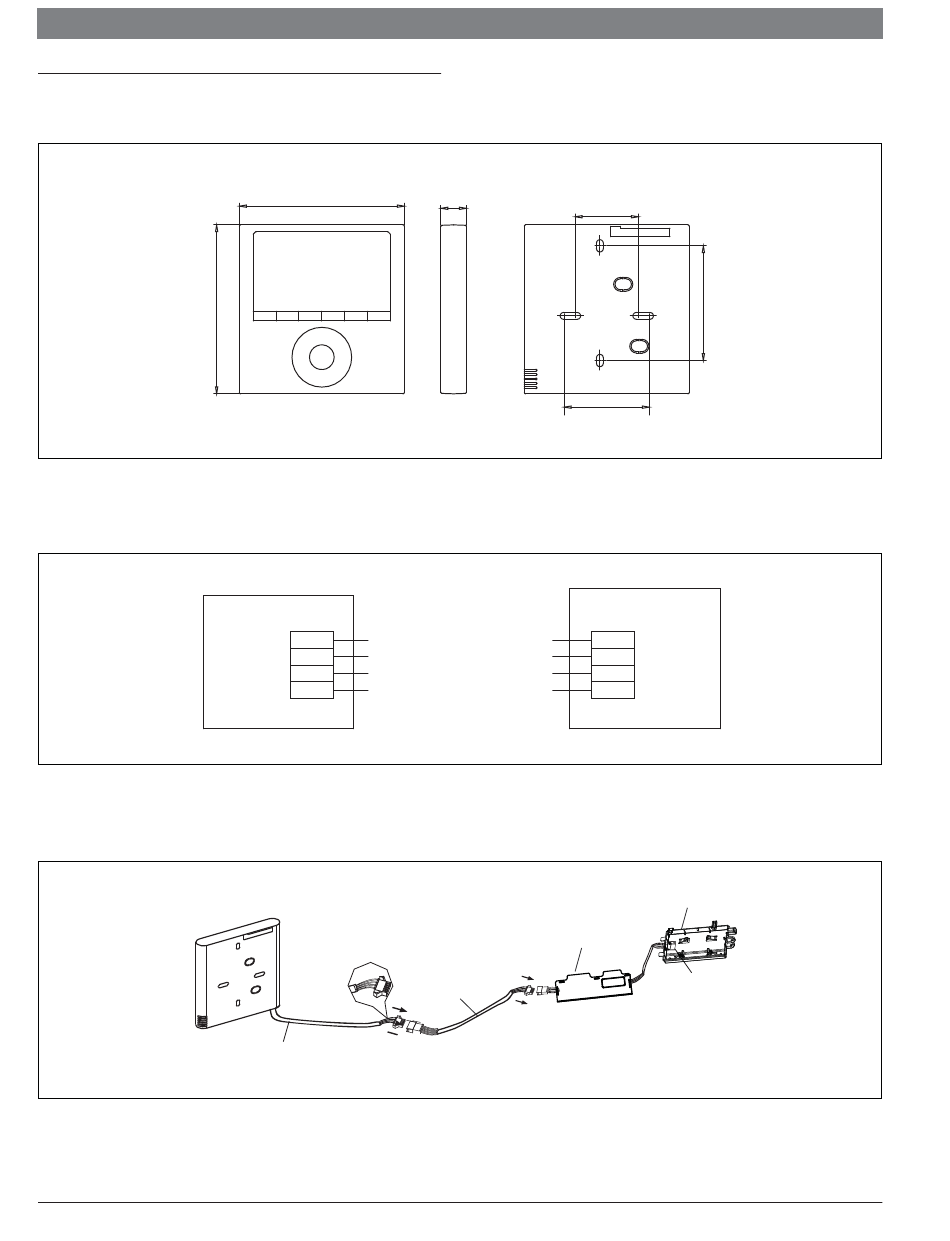

5 Installation

5.1 Dimensions

4.8in
(123mm)
Figure 3

5.2 Wiring

Figure 4
For Wall Mounted Indoor Units
Install the Adapter Board and the Display Board on the Wall Mounted indoor unit.
Figure 5
Bosch Thermotechnology Corp. | 06.2019
4.7in (120mm)
-----------------------------------
red
-----------------------------------
black
yellow -----------------------------------
-----------------------------------
brown
4-Core Shielded Cable
Wire controller
The length is decided by installation
4-core shielding wire
Model: BMS-WT1-XXX (8733953127)
Bosch Climate 5000 Series Wired Wall Thermostat | 7
0.7in
1.8in
(18.5mm)
(46mm)
2.4in (62mm)
Insert of the
mainboard CN40
red
black
yellow
brown
Indoor unit mainboard
Adapter board
The connection
cable
3.3in
(83.5mm)
Display board
CN101
Data subject to change
