Sony CCP-8000 Operation Manual

Center control panel pack
Hide thumbs Also See for CCP-8000:
Table of Contents

Advertisement

Quick Links

Download this manual
CENTER CONTROL PANEL PACK
CCP-8000
MKS-8010/8010A
MKS-8015/8015B
MKS-8020
MKS-8024
MKS-8028
MKS-8032
MKS-8035
MKS-8076
OPERATION MANUAL
1st Edition (Revised 7)
MKS-8011
MKS-8017/8017B
MKS-8021
MKS-8025/8025MS
MKS-8030
MKS-8033
MKS-8040
HK-PSU02
MKS-8013/8013B
MKS-8018/8018B
MKS-8022
MKS-8026
MKS-8031JS
MKS-8034DK
MKS-8041
[English]
MKS-8014/8014B
MKS-8019/8019B
MKS-8023
MKS-8027
MKS-8031TB
MKS-8034FB
MKS-8075

Advertisement

Table of Contents
loading

Related Manuals for Sony CCP-8000

Summary of Contents for Sony CCP-8000

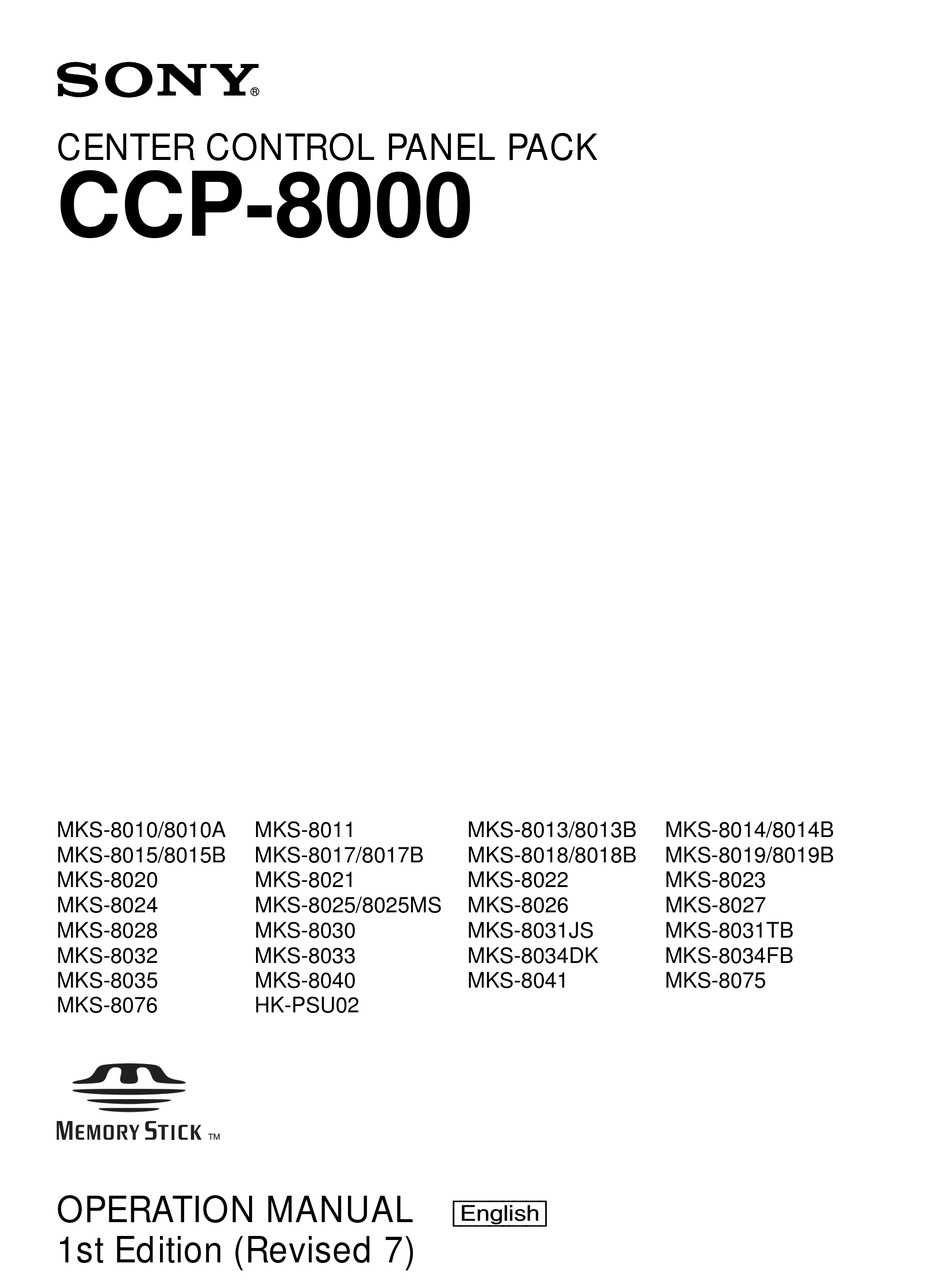

  • Page 1 CENTER CONTROL PANEL PACK CCP-8000 MKS-8010/8010A MKS-8011 MKS-8013/8013B MKS-8014/8014B MKS-8015/8015B MKS-8017/8017B MKS-8018/8018B MKS-8019/8019B MKS-8020 MKS-8021 MKS-8022 MKS-8023 MKS-8024 MKS-8025/8025MS MKS-8026 MKS-8027 MKS-8028 MKS-8030 MKS-8031JS MKS-8031TB MKS-8032 MKS-8033 MKS-8034DK MKS-8034FB MKS-8035 MKS-8040 MKS-8041 MKS-8075 MKS-8076 HK-PSU02 OPERATION MANUAL [English] 1st Edition (Revised 7)
  • Page 2 Plug Cap Parallel blade with ground pin WARNING (NEMA 5-15P Configuration) Cord Type SJT, three 16 or 18 AWG wires To prevent fire or shock hazard, do not Length Minimum 1.5 m (5 ft), Less than 2.5 m (8 ft expose the unit to rain or moisture.
  • Page 3 CET APPAREIL DOIT ÊTRE RELIÉ À LA This product is intended for use in the following Electromagnetic Environment: E4 (controlled EMC TERRE. environment, ex. TV studio). For the customers in Europe (MKS-8010/8010A only) Für Kunden in Europa (nur MKS-8011/8013/8013B/8014/ This product with the CE marking complies with both the EMC 8014B/8015/8015B/8017/8017B/8018/8018B/8019/8019B/ Directive (89/336/EEC) and the Low Voltage Directive (73/23/ 8020/8021/8022/8023/8024/8025/8025MS/8026/8027/8028/...
  • Page 4 Periodic inspections To guarantee safe long-term operation, periodic inspections are recommended. Please contact your Sony representative for detailed information about the content and cost of periodic inspections. Voor de Klanten in Nederland (alleen voor de MKS-8010/...

  • Page 5: Table Of Contents

    Table of Contents Overview ................7 Features..................7 Units and Modules ..............7 Optional Accessories ..............9 Location and Function of Parts......... 10 MKS-8010/8010A Front Panel..........10 MKS-8010/8010A Rear Panel..........11 MKS-8011 Menu Panel ............14 Main Panel ................14 AUX Panel................15 MKS-8025MS Memory Stick/USB Module ......
  • Page 6 MKS-8014/8014B 24 AUX Bus Module ........ 29 MKS-8015/8015B 16 AUX Bus Module ........ 29 MKS-8017/8017B 32 XPT Module......... 29 MKS-8018/8018B 24 XPT Module......... 29 MKS-8019/8019B 16 XPT Module......... 29 MKS-8020 Standard Transition Module ......... 29 MKS-8021 Simple Transition Right Module ......29 MKS-8022 Simple Transition Left Module ......

  • Page 7: Overview

    Powerful external device control editing systems. The center control panel can control devices such as Sony “Center control panel” refers to the control panel as a routing switchers and IF processors. Control of devices whole, which is comprised of the following three elements.
  • Page 8 MKS-8018/8018B 24 XPT Module MKS-8028 Compact Transition Left Module An M/E or PGM/PST bank cross-point module with 24 Identical to the MKS-8027, but with the fader lever on the crosspoint buttons. left side. The 8018B does not have a source name display panel. MKS-8030 Key Frame Module MKS-8019/8019B 16 XPT Module A module for key frame operations.

  • Page 9: Optional Accessories

    MKS-8076 Memory Card/USB Adaptor An adaptor that allows the MKS-8025 to be installed apart from the main panel. HK-PSU02 Power Supply Unit (on MKS- 8010A) A backup power supply unit. The MKS-8010A is supplied standard with one power unit. Installing an HK-PSU02 gives two power units.

  • Page 10: Location And Function Of Parts

    Turn and powered off when the POWER switches are on the the POWER switch off and contact your Sony service “a” side. The status indicators light in green when the unit representative.

  • Page 11: Mks-8010/8010A Rear Panel

    MKS-8010/8010A Rear Panel MKS-8010 4GPI connector 1REMOTE connector 5LTC IN connector 6 - AC IN A and B 3 EXT PANEL 1 to 3 2REF IN connectors connectors connectors EXT PANEL1 EXT PANEL2 EXT PANEL3 REF IN REMOTE CTRL PERIPH MENU PANEL MAIN PANEL LTC IN...
  • Page 12 An S-BUS data link is a single signaling circuit (S-BUS) to which multiple devices can be connected to exchange Caution data. For information about installing, contact your Sony Connecting devices such as HDS-X3000 series routing service representative. switchers and remote panels to an S-BUS data link enables the following kinds of control.
  • Page 13 m CTRL (control) connector (RJ-45) Connect to an Ethernet switch. The MVS-8400/8300/8200 Switcher Processor Pack, the MVE-8000 DME Processor Pack and other devices are connected in the same way to the Ethernet switch to form a network for exchange of signals between the devices. This network is used primarily to control the various devices from the center control panel.

  • Page 14: Mks-8011 Menu Panel

    HOST 1SCU connector 2HOST connector 3DEVICE connectors a SCU (system control unit) connector (D-sub 50-pin, For connectable devices, contact your Sony service special interface) representative. Connect to the MAIN PANEL connector of the MKS- 8010/8010A System Control Unit. b HOST connector (USB Type B) Connect to the DEVICE connector of the MKS-8010/ 8010A System Control Unit.

  • Page 15: Aux Panel

    Connect to external devices with USB connectors. Connect to one of the EXT PANEL 1 to 3 connectors of the MKS-8010/8010A System Control Unit. For connectable devices, contact your Sony service representative. b HOST connector (USB Type B) Connect to the DEVICE connector of the MKS-8010/ 8010A System Control Unit.

  • Page 16: Mks-8075 Extension Adaptor

    DEVICE connectors (USB Type A) For connectable devices, contact your Sony service Connect to external devices with USB connectors. representative. MKS-8075 Extension Adaptor 1SCU IN connector 2SCU OUT connector a SCU IN (system control unit input) connector b SCU OUT (system control unit output) connector...

  • Page 17: Example System Configuration

    Example System Configuration MVS-8000 System Configuration (MKS-8010) Reference video signal Ethernet switch Ethernet switch DATA LAN CTRL EDITOR MVE-8000 DME Processor Pack BVE-9100 Editing Control System Reference video signal CTRL DATA CTRL REMOTE 1 PERIPH MKS-8010 System REMOTE DATA Reference video Control Unit signal BKS-R Series...

  • Page 18: Mvs-8000 System Configuration (Mks-8010A)

    MVS-8000 System Configuration (MKS-8010A) Reference video signal Ethernet switch Ethernet switch DATA LAN CTRL EDITOR MVE-8000 DME Processor Pack BVE-9100 Editing Control System Reference video signal DATA CTRL REMOTE 1 CTRL PERIPH DATA REMOTE MKS-8010A System Control Unit Reference video signal BKS-R Series HDS-X Series...

  • Page 19: Center Control Panel Connection (Mks-8010)

    Center Control Panel Connection (MKS-8010) AUX Panel MKS-8075 Extension Adaptor SCU IN HOST SCU OUT SCU IN Reference video signal EXT PANEL 2 DEVICE EXT PANEL 3 SCU OUT SCU IN MKS-8010 System Control Unit MAIN PANEL DEVICE MENU PANEL 100 to 240 V AC power supply HOST MKS-8011 Menu...

  • Page 20: Center Control Panel Connection (Mks-8010A)

    Center Control Panel Connection (MKS-8010A) MKS-8076 Memory Card/ AUX Panel Main Panel USB Adaptor HOST HOST HOST MKS-8075 Extension Adaptor SCU IN EXT PANEL 3 DEVICE MAIN PANEL EXT PANEL 2 SCU OUT SCU IN MKS-8010A MENU PANEL System Control Unit Reference video signal 100 to 240 V AC power supply SCU OUT...

  • Page 21: Exchanging Button Labels

    DEVICE connectors of a module to operate the MKS-8025/8025MS. Replace the button in its original location. Contact your Sony service representative for more information about connectable devices. Note To make connections to the EXT PANEL 1, 2 and 3...

  • Page 22: Adjusting Fader Torque

    Adjusting Fader Torque Power Supply Unit Status Indicators You can adjust faders without removing them from the center control panel or operation modules. The power supply unit status indicators show the status of Proceed as follows to adjust faders. the power supply unit during operation and when the unit is powered on.

  • Page 23: Maintenance

    Maintenance About a “Memory Stick” Clean the menu display screen (touch screen) with a soft What Is “Memory Stick”? cloth lightly moistened with ethanol. Be sure to wipe only the dirty places lightly, taking care “Memory Stick” is a new compact, portable and versatile not to spread the dirt.

  • Page 24: Available Types Of "Memory Stick

    • “Memory Stick” (with memory select Before Using a “Memory Stick” function) Equipped with the multiple memories (128 MB). You can select the memory to use with the memory selects switch Terminal on the back of the “Memory Stick.” You cannot use different memories simultaneously or continuously.

  • Page 25: Caution When Formatting "Memory Stick" On A Personal Computer

    Precautions • To prevent data loss, make backups of data frequently. In no event will Sony be liable for any loss of data. • Unauthorized recording may be contrary to the provisions of copyright law.

  • Page 26: Specifications

    Operating temperature Specifications 5ºC to 40ºC (41ºF to 104ºF) Performance temperature 10ºC to 35ºC (50ºF to 95ºF) Storage temperature The following specifications show the reference −20ºC to +60ºC (−4ºF to +140ºF) performance for this unit and individual option boards/ Operating humidity modules.

  • Page 27: Aux Panel

    Reference input AUX panel REF IN BNC type, 75Ω, with loop-through output AUX panel specifications vary according to the system HDTV systems: configuration. The following shows specifications for HD tri-level sync/SDTV analog black typical configurations. burst/SDTV analog sync SDTV systems: General Analog black burst/analog sync Dimensions*(w/h/d)

  • Page 28: Mks-8010A System Control Unit

    Relay contact outputs: 4 (30V AC/DC, MKS-8010A System Control Unit 0.1 A) Open collector outputs: 4 LTC IN BNC type, 75Ω General EDITOR PANEL Power requirements D-sub 15-pin, female 100 to 240 V AC, 50/60 Hz Complies with RS-422A standard Current consumption Data transfer rate: 38.4 Kbps 100 V: 3.3 A, 240 V: 1.4 A...

  • Page 29: Mks-8013/8013B 32 Aux Bus Module

    Accessories supplied MKS-8013/8013B 32 AUX Bus Operation and Installation Guide (1) Module (supplied only when product is purchased separately) Power requirements 12 V DC MKS-8018/8018B 24 XPT Module Power consumption Max. 3 A Power requirements Dimensions (w/d, excluding projections) 12 V DC 740×132 mm (29 ×5 inches)

  • Page 30: Mks-8022 Simple Transition Left Module

    Max. 1 A MKS-8025 Memory Card/USB Dimensions (w/d, excluding projections) Module 293×132 mm (11 ×5 inches) Mass Approx. 1.0 kg (2 lb 3 oz) Accessories supplied General Operation and Installation Guide (1) (supplied only when product is Power requirements purchased separately) 5 V DC Power consumption Max.

  • Page 31: Mks-8026 10 Key Pad Module

    Operation and Installation Guide (1) MKS-8026 10 Key Pad Module (supplied only when product is purchased separately) Power requirements 12 V DC MKS-8031JS Joystick Module Power consumption Max. 1 A Dimensions (w/d, excluding projections) Power requirements 220×132 mm (8 ×5 inches) 12V DC Mass...

  • Page 32: Mks-8034Dk Dsk/Ftb Module

    Accessories supplied Mass Approx. 0.4 kg (14 oz) Operation and Installation Guide (1) Accessories supplied (supplied only when product is Operation and Installation Guide (1) purchased separately) (supplied only when product is purchased separately) MKS-8034DK DSK/FTB Module MKS-8041 Blank Panel (1/2) Power requirements 12 V DC Power requirements...

  • Page 33: Mks-8076 Memory Card/Usb Adaptor

    MKS-8076 Memory Card/USB HK-PSU02 Power Supply Unit Adaptor Operating temperature +5°C to +40°C (+41°F to +104°F) Storage temperature General –20°C to +60°C (–4°F to +140°F) Power requirements Operating humidity 5 V DC 10 % to 90 % (no moisture condensation) Power consumption Dimensions (w/h/d, excluding projections) Max.
  • Page 34 Specifications...
  • Page 35 The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the purchasers of the equipment described in this manual. Sony Corporation expressly prohibits the duplication of any...
  • Page 36 Sony Corporation B & P Company CCP-8000 Printed in Japan (WW) 2004.01.13 3-206-011-08 (1) © 2001 Printed on recycled paper...
