16 en | Functional Description

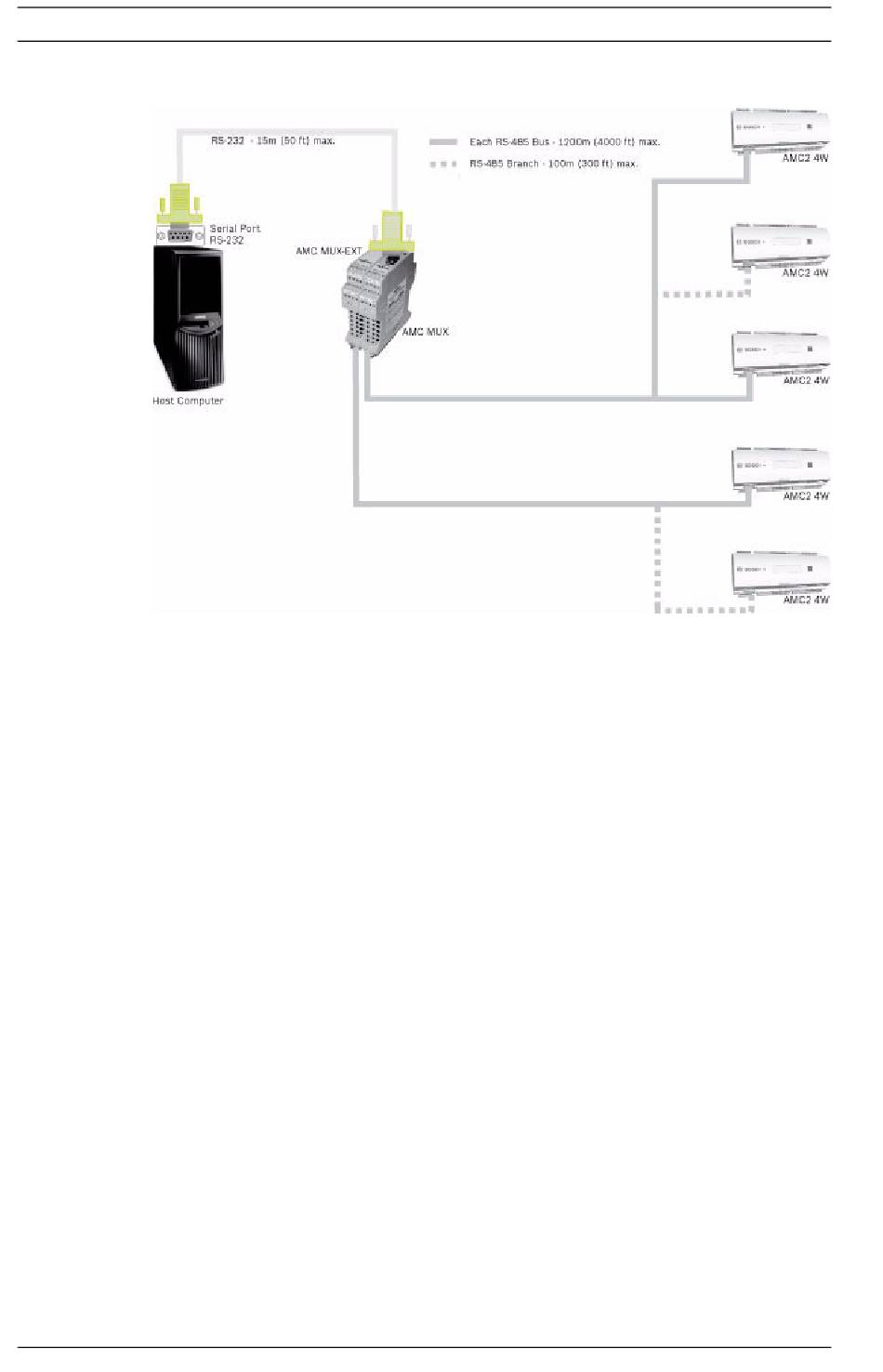

Fig. 4.3 Host Communication to AMC MUX/AMC MUX-EXT
The following conditions apply to RS-485 Bus:
–
–
–
–
–
F.01U.012.855 | V.3 | 2006.08
Maximum of eight AMC2 4W per RS-232 to RS-485 multi-
plexer connection.
AMC MUX multiplexer converts RS-232 to RS-485 for up to
1200m (4000 ft) wire runs to AMC2 4W controllers.
Each additional AMC MUX-EXT plugged into allows for an
additional 1200m (4000 ft) bus extension.
Up to seven AMC MUX-EXT can be plugged to an AMC MUX.
RS-485 branches from bus to AMC2 4W allowed up to
100m (300 ft).
Installation manual
AMC MUX and AMC MUX-EXT
Bosch Security Systems
