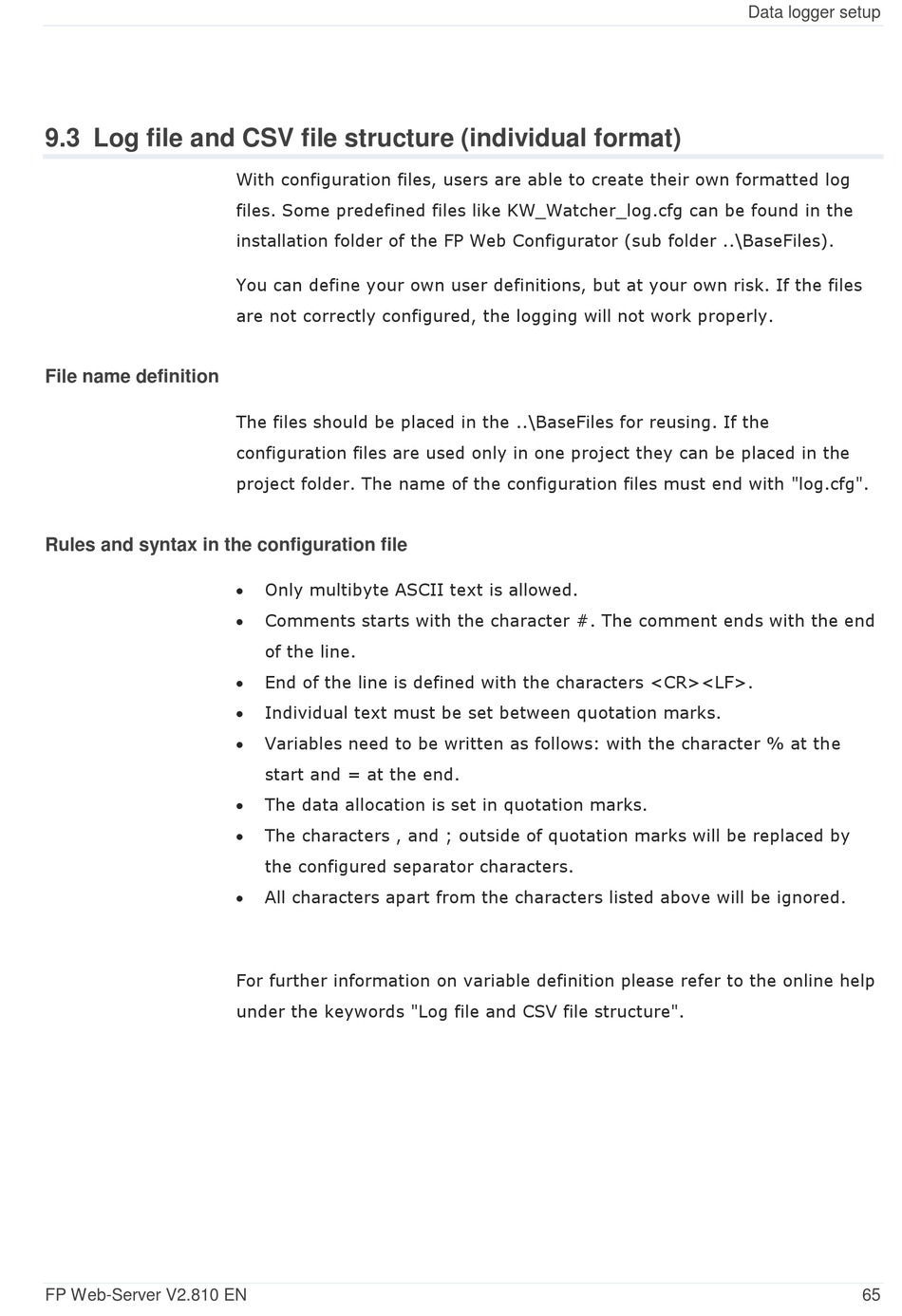

9.3 Log file and CSV file structure (individual format)

File name definition
Rules and syntax in the configuration file
FP Web-Server V2.810 EN
With configuration files, users are able to create their own formatted log
files. Some predefined files like KW_Watcher_log.cfg can be found in the
installation folder of the FP Web Configurator (sub folder ..\BaseFiles).
You can define your own user definitions, but at your own risk. If the files
are not correctly configured, the logging will not work properly.
The files should be placed in the ..\BaseFiles for reusing. If the
configuration files are used only in one project they can be placed in the
project folder. The name of the configuration files must end with "log.cfg".
 Only multibyte ASCII text is allowed.
 Comments starts with the character #. The comment ends with the end
of the line.
 End of the line is defined with the characters <CR><LF>.
 Individual text must be set between quotation marks.
 Variables need to be written as follows: with the character % at the
start and = at the end.
 The data allocation is set in quotation marks.
 The characters , and ; outside of quotation marks will be replaced by
the configured separator characters.
 All characters apart from the characters listed above will be ignored.
For further information on variable definition please refer to the online help
under the keywords "Log file and CSV file structure".
Data logger setup
65
