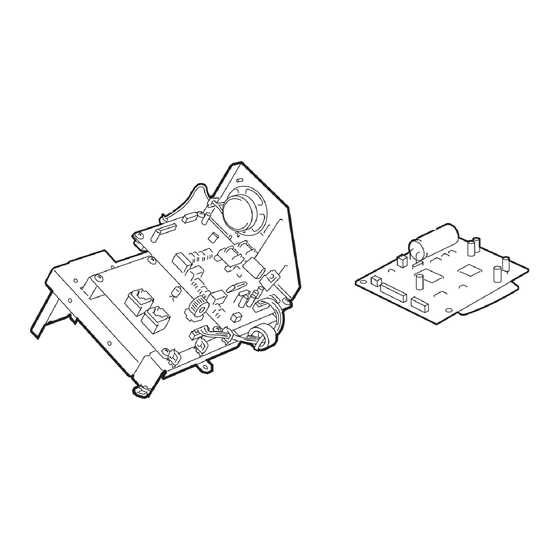

Canon Super G3 FAX Board-T1 Installation Procedure

Fax board
Hide thumbs Also See for Super G3 FAX Board-T1:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation Procedure
FAX Board
Super G3 FAX Board-T1
Sep 14 2005

Advertisement

Table of Contents
loading

Related Manuals for Canon Super G3 FAX Board-T1

Summary of Contents for Canon Super G3 FAX Board-T1

  • Page 1 Installation Procedure FAX Board Super G3 FAX Board-T1 Sep 14 2005...
  • Page 3 Canon will release technical information as the need arises. In the event of major changes in the contents of this manual over a long or short period, Canon will issue a new edition of this manual. The following paragraph does not apply to any countries where such provisions are inconsistent with local law.
  • Page 4 Introduction Symbols Used This documentation uses the following symbols to indicate special information: Symbol Description Indicates an item of a non-specific nature, possibly classified as Note, Caution, or Warning. Indicates an item requiring care to avoid electric shocks. Indicates an item requiring care to avoid combustion (fire). Indicates an item prohibiting disassembly to avoid electric shocks or problems.
  • Page 5 Introduction The following rules apply throughout this Service Manual: 1. Each chapter contains sections explaining the purpose of specific functions and the rela- tionship between electrical and mechanical systems with reference to the timing of operation. 　In the diagrams, represents the path of mechanical drive; where a signal name accom- panies the symbol , the arrow indicates the direction of the electric signal.

  • Page 7: Table Of Contents

    Contents Contents Chapter 1 Installation Procedure 1.1 Unpacking and Checking the Components ....................2 1.1.1Checking the Contents..........................2 1.2 Installation Procedure ............................4 1.2.1Installation Procedure ..........................4 1.2.2Mounting the Full State Sensor Unit......................8 1.2.3After the Work ............................... 9 1.2.4Mounting the Stamp ........................... 10 1.2.5Attaching the Fax Approval label ......................
  • Page 8 Contents...

  • Page 9: Chapter 1 Installation Procedure

    Chapter 1 Installation Procedure...

  • Page 10: Unpacking And Checking The Components

    Chapter 1　 1.1 Unpacking and Checking the Components 1.1.1 Checking the Contents 0010-7348 In addition to this unit, you will need a fax panel unit (Fax Panel-A1) to enable the iR machine's fax functions. MEMO: If the machine is already equipped with an optional Inner 2-Way Tray-E1, you may skip the steps given for the mounting of the full state sensor unit.
  • Page 11 Chapter 1 Full state sensor unit 1 pc. Edge saddle (black) 1 pc. LAN cover 1 pc. Wire saddle (white) 2 pc. NCU-PSU cable 1 pc. Stamp ink cartridge 1 pc. Modem-NCU cable 1 pc. Screw (M3X8) 10 pc. IP-Modem cable 1 pc.

  • Page 12: Installation Procedure

    Chapter 1　 1.2 Installation Procedure 1.2.1 Installation Proce- dure 0010-7394 1) Turn off the main power switch, and disconnect the power plug from the power outlet. 2) Remove the machine's rear cover [1]. - 2 screws [2] F-1-4 4) Mount the modem PCB [1]. - 1 connector [2].
  • Page 13 Chapter 1 F-1-8 8) Fit the modem-NCU FFC [1] in place. F-1-6 - 2 connectors [2]. 9) Connect the modem-NCU cable [3]. 6) Fit the IP modem cable [1] in place. - 2 connectors [4] - 2 connectors [2] 10) Connect the harness [5] of the speaker. - 1 edge saddle [3] - 1 connector [6] F-1-7...
  • Page 14 Chapter 1　 F-1-12 F-1-10 13) Detach the lower cover [1] while shifting it in the direction of the arrow. - 5 screws [2] 14) Remove the upper right cover [3]. When mounting the LAN cover [1], be sure to take - 1 screw [4] care not to break the grounding plate [3] by the LAN port [2].
  • Page 15 Chapter 1 F-1-14 16) Remove the drum unit. F-1-16 Cover the drum unit with several sheets of copy paper 19) Connect the NCU-PSU cable [1] (on the NCU to protect it from light; then, place it in a safe place. PCB side).

  • Page 16: 2Mounting The Full State Sensor Unit

    Chapter 1　 - 2 screws [3] F-1-20 2) Remove the upper delivery cover [1]. F-1-18 - 1 screw [2] 3) Remove the rear cover [3]. 21) Connect the NCU-PSU cable [1] (on the power - 1 screw [4] supply side). - 1 connector [1] - 1 wire saddle (white) [2] F-1-21...

  • Page 17: 3After The Work

    Chapter 1 1.2.3 After the Work 0010-7395 1) Cut of the area [2] of the rear cover [1] as shown us- ing nippers. F-1-22 F-1-25 5) Route the harness [1] of the full state sensor unit through the harness guide [2]. 2) Cut of the area [2] of the machine's rear cover [1] as shown using nippers.

  • Page 18: 4Mounting The Stamp

    Chapter 1　 3-6) Upper Right Cover 3-7) Lower Right Cover MEMO: 3-8) Machine Rear Left Cover If you have mounted a full sensor unit, put back the 3-9) Machine Rear Cover covers identified as 3-1) through 3-3). 4) Mount the drum unit to the machine. 5) Turn the developing assembly locking lever coun- 3-1) Rear Cover terclockwise.

  • Page 19: 5Attaching The Fax Approval Label

    Chapter 1 1.2.5 Attaching the Fax Approval label 0010-8118 1) Attach the Fax Approval label [1] firmly by posi- tioning it against the indicated location of the ma- chine's rear cover. F-1-30...

  • Page 20: Checking The Operation

    Chapter 1　 1.3 Checking the Opera- priate telephone service number (e.g., time service) to make sure that a connection is made normally. If tion the attempt fails, check to make sure that the type of the line you selected in user mode and the type of the actual line match.
  • Page 21 Sep 14 2005...
