Siemens RUGGEDCOM WiN5200 User Manual page 40

Chapter 4
Installation Procedure

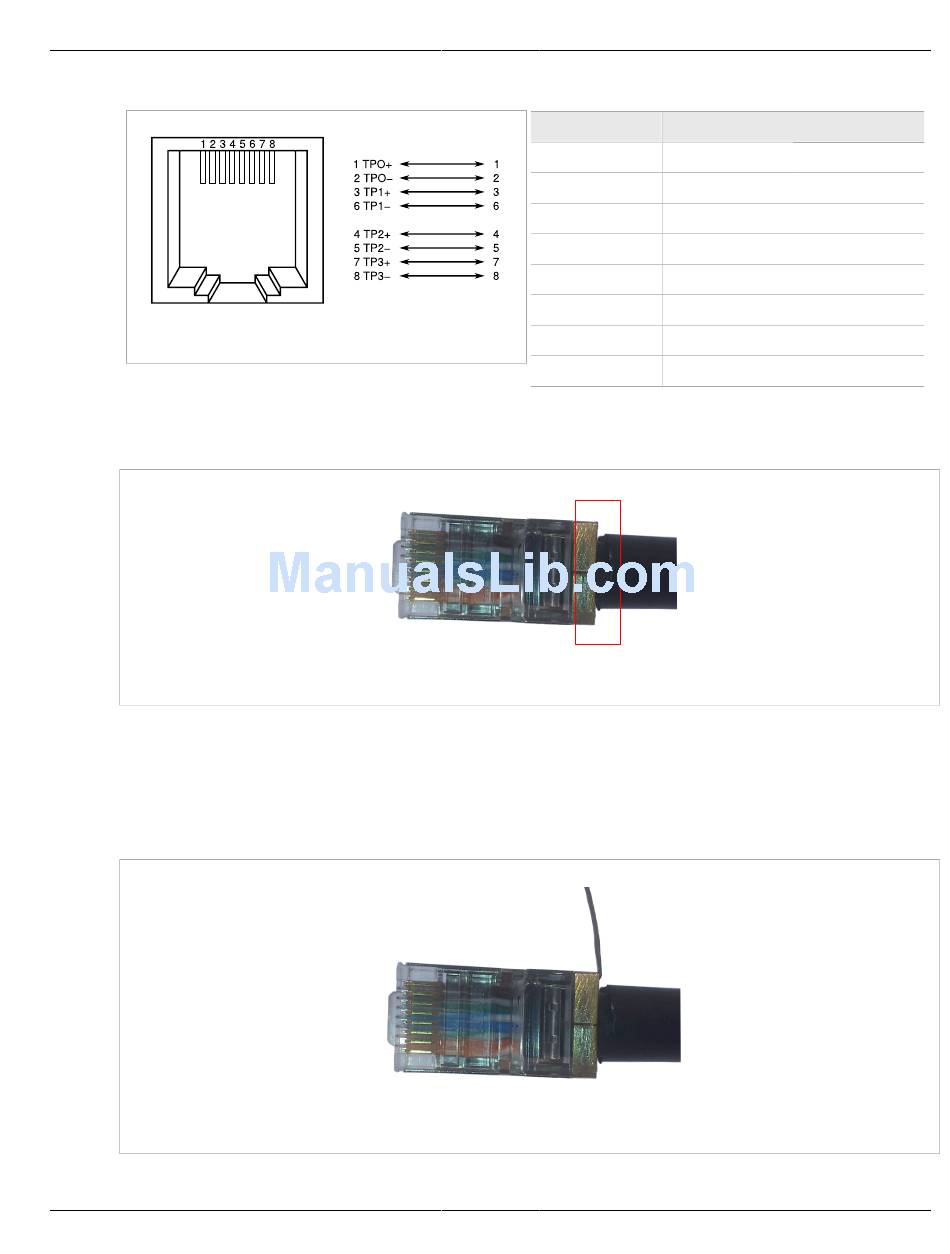

Figure 22: Ethernet Port Pinout
3. Refer to Figure
• Using the supplied RJ45 connector, use an abrasive to remove the nickel coating on the grounding shield.
Figure 23: Preparing the RJ45 connector
4. Refer to Figure
• Place the RJ45 connector over the wire ends, making sure to maintain the pin arrangement shown in
Figure 21.
• Once inserted, visually inspect the cable layout.
• Crimp the RJ45 connector to the cable.
Figure 24: Inserting the Cat 5e cable into the RJ45 connector
32
23.
24.
Table: Ethernet Port Pinout
Pin Number
1 ETH Data
2 ETH Data
3 ETH Data
4 +55V
5 +55V
6 ETH Data
7 RTN (-)
8 RTN (-)
Assembling the RJ45 Connector
RUGGEDCOM WiN5100/WiN5200
User Guide
Description
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
