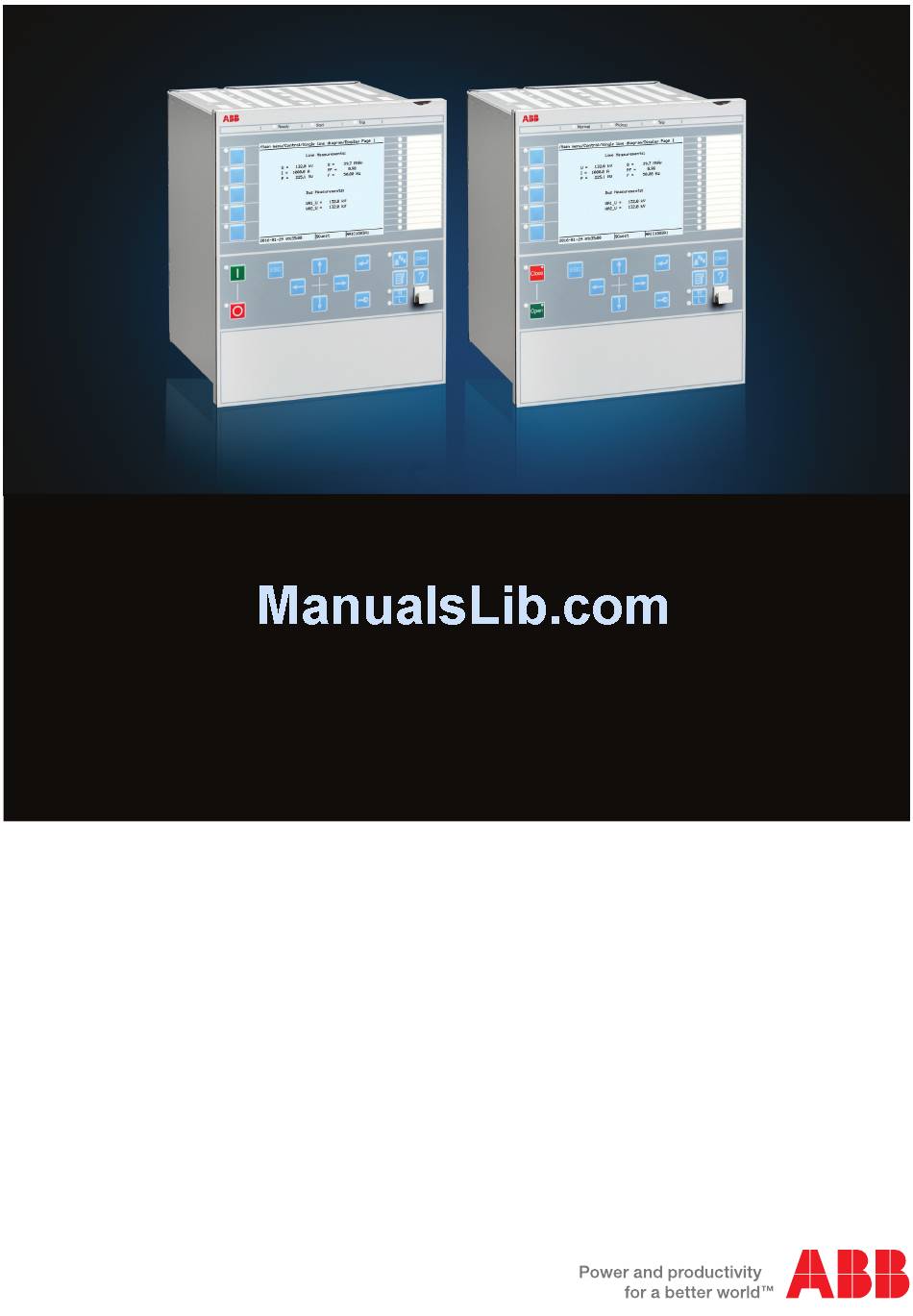

  • Page 1 ® Relion 650 series Busbar protection REB650 2.1 IEC Product guide...

  • Page 2: Table Of Contents

    Disclaimer The information in this document is subject to change without notice and should not be construed as a commitment by ABB. ABB assumes no responsibility for any errors that may appear in this document. Drawings and diagrams are not binding.

  • Page 3: Application

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Issued: June 2017 Revision: B 1. Application The pre-configured IED can be changed and adapted to suit GUID-F13C1639-4853-4305-84CA-D9648B0648B0 v3 The numerical high impedance differential busbar protection specific applications with the graphical configuration tool.
  • Page 4 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 High impedance busbar protection for up to 3 zones 12AI (9I + 3U) QB1 QB1 QB1 DFR/SER DRP RDRE 1→0 SMP PTRC QA1 QA1 Id> S SCBR Zone 1...

  • Page 5: Available Functions

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 2. Available functions Main protection functions GUID-66BAAD98-851D-4AAC-B386-B38B57718BD2 v12 Table 1. Example of quantities = number of basic instances = option quantities 3-A03 = optional function included in packages A03 (refer to ordering details)

  • Page 6: Secondary System Supervision

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Control and monitoring functions GUID-E3777F16-0B76-4157-A3BF-0B6B978863DE v13 IEC 61850 ANSI Function description Busbar REB650 (A03) Control QCBAY Apparatus control LOCREM Handling of LRswitch positions LOCREMCTRL LHMI control of PSTO...

  • Page 7: Monitoring

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 IEC 61850 ANSI Function description Busbar REB650 (A03) ITBGAPC Integer to Boolean 16 conversion with Logic Node representation TEIGAPC Elapsed time integrator with limit transgression and overflow supervision...
  • Page 8 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Table 2. Total number of instances for basic configurable logic blocks Basic configurable logic block Total number of instances GATE PULSETIMER RSMEMORY SRMEMORY TIMERSET...
  • Page 9 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Communication GUID-5F144B53-B9A7-4173-80CF-CD4C84579CB5 v13 IEC 61850 ANSI Function description Busbar REB650 (A03) Station communication LONSPA, SPA SPA communication protocol LON communciation protocol HORZCOMM Network variables via LON PROTOCOL Operation selection between SPA and IEC 60870-5-103 for SLM...
  • Page 10 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 IEC 61850 ANSI Function description Busbar REB650 (A03) FSTACCS, Field service tool access via SPA protocol over ethernet communication FSTACCSNA ACTIVLOG Activity logging parameters ALTRK Service Tracking SINGLELCCH...
  • Page 11 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Basic IED functions GUID-C8F0E5D2-E305-4184-9627-F6B5864216CA v10 Table 3. Basic IED functions IEC 61850 or function Description name INTERRSIG Self supervision with internal event list SELFSUPEVLST Self supervision with internal event list...
  • Page 12 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Table 4. Local HMI functions IEC 61850 or function ANSI Description name LHMICTRL Local HMI signals LANGUAGE Local human machine language SCREEN Local HMI Local human machine screen behavior FNKEYTY1–FNKEYTY5...
  • Page 13 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 EF4PTOC can be set directional or non-directional value, the protection initiates a trip of the protected independently for each of the steps. transformer. IDir, UPol and IPol can be independently selected to be either The estimated time to trip before operation is presented.
  • Page 14 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 function in order to detect a three phase fuse failure, which in Two step overvoltage protection OV2PTOV practice is more associated with voltage transformer M13798-3 v14 Overvoltages may occur in the power system during abnormal switching during station operations.
  • Page 15 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 GUID-16E60E27-F7A8-416D-8648-8174AAC49BB5 v3 Generic communication function for Double Point indication The group alarm logic function ALMCALH is used to route DPGAPC several alarm signals to a common indication, LED and/or...
  • Page 16 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 • TIMERSET function has pick-up and drop-out delayed ITBGAPC function can only receive remote values over IEC outputs related to the input signal. The timer has a settable 61850 when the R/L (Remote/Local) push button on the front time delay.
  • Page 17 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 • Event list The event recorder logs all selected binary input signals • Indications connected to the Disturbance recorder function. Each • Event recorder recording can contain up to 150 time-tagged events.
  • Page 18 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Analog and double indication values are also transferred GUID-13157EAB-1686-4D2E-85DF-EC89768F3572 v5 The 30 limit counter L4UFCNT provides a settable counter through the EVENT function. with four independent limits where the number of positive...

  • Page 19: Human Machine Interface

    SPA communication protocol to shortcuts in the HMI tree or simple commands. SEMOD120134-5 v1 A single glass or plastic port is provided for the ABB SPA • 15 user defined three-color LEDs. protocol. This allows extensions of simple substation • Communication port for PCM600.

  • Page 20: Hardware Description

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 applications where short operating time is essential. Eight IEC 60870-5-103 communication protocol optically isolated binary inputs cater for required binary input SEMOD120137-5 v3 A single glass or plastic port is provided for the IEC information.
  • Page 21 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Layout and dimensions IP14539-1 v1 Dimensions IP14826-1 v1 M2152-3 v5 IEC04000448 V2 EN-US Figure 3. Case without rear cover IEC04000464 V2 EN-US Figure 4. Case without rear cover with 19” rack mounting kit...

  • Page 22: Connection Diagrams

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 15. Connection diagrams 650 series ver. 2.1, ANSI symbols 1MRK006502-AF Connection diagrams Connection diagram, REB650 2.1, A03 1MRK006505-BA GUID-CF4EFFA5-3081-4FC7-9A14-ED127C3C0FDE v4 The connection diagrams are delivered on the IED Connectivity package DVD as part of the product delivery.

  • Page 23: Technical Data

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 16. Technical data General M10993-1 v3 IP11376-1 v2 Definitions Reference value The specified value of an influencing factor to which are referred the characteristics of the equipment Nominal range...
  • Page 24 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Auxiliary DC voltage M12286-1 v5 IP15843-1 v3 Table 7. PSM - Power supply module Quantity Rated value Nominal range Auxiliary DC voltage, EL (input) EL = (24-60) V EL ±20%...
  • Page 25 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 M50609-2 v6 Maximum 176 binary input channels may be activated simultaneously with influencing factors within nominal range. Table 9. BIM - Binary input module with enhanced pulse counting capabilities...
  • Page 26 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 M12318-1 v7 Maximum 176 binary input channels may be activated simultaneously with influencing factors within nominal range. Table 11. IOM - Binary input/output module contact data (reference standard: IEC 61810-2)
  • Page 27 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 M12584-1 v6 BOM/IOM should be activated continuously due to power dissipation. Table 12. IOM with MOV and IOM 220/250 V, 110mA - contact data (reference standard: IEC 61810-2)
  • Page 28 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 M12441-1 v8 BOM/IOM should be activated continuously due to power dissipation. Table 13. BOM - Binary output module contact data (reference standard: IEC 61810-2) Function or quantity Trip and Signal relays...
  • Page 29 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Table 16. Frequency influence (reference standard: IEC 60255–1) Dependence on Within nominal range Influence Frequency dependence, operate value ±2.5 Hz for 50 Hz ±1.0%/Hz ±3.0 Hz for 60 Hz Harmonic frequency dependence (20% content) ±1.0%...
  • Page 30 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Table 18. Insulation Test Type test values Reference standard Dielectric test 2.0 kV AC, 1 min. IEC 60255-27 ANSI C37.90 Impulse voltage test 5 kV, 1.2/50 ms, 0.5 J Insulation resistance >...
  • Page 31 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Differential protection M13081-1 v11 Table 22. 1Ph High impedance differential protection HZPDIF Function Range or value Accuracy Operate voltage (10-900) V ±1.0% of I at I ≤ I I=U/R ±1.0% of I at I >...
  • Page 32 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Current protection M12342-1 v18 Table 23. Four-step phase overcurrent protection OC4PTOC Function Setting range Accuracy lBase Operate current, step 1-4 (5-2500)% of ±1.0% of I at I ≤ I ±1.0% of I at I >...
  • Page 33 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 M15223-1 v16 Table 24. Four step residual overcurrent protection EF4PTOC technical data Function Range or value Accuracy Operate current, step 1-4 (1-2500)% of IBase ±1.0% of I at I ≤ I ±1.0% of I at I >...
  • Page 34 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 GUID-E83AD807-8FE0-4244-A50E-86B9AF92469E v5 Table 25. Four step negative sequence overcurrent protection NS4PTOC Function Range or value Accuracy Operate current, step 1 - 4 (1-2500)% of lBase ±1.0% of I at I £...

  • Page 35: Circuit Breaker

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 M13266-2 v8 Table 26. Thermal overload protection, two time constants TRPTTR Function Range or value Accuracy Base current 1 and 2 (30–250)% of IBase ±1.0% of I Operate time: = load current before overload ±5.0% or ±200 ms whichever is greater...
  • Page 36 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 M13279-1 v9 Table 28. Pole discordance protection CCPDSC Function Range or value Accuracy Operate current (0–100)% of IBase ±1.0% of I Independent time delay (0.000-60.000) s ±0.2% or ± 25 ms whichever is greater...
  • Page 37 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Voltage protection M13290-1 v14 Table 29. Two step undervoltage protection UV2PTUV Function Range or value Accuracy UBase Operate voltage, low and high step (1.0–100.0)% of ±0.5% of U Absolute hysteresis (0.0–50.0)% of...
  • Page 38 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 M13304-1 v13 Table 30. Two step overvoltage protection OV2PTOV Function Range or value Accuracy Operate voltage, step 1 and 2 (1.0-200.0)% of UBase ±0.5% of U at U ≤ U ±0.5% of U at U >...

  • Page 39: Fuse Failure Supervision

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Secondary system supervision M16069-1 v11 Table 32. Fuse failure supervision FUFSPVC Function Range or value Accuracy Operate voltage, zero sequence (1-100)% of UBase ±0.5% of U Operate current, zero sequence (1–100)% of IBase...

  • Page 40: Tripping Logic

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Logic M12380-1 v10 Table 33. Tripping logic common 3-phase output SMPPTRC Function Range or value Accuracy Trip action 3-ph, 1/3-ph, 1/2/3-ph Minimum trip pulse length (0.000-60.000) s ±0.2% or ±15 ms whichever is greater 3-pole trip delay (0.020-0.500) s...
  • Page 41 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 GUID-45DF373F-DC39-4E1B-B45B-6B454E8E0E50 v1 Table 40. Number of GATE instances Logic block Quantity with cycle time 3 ms 8 ms 100 ms GATE GUID-0EC4192A-EF03-47C0-AEC1-09B68B411A98 v1 Table 41. Number of INV instances...

  • Page 42: Elapsed Time Integrator With Limit Transgression And Overflow Supervision

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 GUID-0B07F78C-10BD-4070-AFF0-6EE36454AA03 v1 Table 48. Number of XOR instances Logic block Quantity with cycle time 3 ms 8 ms 100 ms GUID-94C803B4-6C5A-4072-AB5C-20DDE98C9A70 v1 GUID-23D4121A-4C9A-4072-BBE3-6DB076EDAB79 v1 GUID-27DF23C0-A0B2-4BB0-80B5-FC7B7F7FE448 v1 GUID-F25B94C6-9CC9-48A0-A7A3-47627D2B56E2 v1...
  • Page 43 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 GUID-F5E124E3-0B85-41AC-9830-A2362FD289F2 v1 Table 55. Running hour-meter TEILGAPC Function Range or value Accuracy Time limit for alarm supervision, tAlarm (0 - 99999.9) hours ±0.1% of set value Time limit for warning supervision, tWarning (0 - 99999.9) hours...

  • Page 44: Measurements

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Monitoring M12386-1 v14 Table 56. Measurements CVMMXN Function Range or value Accuracy Frequency (0.95-1.05) x f ±2.0 mHz Voltage (10 to 300) V ±0.3% of U at U≤ 50 V ±0.2% of U at U>...

  • Page 45: Measurements

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 GUID-ED634B6D-9918-464F-B6A4-51B78129B819 v5 Table 59. Phase-neutral voltage measurement VNMMXU Function Range or value Accuracy Voltage (5 to 175) V ±0.5% of U at U ≤ 50 V ±0.2% of U at U > 50 V...

  • Page 46: Disturbance Report

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 M12760-1 v9.1.1 Table 63. Disturbance report DRPRDRE Function Range or value Accuracy Pre-fault time (0.05–9.90) s Post-fault time (0.1–10.0) s Limit time (0.5–10.0) s Maximum number of recordings...
  • Page 47 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 GUID-83B0F607-D898-403A-94FD-7FE8D45C73FF v6 Table 65. Insulation liquid monitoring function SSIML Function Range or value Accuracy Oil alarm level 1.00-100.00 ±10.0% of set value Oil lockout level 1.00-100.00 ±10.0% of set value Temperature alarm level -40.00-200.00...
  • Page 48 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 M12702-1 v4 Table 69. Event recorder Function Value Buffer capacity Maximum number of events in disturbance report Maximum number of disturbance reports Resolution 1 ms Accuracy Depending on time...

  • Page 49: Pulse-Counter Logic

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Metering M13404-2 v5 Table 73. Pulse-counter logic PCFCNT Function Setting range Accuracy Input frequency See Binary Input Module (BIM) Cycle time for report of counter (1–3600) s value SEMOD153707-2 v4 Table 74.
  • Page 50 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Station communication M15031-1 v7 Table 75. Communication protocols Function Value Protocol IEC 61850-8-1 Communication speed for the IEDs 100BASE-FX Protocol IEC 60870–5–103 Communication speed for the IEDs 9600 or 19200 Bd Protocol DNP3.0...
  • Page 51 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 SEMOD117441-2 v5 Table 80. SLM – SPA/IEC 60870-5-103/DNP3 port Quantity Range or value Optical connector Glass fiber: type ST Plastic fiber: type HFBR snap-in Fiber, optical budget Glass fiber: 11 dB (1000m/3000ft m typically *)
  • Page 52 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Hardware M11778-1 v4 SEMOD53385-1 v1 Table 83. Case Material Steel sheet Front plate Steel sheet profile with cut-out for HMI Surface treatment Aluzink preplated steel Finish Light grey (RAL 7035) M12327-1 v3 Table 84.
  • Page 53 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Basic IED functions M11963-1 v5 Table 90. Self supervision with internal event list Data Value Recording manner Continuous, event controlled List size 40 events, first in-first out M12331-1 v7 Table 91.
  • Page 54 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Inverse characteristic M12388-1 v19 Table 93. ANSI Inverse time characteristics Function Range or value Accuracy Operating characteristic: 0.10 ≤ k ≤ 3.00 ANSI/IEEE C37.112 , 1.5 x I ≤...
  • Page 55 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Table 94. IEC Inverse time characteristics Function Range or value Accuracy Operating characteristic: 0.10 ≤ k ≤ 3.00 IEC 60255-151, ±2.0% 1.5 x I ≤ I ≤ 20 x I or ±40 ms whichever is...
  • Page 56 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 SEMOD116978-2 v9 Table 96. Inverse time characteristics for overvoltage protection Function Range or value Accuracy Type A curve: k = (0.05-1.10) in steps of 0.01 ±5.0% or ±45 ms whichever is greater æ...
  • Page 57 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Table 97. Inverse time characteristics for undervoltage protection Function Range or value Accuracy Type A curve: k = (0.05-1.10) in steps of 0.01 ±5.0% or ±45 ms whichever is greater æ...
  • Page 58 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Table 98. Inverse time characteristics for residual overvoltage protection Function Range or value Accuracy Type A curve: k = (0.05-1.10) in steps of ±5.0% or ±45 ms whichever is greater 0.01...

  • Page 59: Ordering For Pre-Configured Ied

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 17. Ordering for pre-configured IED GUID-7D93FA75-E25C-4DFF-A1A4-5BAC831B61DB v2.1.1 Guidelines Carefully read and follow the set of rules to ensure problem-free order management. Please refer to the available functions table for included application functions.
  • Page 60 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Connection type Notes and Rules Connection type for Power supply module Compression terminals Ringlug terminals Connection type for input/output modules Compression terminals Selection for position #7. Auxiliary power supply...
  • Page 61 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Remote end communication, DNP serial comm. and time Notes and Rules synchronization modules Slot position (rear view) Available slots █ █ █ █ No remote communication board included...

  • Page 62: Ordering For Accessories

    1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 18. Ordering for Accessories RK926 315-AV is provided with one three-phase CT input with current shorting and with sixteen trip output blocking Accessories contacts. It is suitable when external CT grounding is required...
  • Page 63 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Rule: Specify additional quantity of IED Connect CD requested . Quantity: 1MRK 002 290-AD User documentation Rule: Specify the number of printed manuals requested Application manual Quantity: 1MRK 505 359-UEN...
  • Page 64 1MRK 505 362-BEN B Busbar protection REB650 2.1 IEC Product version: 2.1 Reference information M2175-3 v4 For our reference and statistics we would be pleased to be provided with the following application data: Country: End user: Station name: Voltage level:...
