- Page 1 Operating and Installation Instructions Ceramic cooktops with induction To avoid the risk of accidents or damage to the appliance it is imperative that you read these instructions before installing the appliance and using it for the first time en-CA M.-Nr. 09 166 590...
-
Page 2: Table Of Contents
Warning and safety instructions ................ 4 Caring for the environment ................ 14 Overview....................... 15 Cooktop......................... 15 KM 6310 / KM 6311 / KM 6312................ 15 KM 6344 ...................... 16 Controls/Indicators....................17 Burner data......................19 Using for the first time .................. 20 Cleaning the cooktop for the first time.............. - Page 3 Cleaning and care .................... 40 Programming ....................... 42 Problem solving guide .................. 45 Optional accessories .................. 49 Miele@home / Con@ctivity ................ 50 Safety instructions for installation.............. 52 Safety clearances .................... 53 Cooktops with trim or bevelled edges .............. 57 Instructions for installation ..................57 Installation dimensions..................
-
Page 4: Warning And Safety Instructions
They contain important notes on installation, safety, use and maintenance. Miele cannot be held liable for damage occurring as a result of non-compliance with these instructions. Keep these instructions in a safe place and pass them on to any... -
Page 5: Intended Use
Warning and safety instructions Intended use This cooktop is intended for domestic use and use in other similar environments. This cooktop is not intended for outdoor use. The cooktop is intended to prepare food and keep it warm in domestic use only. - Page 6 Warning and safety instructions Safety with children Children under 8 years of age must be kept away from the cooktop unless they are constantly supervised. Children ages 8 and up may only use the cooktop without supervision if they have been shown how to use it in a safe manner, and if they are able to recognize and understand the potential risks of improper use.
- Page 7 Do not open the casing of the cooktop under any circumstances. Any repairs not performed by a Miele authorized service technician will void the warranty.
- Page 8 Warning and safety instructions Miele can only guarantee the safety of the appliance if genuine Miele spare parts are used. Defective components must only be replaced by genuine Miele spare parts. The appliance is not intended for use with an external timer switch or a remote control system.
- Page 9 Warning and safety instructions If the cooktop is installed behind a cabinet door, do not close the door while the cooktop is in operation. Heat and moisture can build up behind the closed door and cause damage to the cooktop, cabinetry and flooring.
- Page 10 Warning and safety instructions Proper use The cooktop gets hot when in use and remains hot for a while after being turned off. A burn hazard is present until the residual heat indicators go out. Oil and fat can catch fire if overheated. Never leave the cooktop unattended when cooking with oil and fat.
- Page 11 Warning and safety instructions You can burn yourself on a hot cooktop. When cooking on the cooktop, protect your hands by using heat-resistant pot holders or oven mitts. Only use dry pot holders and oven mitts. Wet or damp textiles conduct heat more effectively and produce steam, which poses a burn hazard.
- Page 12 Warning and safety instructions Lift pans into position on the cooktop. Sliding them into place can cause scuff marks and scratches. Because induction heating works so quickly, the temperature of the cookware bottom can quickly reach the ignition point of oils and fats.
- Page 13 Warning and safety instructions Cleaning and care Do not use a steam cleaner to clean the cooktop. The steam could reach electrical components and cause a short circuit. If the cooktop is built in over a self-cleaning oven, the cooktop should not be used while the self-cleaning process is being carried out, as this could trigger the overheating protection mechanism on the cooktop (see relevant section).
-
Page 14: Caring For The Environment
Therefore, please do not dispose of sites. You can return the packaging to your old appliance in your regular your Miele dealer. household waste. Instead, use your local community waste collection and recycling centre for electric and electronic appliances. -
Page 15: Overview

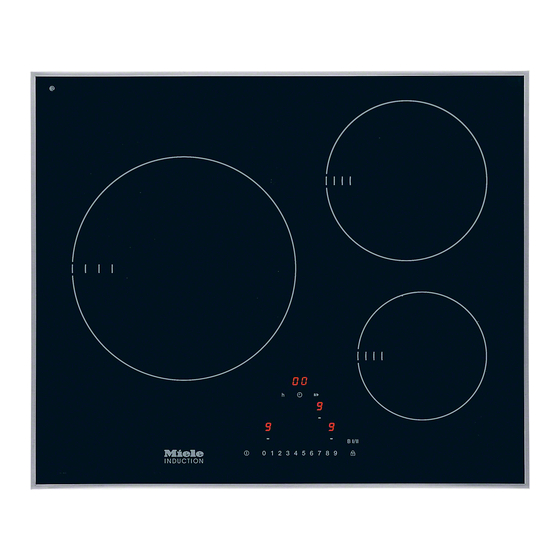

Overview Cooktop KM 6310 / KM 6311 / KM 6312 a Cooking zone with TwinBooster b Cooking zone with Booster c Cooking zone with Booster d Controls/Indicators... - Page 16 Overview KM 6344 a Cooking zone with TwinBooster b Cooking zone with Booster c Cooking zone with Booster d Cooking zone with Booster e Controls/Indicators...
-
Page 17: Controls/Indicators
Overview Controls/Indicators 0 1 2 3 5 6 7 8 9 Sensor buttons a For switching the cooktop on and off b Control scale - For setting the power level - For setting the timer c For activating/deactivating the system lock/safety lock d For switching the Booster/TwinBooster on/off e For selecting the cooking zone f For activating/deactivating Stop & Go... - Page 18 Overview Indicator lamps i System lock/Safety lock activated j Booster/TwinBooster activated l Auto heat-up or extended power setting (see "Programming") m Shows cooking zone selection, e.g. rear right cooking zone o In half hours if the minute minder setting exceeds 99 minutes k Cooking zone display ...
-
Page 19: Burner Data
Overview Burner data Burner KM 6310 / KM 6311 / KM 6312 Ø in cm* Power in watts at 230 V** 18–28 normal 2600 TwinBooster, Level 1 3000 TwinBooster, Level 2 3700 14–20 normal 1850 Booster 3000 10–16... -
Page 20: Using For The First Time
Using for the first time Please affix the extra appliance data Turning on the cooktop for the plate supplied with this first time documentation in the space provided Metal components are protected by a in the "After-sales service, data plate, conditioning agent. -
Page 21: Induction
Induction How it works When the appliance is switched on either deliberately or by mistake, An induction coil is located under each or when there is residual heat burner. When a zone is turned on, this present, there is the risk of heating coil creates a magnetic field that up any metal items placed on the interacts directly with the base of the... -
Page 22: Noises
Induction Noises When you use an induction cooking zone, the following noises may occur, depending on the type and shape of the cookware bottom: On the higher power settings, it might buzz. This will decrease or cease altogether when the power setting is reduced. -
Page 23: Cookware
Induction – Lift pans into position on the Cookware cooktop. Sliding them into place can Suitable cookware is made of: cause scuff marks and scratches. – Stainless steel with a magnetic – The maximum diameter indicated by bottom, manufacturers will often refer to the diameter of the top rim of the pot or –... -
Page 24: Energy Saving Tips
Energy saving tips – Use a lid whenever possible to minimize heat loss. – For small quantities, select a small pan. A small pan on a small burner uses less energy than a large, only partially filled pan on a large burner. –... -
Page 25: Setting Range
Setting range The cooktop is programmed with 9 power levels at the factory. If you wish to fine- tune a setting, you can extend the power setting range to 17 power levels (see "Programming"). Setting range default extended settings settings (9 power (17 power levels) -
Page 26: Operation
Operation Basic operation Malfunction can occur due to dirty and/or covered sensor buttons. The ceramic cooktop is equipped with The sensor buttons do not react or electronic sensor buttons that react to unintentional switching procedures finger contact. During activation, the result, perhaps even the automatic On/Off ... -
Page 27: Turning The Cooktop On
Operation Residual heat indicator Fire hazard! Do not leave the cooktop unattended When a cooking zone is hot, the during operation! residual heat indicator will light up after Please note that the heating-up time deactivation. for induction cooktops is shorter The lines of the residual heat indicator than for conventional cooktops. -
Page 28: Auto Heat-Up
Operation Auto Heat-up Continued Auto Heat-up cooking level time When Auto Heat-up has been activated, [min : sec] the cooking zone turns on automatically at the highest level and then switches approx. 0 : 15 to the previously selected continued approx. -
Page 29: Booster
Operation Two cooking zones each are connected Booster with each other so that the power for The cooking zones are equipped with a the booster can be provided. The Booster or TwinBooster (see "Overview connected zone will operate at reduced –... - Page 30 Operation Tap the B I/II sensor button Activating the booster repeatedly until the booster indicator Briefly tap the selection button for the light goes out and the selected power desired cooking zone. level appears in the cooking zone ...
-
Page 31: Keeping Food Warm
Operation Setting the keep warm function Keeping food warm Briefly tap the selection button for the This keeping warm level is for keeping desired cooking zone. food warm that has just been cooked, i.e. food that is still hot. It is not for ... -
Page 32: Timer
Timer Timer The cooktop has to be turned on if you wish to use the timer. Setting the minutes You can set a time between 1 minute () and 9 hours (.). Example: You want to set a time of 15 minutes. - Page 33 Timer Setting the hours Changing the timer Touch the sensor button. To set full hours, touch the respective sensor on the control scale. To set half Set a new time, as described above. hours, touch the space between 2 sensors on the control scale.
-
Page 34: Turning A Cooking Zone Off Automatically
Timer If you want to set another cooking Turning a cooking zone off zone to turn off automatically, follow automatically the same steps as described above. You can set a time after which the cooking zone will turn off automatically. If more than one turn-off time is This function can be used on all zones programmed, the shortest time... -
Page 35: Using Both Timer Functions At The Same Time
Timer If you would like to call the other Using both timer functions at remaining times so that they appear in the same time the display: The timer and automatic turn-off Tap the sensor button until: functions can be used at the same time. –... -
Page 36: Additional Functions
Additional functions Stop & Go When activated, the Stop & Go reduces the power of all cooking zones in use to power level 1. The power levels of the zones and setting of the timer cannot be changed and the cooktop can only be turned off. A set timer and booster time continue to run. -
Page 37: Safety Features
Safety features The safety lock is activated when the System lock/Safety lock cooktop is turned on. When the safety The system lock and safety lock are lock is activated, the cooktop can be deactivated if there is a power operated only under certain conditions: outage. -
Page 38: Safety Shut-Off
Safety features Safety shut-off if the sensors are Safety shut-off covered Safety shut-off with an overlong Your cooktop will turn off automatically cooking time if one or several of the sensors remain The safety shut-off is triggered covered for longer than 10 seconds, for automatically if a cooking zone is example, by finger contact, food boiling heated for an unusually long period of... -
Page 39: Overheat Protection
If, despite elimination of the cause, the – Any booster function in operation will overheat protection is triggered again, be turned off. contact Miele Service. – The power level that is set will be reduced. – The cooking zone turns off automatically. -
Page 40: Cleaning And Care
Cleaning and care Clean and dry the entire cooktop after Burn hazard. each use. Allow it to cool down before The burners must be turned off and cleaning. Dry the appliance after using allowed to cool completely. water to clean it. This helps prevent lime deposits. - Page 41 Stubborn soiling may need to be removed with a scraper blade. Then, clean the cooktop with the Miele ceramic and stainless steel cleaner (see "Optional accessories") or commercial glass ceramic cleaner using a paper towel or clean cloth.
-
Page 42: Programming
Programming You can adapt the programming of the Starting the programming cooktop to your personal needs. function Several settings can be changed in When the cooking zone is turned succession. off, tap the and sensor buttons After the programming function is simultaneously until the indicator light started, ... - Page 43 Programming Settings Program Status Demo mode and factory Demo mode on default settings Demo mode off Default settings reinstated Stop and Go Number of power levels 9 power levels 17 power levels Induction buzzer tone when there is no or unsuitable quiet cookware medium...
- Page 44 Programming Settings Program Status Miele@home/Con@ctivity not currently available - only on communication- logged off enabled appliances retrofitted with a communication logged on module/wireless stick - Buzzer tone if the sensors are covered Sensor button reaction speed slow normal fast Unlisted programs are not assigned.
-
Page 45: Problem Solving Guide
Miele (see back cover for contact details). Risk of injury! Improperly performed installation, maintenance or repair work can pose a serious danger to users of the appliance, for which Miele is not responsible. Installation, maintenance and repairs may only be carried out by Miele- authorized technicians. - Page 46 Problem solving guide Problem Possible cause and remedy In the burner display, There is no or unsuitable cookware on the cooking the symbol will flash zone. alternately with the Use a suitable pan (see "Cookware"). selected power setting or .
- Page 47 Take any pans off the cooktop and wipe away any food deposits. Interrupt the power supply to the cooktop for approx. 1 minute. If the problem persists after power is restored, please contact Miele Service.
- Page 48 Make sure it has not been blocked by something like a fork. Remove the cause of the blockage. If this fault code continues to appear in the display, contact Miele Service. and other numbers There is a fault in the electronic module.
-
Page 49: Optional Accessories
Miele dealer (see end of this aluminum residues. booklet for contact details). Microfibre cloth Cookware/bakeware Miele offer a wide range of pans that are perfect for Miele cooktops. Please refer to the Miele website for more details on individual products. Removes fingerprints and light soiling –... -
Page 50: Miele@Home / Con@Ctivity
Your cooktop is communication- Further information regarding enabled and can Miele@home and Con@ctivity is available on the internet and in the – be integrated into the Miele@home instruction manuals of the various system using an optional components. communication module or communication with the ventilation hood (Con@ctivity). - Page 51 Miele@home / Con@ctivity If you want Logging off the cooktop – To log on to the Miele@home If you would like to log off the cooktop system, first prepare the log-on from Miele@home, first prepare the procedure on the master appliance.
-
Page 52: Safety Instructions For Installation
Safety instructions for installation Only a qualified technician shall be permitted to install the cooktop and only an authorized electrician shall be permitted to connect the power supply. Install the upper cabinets and ventilation hood before installing the cooktop to avoid damaging the appliance. -
Page 53: Safety Clearances
Safety clearances Safety clearance above the cooktop For a ventilation hood positioned above the cooktop, always use the clearance specified by the hood manufacturer. If no specifications are available from the hood manufacturer, or if flammable materials (e.g. wall shelf) are installed above the cooktop, the clearance must be at least 760 mm. - Page 54 Safety clearances Safety clearances to the sides and back of the cooktop Ideally, the cooktop should be installed with plenty of space on either side. There may be a wall at the rear or a tall cabinet or wall on one side (right or left) (see illustrations).
- Page 55 Safety clearances Minimum clearance Protective base underneath the cooktop Installation of a protective base under the cooktop is allowed but not required. To ensure proper ventilation of the cooktop, a minimum clearance is Leave a gap of 10 mm at the back of required between the appliance and an the shelf to accommodate the cable.
- Page 56 Safety clearances Safety distance from the wall covering If a wall covering is installed, a minimum safety distance must be maintained between the countertop cut-out and the covering, since high temperatures can damage these materials. If the covering is made of a flammable material (such as wood), the minimum distance ...
-
Page 57: Cooktops With Trim Or Bevelled Edges
Cooktops with trim or bevelled edges Tiled countertop Instructions for installation Seal between the cooktop and countertop The grouting and the shaded area under the cooktop frame must be smooth and flat so that the frame will sit evenly on the countertop and so that the sealing strip under the top edge of Do not use sealant between the the appliance can provide an adequate... -
Page 58: Installation Dimensions
Cooktops with trim or bevelled edges Installation dimensions KM 6310 a front b Installation height c Miele@home/Con@ctivity connection d Power supply connection box The power cable (1440 mm long) is supplied separately with the cooktop. - Page 59 Cooktops with trim or bevelled edges KM 6344 a front b Installation height c Miele@home/Con@ctivity connection d Power connection box The power cable (1440 mm long) is supplied separately with the cooktop.
-
Page 60: Installation
Cooktops with trim or bevelled edges Installing the cooktop Installation Feed the appliance power cord down Preparing the countertop through the counter cut-out. Create the countertop cut-out as Center the cooktop in the cut-out. shown in the cooktop diagram. Make sure that the seal under the Remember to maintain the minimum cooktop sits flush with the counter on... -
Page 61: Electrical Connection
Installer: service technician. Work by unqualified persons can cause Please leave these instructions with considerable danger to users. Miele the customer. cannot be held liable for any damage arising as a result of such work. Before connecting the appliance to... - Page 62 Electrical connection Make sure that the connecting socket is Connection accessible after the installation of the Ensure that the connection data on cooktop. the data plate (voltage, frequency, Further information can be found on the and fuse rating) match those of your included data plate.
-
Page 63: After-Sales Service, Data Plate, Warranty
For problems that you cannot resolve on your own, please contact: – Your Miele dealer or – Miele Service The telephone number for Miele Service can be found at the back of this booklet. When contacting Miele, please have the model and serial number of your cooktop ready. - Page 67 Canada Importer Miele Limited Headquarters and Miele Centre 161 Four Valley Drive Vaughan, ON L4K 4V8 www.miele.ca Customer Care Centre Phone: 800-565-6435 customercare@miele.ca Germany Manufacturer Miele & Cie. KG Carl-Miele-Straße 29 33332 Gütersloh...
- Page 68 KM 6310 / KM 6344 en-CA M.-Nr. 09 166 590 / 07...
