- Page 1 Operating and installation instructions Ceramic cooktops with induction To prevent the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time. en-AU M.-Nr. 10 193 280...
-
Page 2: Table Of Contents
Contents Warning and Safety instructions................ 4 Caring for the environment ................ 14 Overview....................... 15 Cooktop......................... 15 KM 6325-1...................... 15 KM 6362-1 / KM 6363-1 / KM 6364-1 ............. 16 Control symbols ....................17 Cooktop display symbols..................17 Cooking zone data ....................18 Before using for the first time ................ 20 Cleaning the cooktop for the first time.............. - Page 3 Safety instructions for installation.............. 42 Safety distances .................... 43 Cooktops with frame or bevelled edge ............. 45 Installation notes ....................45 Building-in dimensions..................46 KM 6325-1...................... 46 KM 6362-1...................... 47 KM 6363-1...................... 48 Installation ......................49 Flush-fitted cooktops.................. 50 Installation notes ....................50 Building-in dimensions..................
-
Page 4: Warning And Safety Instructions
They contain important notes on installation, safety, use and maintenance. Miele cannot be held liable for non-compliance with these instructions. Keep these instructions in a safe place and ensure that new users... - Page 5 This cooktop is not suitable for outdoor use. It is intended only to cook food and keep it warm. Any other use is not supported by Miele and could be dangerous. This appliance is not intended for use by persons (including...
- Page 6 Warning and Safety instructions Safety with children Young children must not be allowed to use this appliance. Older children may only use the appliance when its operation has been clearly explained to them and they are able to use it safely, recognising the dangers of misuse.
- Page 7 Repairs and other work by unqualified persons could be dangerous. Installation, maintenance work and repairs to electrical appliances must only be carried out by a Miele approved service technician. A damaged appliance is dangerous. Check it for any visible damage.
- Page 8 The manufacturer's warranty will be invalidated if the appliance is not repaired by a Miele approved service technician. Faulty components must only be replaced by genuine Miele spare parts. The manufacturer can only guarantee the safety of the appliance when Miele replacement parts are used.
- Page 9 Warning and Safety instructions If the cooktop is installed behind a furniture panel (e.g. a door), ensure that the door is never closed whilst the cooktop is in use. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the cooktop, the housing unit and the floor.
- Page 10 Warning and Safety instructions Correct use The cooktop gets hot when in use and remains hot for a while after being switched off. There is a danger of burning until the residual heat indicators go out. Oil and fat can overheat and catch fire. Do not leave the cooktop unattended when cooking with oil and fat.
- Page 11 Warning and Safety instructions You could burn yourself on the hot cooktop. Protect your hands with heat-resistant pot holders or gloves when handling hot pots and pans. Do not let them get wet or damp, as this causes heat to transfer through the material more quickly with the risk of scalding or burning yourself.
- Page 12 Warning and Safety instructions Induction heating works extremely quickly. Therefore, the base of the pan could heat up to the temperature at which oil or fat self- ignites within a very short time. Do not leave the cooktop unattended whilst it is being used.
-
Page 13: Cleaning And Care
Warning and Safety instructions Cleaning and care Do not use a steam cleaning appliance to clean this appliance. The steam could reach the electrical components and cause a short circuit. If the cooktop is built in over a pyrolytic oven, the cooktop should not be used whilst the pyrolytic process is being carried out, as this could trigger the overheating protection mechanism on the cooktop (see relevant section). -
Page 14: Caring For The Environment
Caring for the environment Disposal of the packing Disposing of your old material appliance The transport and protective packaging Electrical and electronic appliances has been selected from materials which often contain valuable materials. They are environmentally friendly for also contain specific materials, disposal, and can normally be recycled. -
Page 15: Overview

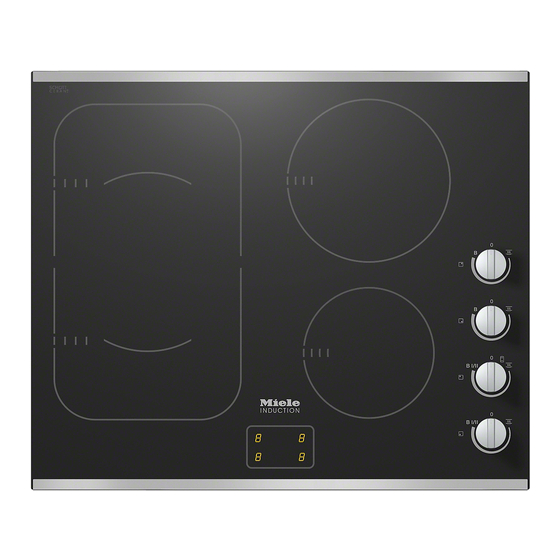

Overview Cooktop KM 6325-1 a PowerFlex cooking zone with TwinBooster b PowerFlex cooking zone with TwinBooster ab can be combined to form PowerFlex cooking area c Cooking zone with Booster d Cooking zone with Booster e Display with cooking zone indicators... -
Page 16: Km 6362-1 / Km 6363-1 / Km 6364-1
Overview KM 6362-1 / KM 6363-1 / KM 6364-1 a Cooking zone with WaterBoost b Cooking zone with Booster c PowerFlex cooking zone with TwinBooster d PowerFlex cooking zone with TwinBooster cd can be combined to form PowerFlex cooking area e Display with cooking zone indicators f Control for the front left cooking zone g Control for the rear left cooking zone h Control for the front right cooking zone... -
Page 17: Control Symbols
Overview Control symbols Symbol Description Cooking zone off Keeping warm setting For switching on the PowerFlex cooking area Booster level 1 B I/II TwinBooster/WaterBoost with 2 levels Cooking zone selection, example: front left Cooktop display symbols Symbol Description ... -
Page 18: Cooking Zone Data
Overview Cooking zone data Cooking zone KM 6325-1 Ø in cm* Rating in watts for 230 V** 15–23 Normal 2100 TwinBooster, level 1 3000 TwinBooster, level 2 3650 15–23 Normal 2100 TwinBooster, level 1 3000 TwinBooster, level 2 3650 ... - Page 19 Overview Cooking zone KM 6362-1 / KM 6363-1 / KM 6364-1 Ø in cm* Rating in watts for 230 V** 10–23 Normal 2300 WaterBoost, level 1 3200 WaterBoost, level 2 5000 14–20 Normal 1850 Booster 3000 15–23 Normal 2100 TwinBooster, level 1 3000 TwinBooster, level 2 3650...
-
Page 20: Before Using For The First Time
Before using for the first time Please stick the extra data plate for Switching on the cooktop for the appliance supplied with this the first time documentation in the space provided The metal components have a in the "Service" section of this protective coating which may give off a booklet. -
Page 21: Induction
Induction The induction principle When the appliance is switched on either deliberately or by mistake, An induction coil is located under each or when there is residual heat cooking zone. When a cooking zone is present, there is the risk of any metal switched on, this coil creates a items placed on the cooktop (e.g. -
Page 22: Noises
Induction Noises When using an induction cooking zone, the following noises can occur in the pan, depending on what it is made of and how it has been constructed. On the higher power settings, it might buzz. This will decrease or cease altogether when the power setting is reduced. -
Page 23: Pans
Induction – Lift pans into position on the Pans cooktop. Sliding them into place can Suitable pans: cause scuffs and scratches. – Stainless steel pans with a base that – Often the maximum diameter quoted can be magnetised. by manufacturers refers to the diameter of the top rim of the pot or –... -
Page 24: Tips On Saving Energy
Tips on saving energy – Use a lid whenever possible to minimise heat loss. – Select a smaller pan when cooking small quantities. A smaller pan uses less energy than a larger pan with very little in it. – Cook with as little water as possible. –... -
Page 25: Power Level Range
Power level range Settings Keeping warm Melting butter Dissolving gelatine Melting chocolate Making milk puddings Warming small quantities of liquid Cooking rice Defrosting frozen vegetables (blocks) Making porridge Warming liquid and semi-solid foods Making omelettes or lightly fried eggs Steaming fruit Cooking pasta/dumplings Steaming vegetables and fish Defrosting and reheating frozen food... -
Page 26: Operation
Operation Residual heat indicator Fire hazard! Do not leave the cooktop unattended If a cooking zone is still hot, the residual whilst it is being used. heat indicator will light up after it has Please note that the heating up time been switched off. -
Page 27: Powerflex Cooking Area
Operation PowerFlex cooking area The PowerFlex cooking zones can be combined to form a PowerFlex cooking area (see "Overview - Cooktop"). Settings for the cooking area are controlled by the front PowerFlex cooking zone. Switching on Turn the rotary control for the rear cooking zone clockwise to . -
Page 28: Auto Heat-Up
Operation Auto heat-up Continued Heat-up time cooking setting [min : sec] When Auto heat-up has been activated, the cooking zone switches on approx. 0 : 15 automatically at the highest setting and approx. 0 : 15 then switches to the continued cooking setting which you have previously approx. -
Page 29: Booster
Operation The cooking zones are connected in Booster pairs in order to provide sufficient The cooking zones are equipped with a power for the Booster. one stage Booster, two stage When the Booster function is selected, WaterBoost or TwinBooster (see a proportion of energy is taken away "Overview - Cooktop"). - Page 30 Operation Switching on the Booster Switching off the Booster / WaterBoost / TwinBooster Turn the rotary control clockwise Select a different power setting. gently past the point of resistance to B and back to the point of resistance. The Booster symbol will go out.
-
Page 31: Keeping Warm
Operation Setting the keeping warm function Keeping warm Turn the control clockwise to . The keeping warm function is not designed to reheat food from the cold will appear in the cooking zone state. It is only for keeping food warm display. -
Page 32: Safety Features
Safety features System lock Safety switch-off The safety switch-off mechanism is The system lock is deactivated if triggered automatically if one of the there is an interruption to the power cooking zones is heated for an supply. unusually long period of time. This period of time depends on the power The system lock can only be activated setting selected. -
Page 33: Overheating Protection
– fat or oil being heated on a high power setting, – insufficient ventilation to the underside of the appliance, – a hot cooking zone being switched on after an interruption to the power supply. If, despite removing the cause, the overheating protection mechanism triggers again, contact Miele. -
Page 34: Cleaning And Care
Cleaning and care Allow the cooktop to cool down Danger of burning! before cleaning. The cooking zones must be switched off. The cooktop needs to cool Clean the cooktop after every use. down. Dry the cooktop thoroughly after ... -
Page 35: Ceramic Surface
Then clean the ceramic glass surface blade. with the Miele ceramic and stainless Afterwards, clean the glass ceramic steel cooktop cleaner (see "Optional surface in its cooled state, as accessories") or with a proprietary... -
Page 36: Problem Solving Guide
With the help of the following guide, minor faults in the performance of the appliance, some of which may result from incorrect operation, can be remedied without contacting Miele. This will save you time and money because you won't need a service call. - Page 37 Problem solving guide Problem Possible cause and remedy After the cooktop has The demonstration mode has been switched on. been switched on, Turn the rotary control for the front left cooking appears in the display zone anti-clockwise and hold. for a few seconds.
- Page 38 The cooking zone can now be used again. with . flashes in the display There is a fault with the electronics. alternating with Interrupt the power supply to the cooktop for numbers. approx. 1 minute. If the problem persists after power is restored, please contact Miele.
-
Page 39: Optional Accessories
Original Miele all purpose microfibre Saucepans and frying pans cloth Miele offer a wide range of pans which are perfect for Miele cooktops. Please refer to the Miele website for more details on individual products. – Pans in various sizes Removes finger marks and light soiling. -
Page 40: Con@Ctivity
Con@ctivity Your cooktop is communication Further information regarding enabled and via the dongle supplied Con@ctivity is available on the internet with selected rangehoods can and in the instruction manuals of the communicate with the rangehood various components. (Con@ctivity). The cooktop sends information on its operating status to the rangehood. -
Page 41: Signing On
Con@ctivity Signing on If you want to sign on your cooktop to the Con@ctivity system, you will first need to sign on the rangehood. Disconnect the cooktop from the mains electricity supply. Connect the dongle to the cooktop (see the installation instructions for the dongle). -
Page 42: Safety Instructions For Installation
Safety instructions for installation The appliance must only be installed and connected to the electricity supply by a suitably qualified and competent person in strict accordance with current national and local safety regulations. Fit the wall units and rangehood before fitting the cooktop to avoid damaging the cooktop. -
Page 43: Safety Distances
Safety distances Safety distance above the cooktop A minimum safety distance must be maintained between the cooktop and the rangehood above it. See the rangehood manufacturer's operating and installation instructions for details. If the manufacturer's instructions are not available for the rangehood, a minimum safety distance of 600 mm must be maintained. - Page 44 (right or left), the shelf to accommodate the cable. taking into account the distances Miele recommends a gap at the front of below. On the other side, however, no the shelf of 20 mm to ensure good tall unit or wall should stand closer than ventilation.
-
Page 45: Cooktops With Frame Or Bevelled Edge
Cooktops with frame or bevelled edge Tiled worktop Installation notes Seal between the cooktop and the worktop Grout lines and the hatched area underneath the cooktop frame must be smooth and even. If they are not, the cooktop will not sit flush with the worktop and the sealing strip Do not use sealant between the underneath the cooktop will not provide... -
Page 46: Building-In Dimensions
Cooktops with frame or bevelled edge Building-in dimensions KM 6325-1 a Front b Building-in depth c Mains connection box d Con@ctivity connection The mains connection cable (1440 mm long) is supplied separately with the cooktop. -
Page 47: Km 6362-1
Cooktops with frame or bevelled edge KM 6362-1 a Front b Building-in depth c Mains connection box d Con@ctivity connection The mains connection cable (1440 mm long) is supplied separately with the cooktop. -
Page 48: Km 6363-1
Cooktops with frame or bevelled edge KM 6363-1 a Front b Building-in depth c Mains connection box d Con@ctivity connection The mains connection cable (1440 mm long) is supplied separately with the cooktop. -
Page 49: Installation
Cooktops with frame or bevelled edge Installing the cooktop Installation Feed the mains connection cable Preparing the worktop down through the cut-out. Make the worktop cut-out as shown Place the cooktop centrally in the in "Building-in dimensions". Observe cut-out. -
Page 50: Flush-Fitted Cooktops
Flush-fitted cooktops The cooktop can be installed Installation notes – in a suitable cut-out in a natural stone Flush fit cooktops are only suitable for worktop. installation in natural stone (granite, marble), tiled or solid wood worktops. – in a suitable cut-out in a tiled or solid Certain models are suitable for wood worktop with a wooden building into glass worktops - please... -
Page 51: Building-In Dimensions
Flush-fitted cooktops Building-in dimensions KM 6364-1 a Front d Stepped cut-out b Building-in depth e Con@ctivity connection c Mains connection box The mains connection cable (1440 mm long) is supplied separately with the cooktop. Cut-out dimensions for granite or marble worktops. Please take careful note of the inset diagram. -
Page 52: Installation
Flush-fitted cooktops Installation As the ceramic glass and the worktop cut-out have a certain dimensional Granite and marble worktops tolerance, the size of gap can vary (min. 1 mm). a Worktop b Cooktop c Gap As the ceramic glass and the worktop cut-out have a certain dimensional tolerance, the size of gap ... - Page 53 Flush-fitted cooktops Preparing the worktop Make the worktop cut-out as shown in "Building-in dimensions". Observe the safety distances (see "Safety distances"). Solid wood, tiled and glass worktops: Fix the wooden frame 7 mm below the top edge of the worktop (see diagram).
-
Page 54: Electrical Connection
AC 230 V, 50 Hz repair work is dangerous to users. The voltage and rated load are given on Miele cannot be held liable for the data plate. Please ensure these damage or injury caused by incorrect match the household mains supply. -
Page 55: Wiring Diagram
If the mains connection cable needs to be replaced, it must be replaced with a special connection cable, type H 05 VV- F (PVC insulated), available from Miele, in order to avoid a hazard. The connection data is given on the data plate. -
Page 56: Service
Service Contact in case of fault In the event of any faults which you cannot remedy yourself, please contact Miele. Contact information for Miele can be found at the end of this document. Please quote the model and serial number of your appliance when contacting Miele. - Page 59 Miele Experience Centre South Melbourne: Freemans Bay, Auckland 1011 206-210 Coventry Street South Melbourne, VIC 3205 Miele Experience Centre Auckland: Miele Experience Centre and Office Sydney: 8 College Hill 3 Skyline Place Freemans Bay, Auckland 1011 Frenchs Forest, NSW 2086 Telephone:...
- Page 60 KM 6325-1 / KM 6362-1 / KM 6363-1 / KM 6364-1 en-AU M.-Nr. 10 193 280 / 02...
