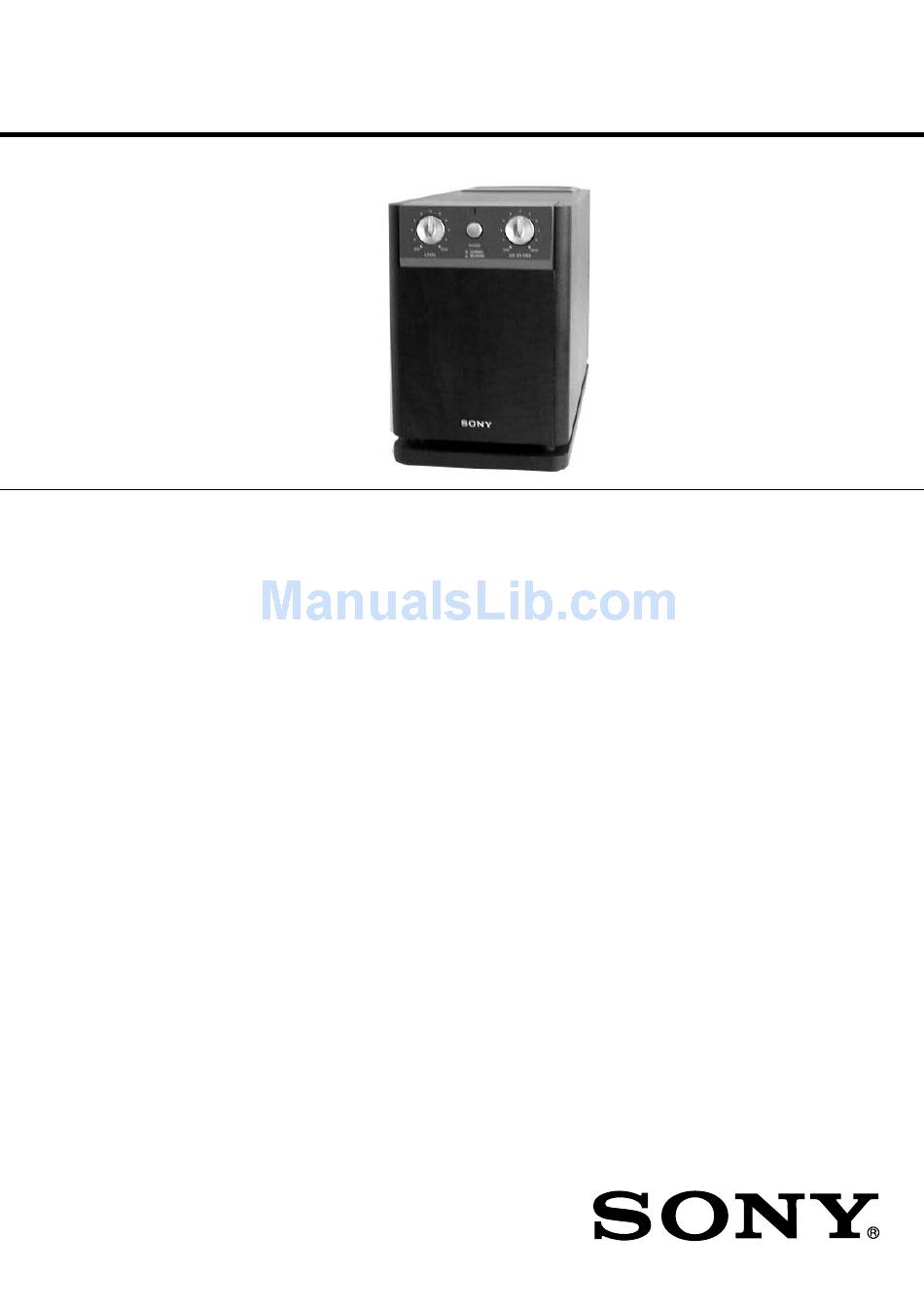

SERVICE MANUAL
Ver 1.0 2001.09

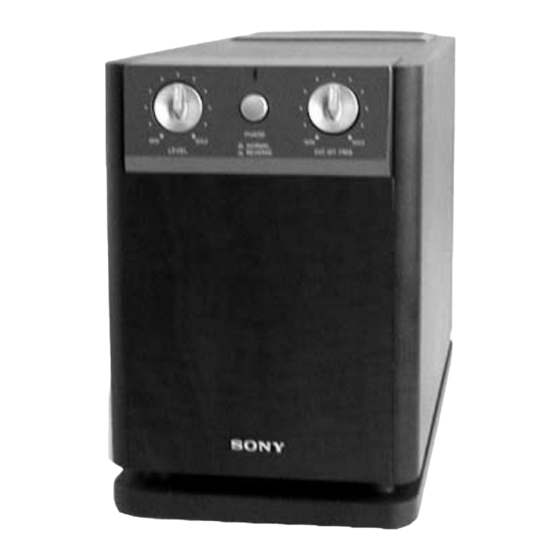

SA-WEX200 is sub woofer in CMT-EX200.
Amplifier section
For the U.S.model
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
With 4 ohms loads,from 50 – 150 Hz;rated 30 watts
per channel minimum RMS power,with no more than
10%total harmonic distortion from 250 milli watts to
rated output.
Canadian model:
Continuous RMS power output (reference):
30 watts
(4 ohms at 55 Hz,10%
THD)
Speaker system
Active sub woofer
(magnetically shielded
design)
Sony Corporation
9-873-267-01
2001I0200-1
Home Audio Company
© 2001.9
Shinagawa Tec Service Manual Production Group
SA-WEX200
SPECIFICATION
Speaker unit
Practical maximum output 30 watts
Reproduction frequency range
High frequency cut-off range
Phase selector
Input
Output
Power requirements
Power consumption
Dimensions
Mass
Design and specifications are subject to change
without notice.
US Model
Canadian Model
10 cm dia,cone type
woofer (x2)
45 – 150 Hz
70 – 150 Hz
Normal,reverse
SPEAKER INPUT:
Input terminal
SPEAKER OUTPUT:
Output terminal
120 V AC,60 Hz
40 watts
Approx.150 x 220 x
345 mm (w/h/d,incl.
projecting parts and
controls)
Approx.6.2 kg
ACTIVE SUBWOOFER
1

Advertisement

loading

Summary of Contents for Sony SA-WEX200

  • Page 1 SA-WEX200 SERVICE MANUAL US Model Canadian Model Ver 1.0 2001.09 SA-WEX200 is sub woofer in CMT-EX200. SPECIFICATION Amplifier section Speaker unit 10 cm dia,cone type woofer (x2) Practical maximum output 30 watts For the U.S.model Reproduction frequency range AUDIO POWER SPECIFICATIONS 45 –...
  • Page 2: Table Of Contents

    CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU PUBLISHED BY SONY.
  • Page 3: General

    SA-WEX200 SECTION 1 SECTION 2 GENERAL DIAGRAMS This section is extracted from • Location of controls instruction manual. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) Sub Woofer For printed wiring boards.
  • Page 4: Printed Wiring Board

    SA-WEX200 2-2. PRINTED WIRING BOARD • See page 3 for Circuit Boards Location. MAIN BOARD INPUT BOARD D452 R111 R118 IC101 D453 CN203M D104 C704 R402 C403 CN301 R401 C703 D401 C405 – CN301W D403 D103 F402 F401 C406 TM101...
  • Page 5: Schematic Diagram

    SA-WEX200 2-3. SCHEMATIC DIAGRAM...
  • Page 6: Exploded View

    SA-WEX200 SENTION 3 SECTION 4 EXPLODED VIEWS FRONT INPUT ELECTRICAL PARTS LIST NOTE: • Items marked “*” are not stocked since they NOTE: • -XX and -X mean standardized parts, so they The components identified by mark 0 or dotted line with mark •...
  • Page 7 SA-WEX200 MAIN POWER AMP INPUT Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks D502 8-719-981-97 DIODE MTZJ-3.0A C406 1-104-665-11 ELECT 100uF D503 8-719-991-33 DIODE 1SS133T-77 C451 1-126-941-11 ELECT 470uF D504 8-719-200-82 DIODE 11ES2 C452 1-126-941-11 ELECT 470uF <...
  • Page 8 SA-WEX200 POWER AMP Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < IC > ************* HARDWARE LIST IC851 8-759-331-41 IC LM3876TF ************* < TRANSISTOR > 7-685-887-01 SCREW +BVTT 4X25 (S) 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3...
  • Page 9 SA-WEX200 MEMO Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks...
  • Page 10 SA-WEX200 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page.
