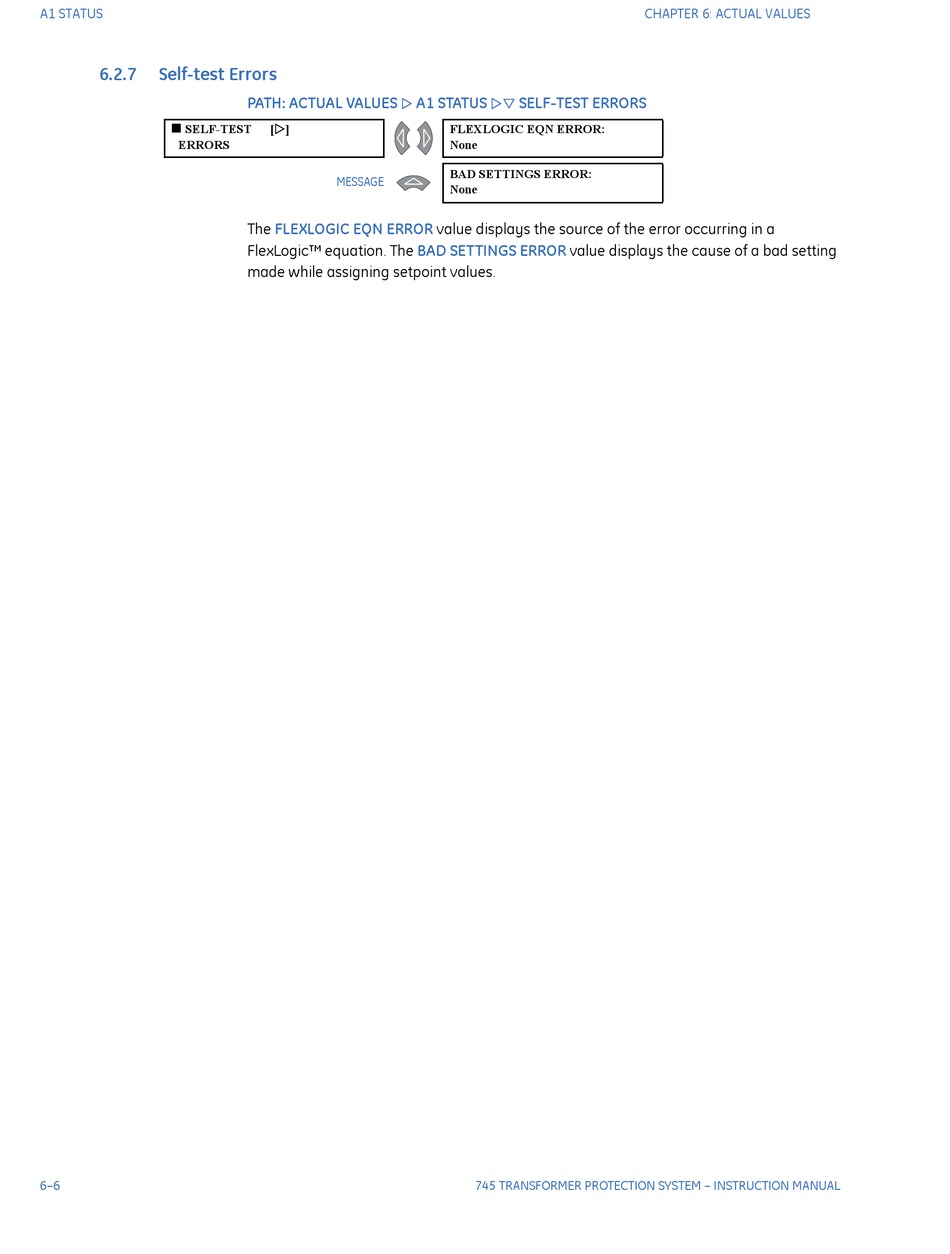

GE 745 Instruction Manual page 214

A1 STATUS
6.2.7 Self-test Errors

SELF-TEST
ERRORS
6–6
PATH: ACTUAL VALUES A1 STATUS

[]
MESSAGE
The FLEXLOGIC EQN ERROR
FlexLogic™ equation. The BAD SETTINGS ERROR
made while assigning setpoint values.
SELF-TEST ERRORS

FLEXLOGIC EQN ERROR:
None
BAD SETTINGS ERROR:
None
value displays the source of the error occurring in a
value displays the cause of a bad setting
