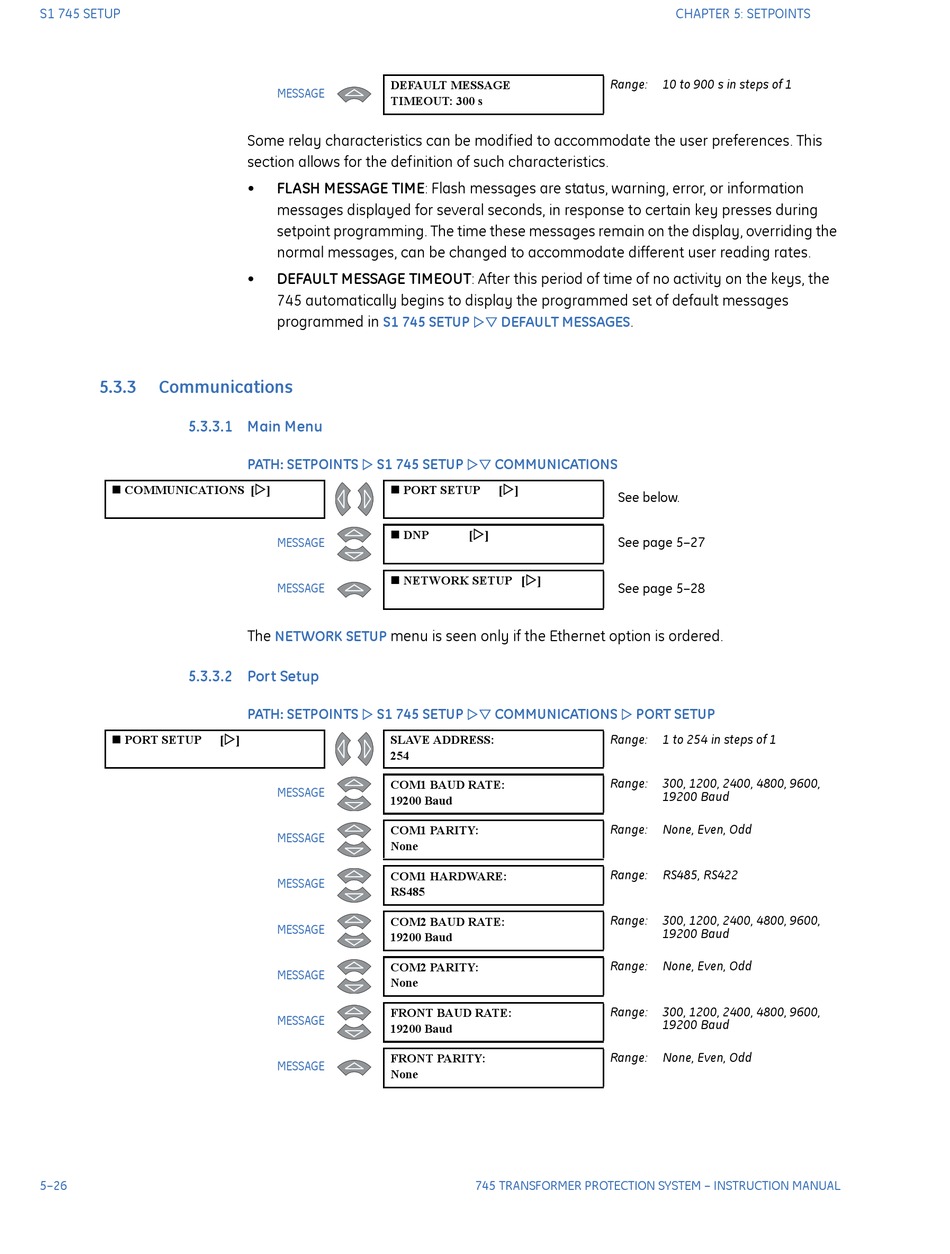

GE 745 Instruction Manual page 122

S1 745 SETUP
5.3.3 Communications
5.3.3.1 Main Menu

COMMUNICATIONS [
5.3.3.2 Port Setup

PORT SETUP
5–26
DEFAULT MESSAGE
MESSAGE
TIMEOUT: 300 s
Some relay characteristics can be modified to accommodate the user preferences. This
section allows for the definition of such characteristics.
• FLASH MESSAGE TIME: Flash messages are status, warning, error, or information
messages displayed for several seconds, in response to certain key presses during
setpoint programming. The time these messages remain on the display, overriding the
normal messages, can be changed to accommodate different user reading rates.
• DEFAULT MESSAGE TIMEOUT: After this period of time of no activity on the keys, the
745 automatically begins to display the programmed set of default messages
programmed in
S1 745 SETUP
PATH: SETPOINTS S1 745 SETUP

 
]

MESSAGE

MESSAGE
The menu is seen only if the Ethernet option is ordered.
NETWORK SETUP
PATH: SETPOINTS S1 745 SETUP


[ ] SLAVE ADDRESS:
254
COM1 BAUD RATE:
MESSAGE
19200 Baud
COM1 PARITY:
MESSAGE
None
COM1 HARDWARE:
MESSAGE
RS485
COM2 BAUD RATE:
MESSAGE
19200 Baud
COM2 PARITY:
MESSAGE
None
FRONT BAUD RATE:
MESSAGE
19200 Baud
FRONT PARITY:
MESSAGE
None
DEFAULT MESSAGES

COMMUNICATIONS


PORT SETUP [ ]

DNP [ ]

NETWORK SETUP [ ]
COMMUNICATIONS

745 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL
CHAPTER 5: SETPOINTS
Range: 10 to 900 s in steps of 1
.
See below.
See page 5–27
See page 5–28
PORT SETUP

Range: 1 to 254 in steps of 1
Range: 300, 1200, 2400, 4800, 9600,
19200 Baud
Range: None, Even, Odd
Range: RS485, RS422
Range: 300, 1200, 2400, 4800, 9600,
19200 Baud
Range: None, Even, Odd
Range: 300, 1200, 2400, 4800, 9600,
19200 Baud
Range: None, Even, Odd
