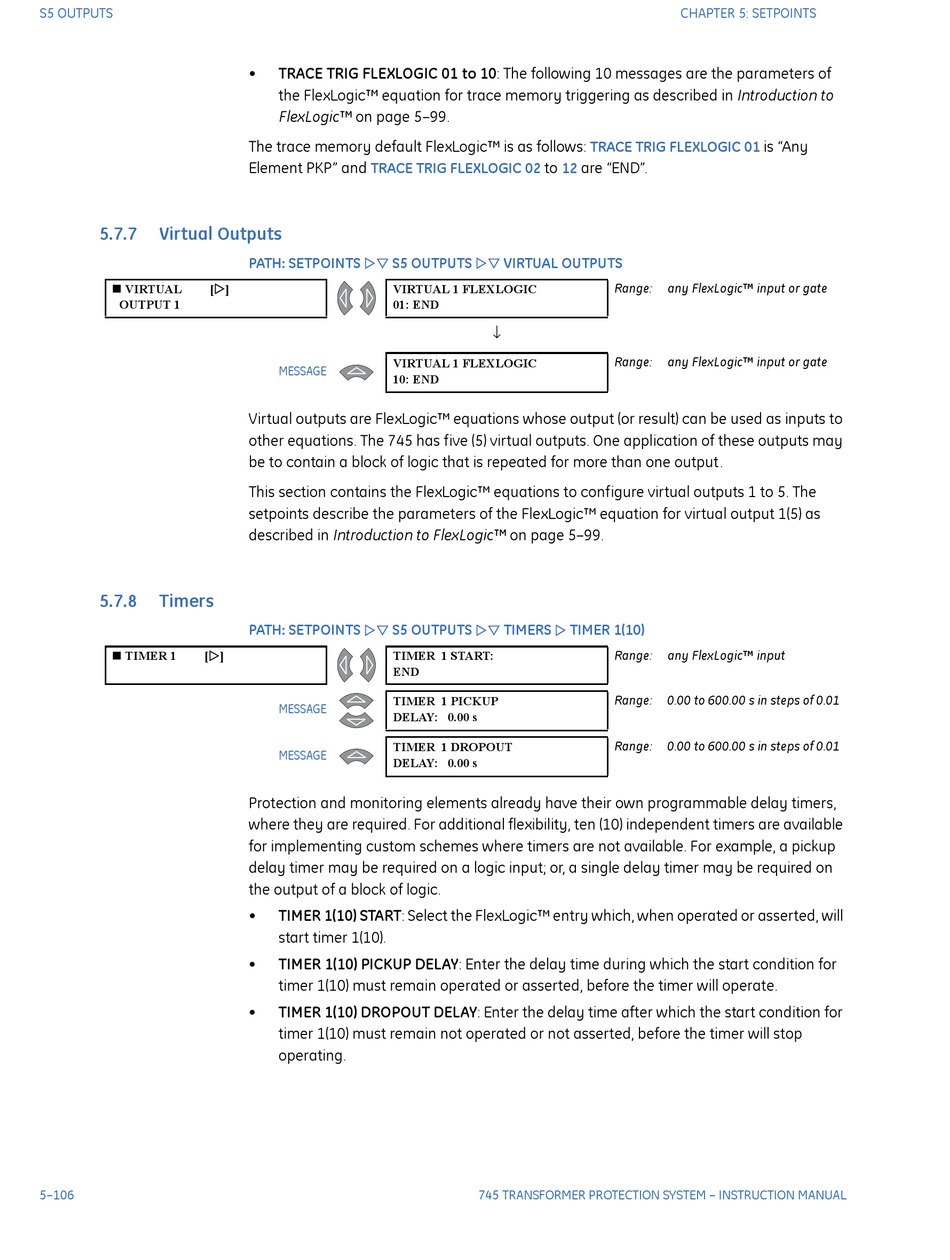

• TRACE TRIG FLEXLOGIC 01 to 10: The following 10 messages are the parameters of
the FlexLogic™ equation for trace memory triggering as described in Introduction to
FlexLogic™ on page 5–99.
The trace memory default FlexLogic™ is as follows:
Element PKP" and TRACE TRIG FLEXLOGIC 02
PATH: SETPOINTS S5 OUTPUTS

VIRTUAL 1 FLEXLOGIC
01: END
VIRTUAL 1 FLEXLOGIC
MESSAGE
10: END
Virtual outputs are FlexLogic™ equations whose output (or result) can be used as inputs to
other equations. The 745 has five (5) virtual outputs. One application of these outputs may
be to contain a block of logic that is repeated for more than one output.
This section contains the FlexLogic™ equations to configure virtual outputs 1 to 5. The
setpoints describe the parameters of the FlexLogic™ equation for virtual output 1(5) as
described in Introduction to FlexLogic™ on page 5–99.
PATH: SETPOINTS S5 OUTPUTS

TIMER 1 START:
END
TIMER 1 PICKUP
MESSAGE
DELAY: 0.00 s
TIMER 1 DROPOUT
MESSAGE
DELAY: 0.00 s
Protection and monitoring elements already have their own programmable delay timers,
where they are required. For additional flexibility, ten (10) independent timers are available
for implementing custom schemes where timers are not available. For example, a pickup
delay timer may be required on a logic input; or, a single delay timer may be required on
the output of a block of logic.
• TIMER 1(10) START: Select the FlexLogic™ entry which, when operated or asserted, will
start timer 1(10).
• TIMER 1(10) PICKUP DELAY: Enter the delay time during which the start condition for
timer 1(10) must remain operated or asserted, before the timer will operate.
• TIMER 1(10) DROPOUT DELAY: Enter the delay time after which the start condition for
timer 1(10) must remain not operated or not asserted, before the timer will stop
operating.
