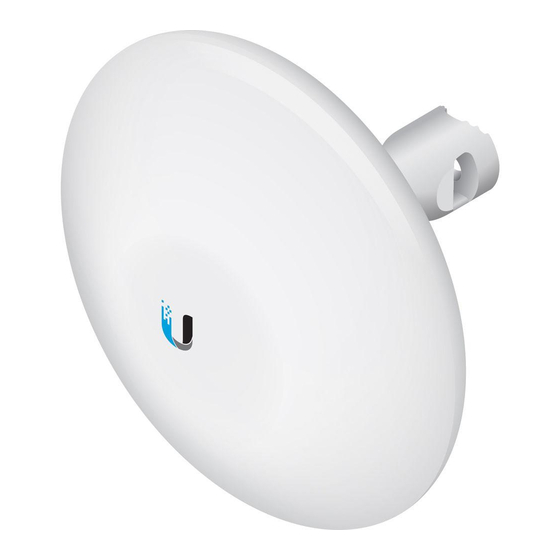

- Page 1 High-Performance 16 dBi airMAX ® Model: NBE-M5-16...
-
Page 2: Package Contents
Quick Start Guide (24V, 0.5A) TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable™ is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. -
Page 3: Hardware Overview
AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable, TOUGHCable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Hardware Overview LEDs... -
Page 4: Leds
The Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Power can be provided by any of the following: • PoE Adapter (included) • Ubiquiti Networks TOUGHSwitch ™ • Ubiquiti Networks EdgeRouter ™... -
Page 5: Hardware Installation
Hardware Installation The NanoBeam can be mounted on a pole or to a wall. Perform the steps for the appropriate installation: Pole-Mount 1. Insert the Ball Joint Mount into the Lock Ring with the threads of the Lock Ring facing the ball joint. 2. - Page 6 3. Wrap the Metal Strap around the pole. Use a 7 mm socket drive or screwdriver to turn the screw clockwise and securely fasten the strap to the pole. 4. Attach the NanoBeam to the Ball Joint Mount and turn the Lock Ring to secure it.
-
Page 7: Installation Instructions
Wall-Mount The NanoBeam must be mounted directly to a wood stud or other structurally stable surface to avoid damage to the mounting hole when you adjust the aim. Optional Accessory To enhance stability, you can use the NanoBeam Wall Mount Kit, model NBE-WMK (sold separately). - Page 8 4. If you are using the optional NanoBeam Wall Mount Kit, skip to step b. a. To attach the Ball Joint Mount to the wall, insert a fastener (not included) through the center of the ball joint, and into the wall. Securely tighten the fastener. Proceed to step 5.
- Page 9 5. Attach the NanoBeam to the Ball Joint Mount and turn the Lock Ring to secure it. Keep the Lock Ring loose enough to allow the NanoBeam to pivot for aiming. Aiming 1. Ensure the opening of the Ethernet cable is pointed towards the ground.
- Page 10 Connecting to the PoE Adapter 1. Remove the port cover by pressing down the center of the cover and sliding the cover out. 2. Connect an Ethernet cable to the Ethernet port. 3. Replace the port cover.
- Page 11 4. Connect the other end of the Ethernet cable from the NanoBeam to the Ethernet port labeled POE on the PoE Adapter. 5. Connect an Ethernet cable from your LAN or computer to the Ethernet port labeled LAN on the PoE Adapter. 6.
- Page 12 4. The login screen will appear. Enter ubnt in the Username and Password fields. Select your Country and Language. You must agree to the Terms of Use and the Ubiquiti Firmware License Agreement to use the product. Click Login. Note: For the Country setting, U.S.
-
Page 13: Installer Compliance Responsibility
Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements. The Output Power field is provided to the professional installer to assist in meeting regulatory requirements. -
Page 14: Specifications
Specifications NBE-M5-16 Dimensions (Mount Included) 140 x 140 x 54 mm (5.51 x 5.51 x 2.13 in) Weight (Mount Included) 320 g (11.3 oz) Operating Frequency Worldwide: 5170 - 5875 MHz USA: 5725 - 5850 MHz Gain 16 dBi Networking Interface (1) 10/100 Ethernet Port Enclosure Outdoor UV Stabilized Plastic... -
Page 15: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 16: Limited Warranty
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. -
Page 17: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 18 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 19: Industry Canada
Industry Canada CAN ICES-3(B)/NMB-3(B) To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that... - Page 20 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 21 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 22: Declaration Of Conformity
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC. -
Page 23: Online Resources
NETWORKS device, è conforme ai requisiti essenziali ed alle altre [Italian] disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem. - Page 24 Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, EdgeRouter, NanoBeam, TOUGHCable, and TOUGHSwitch are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
