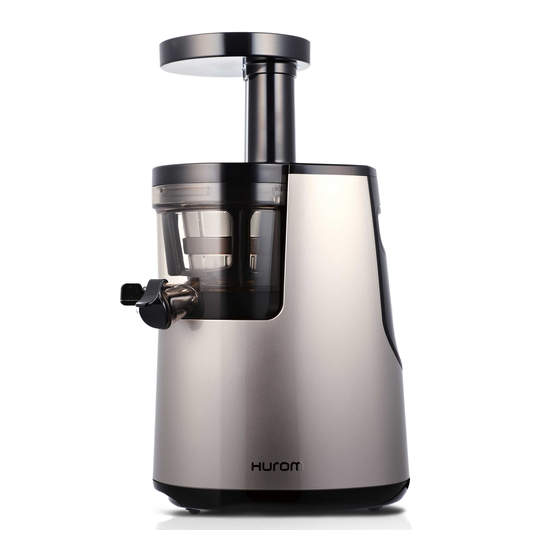

- Page 1 HH SERIES MANUAL Product Contents HH Series 2 4PJ12235-HH series_V.01.indd 1 2013-06-07 오후 7:40:43...
-
Page 2: Table Of Contents
Hurom Juicer Manual For Household Use (Warranty Included) 1 Read “Precautions for safe use (Page 4)” carefully and use the appliance properly. 2 Save the manual and keep it in a convenient location for future reference. 3 Check if the voltage indicated on the base of the appliance corresponds to the local voltage before you connect the appliance. - Page 3 Soy milk and soy juice It’s easy to make soy milk and soy juice with Hurom’s all new juice cap. Now you can simply adjust the thickness and portion of the mixture by operating the juicer with the juice cap closed.
-
Page 4: General Description And Parts Names
GENERAL DESCRIPTION AND PARTS NAMES HOPPER PULP CONTAINER AUGER JUICE CONTAINER STRAINER CLEANING BRUSH SPINNING BRUSH SMALL CLEANING BRUSH CHAMBER PUSHER BASE 2 4PJ12235-HH series_V.01.indd 4 2013-06-07 오후 7:40:49... -
Page 5: Specific Terms For Parts
1 Pusher, 1 Hopper, 1 Auger, 1 Stainer, 1 Spinning brush, 1 Chamber, 1 Base, 1 Juice container, ATTACHMENT 1 Pulp container, 1 Small cleaning brush, 1 Cleaning brush, 1 Manual www.hurom.com I 2 4PJ12235-HH series_V.01.indd 5 2013-06-07 오후 7:40:50... -
Page 6: Precautions For Safe Use
PRECAUTIONS FOR SAFE USE All users of this appliance must read and understand this safety precaution before operating. WARNING Hazards or unsafe practices which could result in serious personal injury or death. CAUTION Hazards or unsafe practices which could result in minor personal injury or appliance damage. -
Page 7: Warnings And Cautions
DO NOT USE OTHER THAN 230V - 240V AC. It may cause electric shock, fire or abnormal performance. If the voltage is different, it may shorten the life of the motor or cause a failure. www.hurom.com 2 4PJ12235-HH series_V.01.indd 7 2013-06-07 오후 7:40:52... - Page 8 WARNINGS AND CAUTIONS CAUTION Hazards or unsafe practices which could result in minor personal injury or appliance damage. WHEN PLACING INGREDIENTS INTO THE HOPPER CHUTE, ONLY USE THE PUSHER PROVIDED. It may cause injury or failure. DO NOT OPERATE WITHOUT LOCKING THE HOPPER PROPERLY. It may cause an injury or a failure.
- Page 9 WHEN MOVING THE APPLIANCE, ENSURE TO MOVE IT HOLDING GRIPS TIGHTLY AT THE BASE BOTTOM WITH BOTH HANDS. If attempting to hold chamber or the edge of the base, the base falls causing an injury or failure. www.hurom.com 2 4PJ12235-HH series_V.01.indd 9 2013-06-07 오후 7:40:54...
-
Page 10: Slow Juicer Assembly
SLOW JUICER ASSEMBLY STEP Align the chamber arrow [ ] with hopper arrow OPEN] and turn the hopper clockwise until it clicks so that the hopper arrow [ CLOSE] aligned with chamber arrow[ OPEN STEP Make sure to press the auger down into the strainer in STEP 2. -
Page 11: Slow Juicer Assembly In Detail
Firmly insert the extraction seal located at the bottom of the chamber into the pulp outlet. Make sure the outer groove of the chamber is completely aligned with the base ridge. Base ridge Extraction seal Chamber outer groove www.hurom.com I 2 4PJ12235-HH series_V.01.indd 11 2013-06-07 오후 7:41:05... -
Page 12: How To Use The Appliance
HOW TO USE THE APPLIANCE REAR VIEW Wash the fruits and/or vegetables and cut them into small pieces that can fit into the hopper chute. Place the suitable pieces into hopper chute slowly and press with a pusher. Use fresh fruits and vegetable for juicing as they contain more juice themselves. -
Page 13: Juice Cap And Extraction Seal
This is the pulp stopper made of silicone at the bottom of the chamber. Always close the extraction seal before every use as shown below. For cleaning, open the extraction seal and wash out the food that has been trapped. (Page 16) CLOSED Extraction seal www.hurom.com 2 4PJ12235-HH series_V.01.indd 13 2013-06-07 오후 7:41:12... - Page 14 WHEN THE AUGER IS STOPPED DURING OPERATION (REVERSE/REV BUTTON) Click the [Reverse/REV] button on the operating switch and stop the appli- ance. Stop Press the [Reverse/REV] on the operat- ing switch for 3~5 seconds and release it. Repeat this process 2~3 times. Reverse button pushes the ingredients back up.
-
Page 15: Important Safeguards For Use
It may cause the hopper to become stuck and difficult to open. NOTE Frozen fruit or withered ingredients that have been stored in the refrigerator for a long time may produce less juice or may be difficult to juice. www.hurom.com 2 4PJ12235-HH series_V.01.indd 15 2013-06-07 오후 7:41:21... -
Page 16: Disassembling, Cleaning And Care
DISASSEMBLING, CLEANING AND CARE FIGURE IN ORDER Juice outlet 2 4PJ12235-HH series_V.01.indd 16 2013-06-07 오후 7:41:29... - Page 17 Always wash the chamber set immediately after use. Without prompt cleaning, the pulp residue may dry and crust on the parts, making it difficult to disassemble or clean at a later time. Improper cleaning may also cause decreased performance of the appliance. www.hurom.com 2 4PJ12235-HH series_V.01.indd 17...
-
Page 18: Disassembling And Cleaning The Chamber
DISASSEMBLING AND CLEANING THE CHAMBER juice cap seal chamber seal Remove the juice cap seal and the chamber seal. Open juice cap first. Hold the chamber and juice cap with one hand and peel off the juice cap seal with the other hand. Remove the chamber seal by pinching and twisting it off with two fingers. -
Page 19: Sterilization And Easy Cleaning System
[ON] button. water. It is not necessary to disassemble and wash the chamber every time for a different recipe. However, always disassemble and wash the chamber set after the last juicing. www.hurom.com 2 4PJ12235-HH series_V.01.indd 19 2013-06-07 오후 7:41:38... -
Page 20: Disassembling And Cleaning The Spinning Brush
DISASSEMBLING AND CLEANING THE SPINNING BRUSH Remove the spinning brush from strainer. Detach the silicone brush from the spinning brush. Spinning brush Silicone brush As shown in the figure, hold the outer part of silicone brush and pull it out gently in the direction of the arrow. -
Page 21: Assembling The Spinning Brush
Make sure the silicone brush is placed firmly into the groove by holding the top and bottom part of the ‘outer wing’ and pulling it up and down in op- posite directions. www.hurom.com 2 4PJ12235-HH series_V.01.indd 21 2013-06-07 오후 7:41:43... -
Page 22: Assembling The Chamber Seal
ASSEMBLING THE CHAMBER SEAL Hold the chamber seal by pinching it between the thumb and index finger. As shown to the left in the dotted circle, let the pro- truding part on the chamber seal face upward when you hold it by pinching it between the thumb and index finger. -
Page 23: Assembling The Juice Cap Seal
Be careful not to drop the chamber. Arrange the seal for a complete fit. If the seal is not placed correctly, it may cause juice leakage. www.hurom.com 2 4PJ12235-HH series_V.01.indd 23 2013-06-07 오후 7:41:46... -
Page 24: Troubleshooting
Please check the details below before contacting Technical Support for repair or service. If you need additional information, please contact the local Customer Care Center or visit www.hurom.com. When applying for after-sales service, please have the manufacturer’s serial number or bar code available. - Page 25 SPECIFICATIONS APPLIANCE STANDARDS PRODUCT NAME Hurom Slow Juicer MODEL NAME HH Series RATED VOLTAGE 230-240 V RATED FREQUENCY 50 Hz RATED POWER 150 W CONSUMPTION RPM (REVOLUTIONS 70 rpm PER MINUTE) CORD LENGTH 1.4 m이이 MOTOR Single-phase induction motor FUSE...
-
Page 26: Warranty
Hurom provides warranty for ten (10) years for the motor and two (2) years for other parts from the date of purchase by the original purchaser. Coverage is valid only with proof of purchase from an Authorized Local Distributor. (No international... - Page 27 MEMO www.hurom.com 2 4PJ12235-HH series_V.01.indd 27 2013-06-07 오후 7:41:48...
- Page 28 2 4PJ12235_V.01 www. hurom.com Copyright© All Rights Reserved by HUROM 2 4PJ12235-HH series_V.01.indd 28 2013-06-07 오후 7:41:48...
