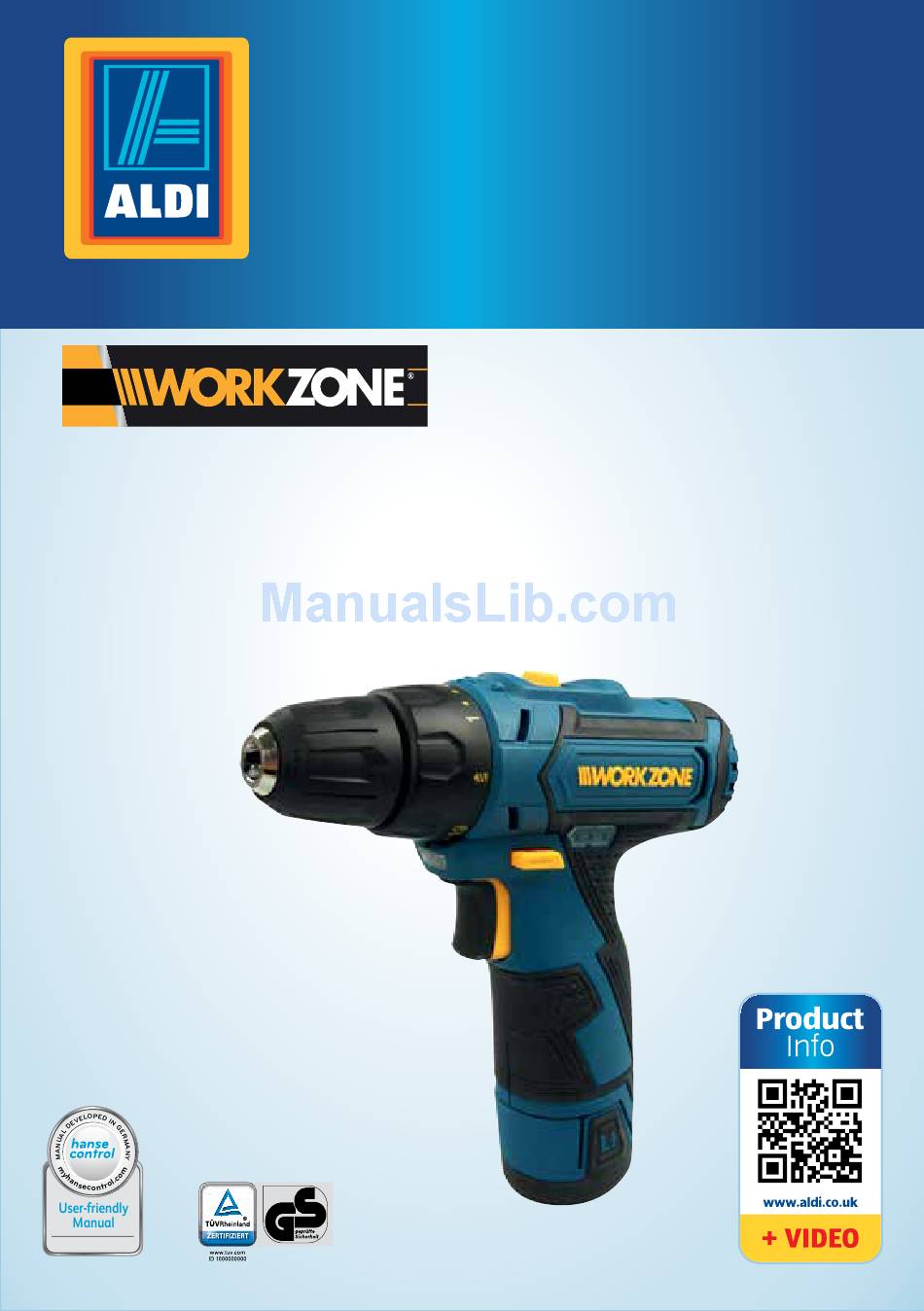

- Page 1 User Manual Spend a little Live a lot. GUIDE 12 V LITHIUM-ION CORDLESS DRILL WB 12-2 ID: #05007 Original user manual...
- Page 2 Try it out now Just scan the QR code with your smartphone and find out more about the Aldi product you have purchased.* Your Aldi Service Portal All details mentioned above can also be found in the Aldi Service Portal at www.aldi.co.uk.
-
Page 3: Table Of Contents
Contents Overview ......................4 Use ........................5 Product content/device parts ............... 6 General information ..................7 Reading and storing the user manual ..............7 Explanation of symbols ..................7 Safety ......................9 Proper use .......................9 Safety notes ......................9 Preparation ....................15 Checking the cordless drill and product contents ........15 Charging the rechargeable battery .............. -
Page 6: Product Content/Device Parts
Product contents/device parts Quick-action drill chuck Torque adjustment ring Gear switch Rechargeable battery charge indicator Right-handed/left-handed rotation selector Battery release button Rechargeable battery On/Off switch with speed control LED work light Charger Drill bit Magnetic bit holder Bits Storage case This instruction manual can also be downloaded as a PDF from our website www.meister-werkzeuge.de. -
Page 7: General Information
General information General information Reading and storing the instruction manual This user manual accompanies the 12 V Lithium-ion cordless drill WB 12-2. It contains important information on start-up and handling. Before using the cordless drill, read the user manual carefully. This par- ticularly applies for the safety notes. - Page 8 General information Do not expose the rechargeable battery to temperatures above 50 °C! max. 50°C Avoid contact between the rechargeable battery and water! Do not throw the rechargeable battery in water! Danger of explosion! Do not throw the rechargeable battery in the toilet. Do not throw the rechargeable battery in fire! Danger of explosion! The mains adapter complies with protection class 2.
-
Page 9: Safety
Safety Direct voltage. Important! Read the instruction manual for the charger! Safety Proper use The cordless drill is exclusively designed for drilling and driving screws into wood, plastic and metal. It is only intended for private use and is not suitable for commercial use. -
Page 10: Electrical Safety
Safety Electrical safety a) The connector plug for the power tool must fit in the socket. The plug may not be modified in any way. Do not use any adapter plugs in com- bination with power tools with protective earthing. Plugs that have not been modified and sockets with the proper fit reduce the risk of an electric shock. - Page 11 Safety d) Remove all adjusting tools or spanners before you switch the power tool on. A tool or spanner in contact with a rotating part of the device may result in injury. e) Avoid an abnormal posture. Assume a stable position and keep your balance at all times.
- Page 12 Safety Using and handling the cordless tool a) Only charge the rechargeable batteries in chargers recommended by the manufacturer. Chargers that are only suitable for certain rechargeable battery types pose a risk of fire if used with other rechargeable batteries. b) Only use the rechargeable batteries designated for use in power tools.
- Page 13 Safety Additional safety notes for chargers NOTICE! Risks! This device is not intended to be used by persons with impaired physical, sensory or mental abilities or who lack experience and/ or knowledge unless they are supervised by a person responsible for their safety or have been instructed by such a person on how to use the device.
- Page 14 Safety g) Only use the charger for private use in connection with a normal household socket. Never attempt to connect the charger with a mains socket with a different voltage rating. h) Always make sure there is adequate ventilation when recharging the re- chargeable battery.
-
Page 15: Preparation
Preparation Further safety notes NOTICE! Risk of damage! Improper handling of the cordless drill or rechargeable battery may result in damage to the cordless drill. − Never place the cordless drill or the accessories on or near hot surfaces (e.g. radiators). −... -
Page 16: Charging The Rechargeable Battery
Preparation Charging the rechargeable battery WARNING! Risk of electric shock! A faulty electrical installation or excessive mains voltage may result in an electric shock. − Only connect the charger to an easily accessible socket so that you can quickly disconnect it from the mains in case of a failure. NOTICE! Risk of damage! Failure to properly charge the rechargeable battery may damage... -
Page 17: Operation
Operation 7. Insert the rechargeable battery in the cordless drill and hold the rechargeable bat- tery firmly to ensure that you do not injure yourself when the rechargeable battery release mechanism locks into place. The cordless drill is now operational. Operation WARNING! Risk of injury! -
Page 18: Inserting Tools
Operation Inserting tools 1. To clamp in one of the drill bits or the magnetic bit holder in the quick- , turn it counterclockwise (see fig. D). This will open the action drill chuck quick-action drill chuck. 2. Select • the suitable drill bit and insert it in the quick-action drill chuck. •... - Page 19 Operation 6. Set the rotation direction of of the quick-action drill chuck using the right-handed/ left-handed rotation selector : Select right-handed rotation (arrow pointing to- wards the quick-action drill chuck) so that the quick-action drill chuck turns clockwise. Select left-handed rotation (arrow pointing away from the quick-action drill chuck) so that the quick-action drill chuck turns counterclockwise.
-
Page 20: Removing A Blockage
Operation 9. First gently push the On/Off switch to start the cordless drill. If you push the On/Off switch, the LED work light will turn on to illuminate poorly lit work areas. 10. Afterwards, push the On/Off switch while applying more pressure. The rechargeable battery may heat up depending on the load. -
Page 21: Cleaning
Cleaning Cleaning NOTICE! Risk of damage! Using unsuitable cleaners could damage the cordless drill and accessories. − Do not use any aggressive cleaners, brushes with metal or ny- lon bristles, as well as sharp or metallic cleaning utensils such as knives, hard scrapers and the like. NOTICE! Risk of short circuit! Water that has penetrated the housing may cause a short circuit. -
Page 22: Storage And Transport
Storage and transport Storage and transport NOTICE! Risk of damage! Improper storage or transport of the cordless drill could damage the cordless drill. − Store and transport the cordless drill in a clean, dry and frost- free area where it and the rechargeable battery are protected against direct sunlight. -
Page 23: Troubleshooting
Repairs − Only parts that comply with the original device data and the manufacturer's specifications may be used for repairs. Elec- trical and mechanical parts, which are essential for providing protection against sources of danger, are located in this cord- less drill. -
Page 24: Technical Data
Technical data Technical data Cordless drill Model: WB 12-2 Article number: 5991093 Idle speed: 1st gear: 0 to 400 rpm 2nd gear: 0 to 1300 rpm Quick-action drill chuck capacity: 10 mm Rechargeable battery Rechargeable battery model: WB12-2/1 Voltage: 12 V Capacity: 1.5 Ah Type:... -
Page 25: Noise And Vibration Information
Noise and vibration information Noise and vibration information The specified noise and vibration levels were determined in accordance with the standards EN 60745-1, EN 60745-2-1 and EN 60745-2-2. The specified vibration emission level was measured on the basis of a standardised test procedure and can be used to compare power tools with one another. -
Page 26: Disposal
Disposal Disposal Disposing of the packaging Dispose of the packaging separated into single type materials. Dispose of cardboard and carton as waste paper and foils via the recyclable ma- terial collection service. Disposing of old devices (Applicable in the European Union and other European states with systems for the separate collection of reusable waste materials) Old devices must not be disposed of with household waste! If the cordless drill can no longer be used, every user is required by... - Page 27 EC-Declaration of Conformity Declaration of conformity EC-Declaration of Conformity The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
- Page 28 AFTER SALES SUPPORT meister-service@meister-werkzeuge.de 00800 34 99 67 53...
-
Page 29: Warranty Card
WARRANTY CARD 12V LI-ION CORDLESS DRILL Your details: Name Address E-mail Date of purchase* * We recommend you keep the receipt with this warranty card. Location of purchase Description of malfunction: AFTER SALES SUPPORT Return your completed warranty card together with the faulty product 00800 34 99 67 53 00800 34 99 67 53 meister-service@meister-werkzeuge.de... -
Page 30: Warranty Conditions
Warranty conditions Dear Customer, The ALDI warranty offers you extensive benefits compared to the statutory obligation arising from a warranty: Warranty period: 3 years from date of purchase. 6 months for wear parts and consumables under normal and proper conditions of use (e.g. rechargeable batteries). - Page 31 PRODUCED IN CHINA FOR: ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH ALDI STORES (IRELAND) LTD.
