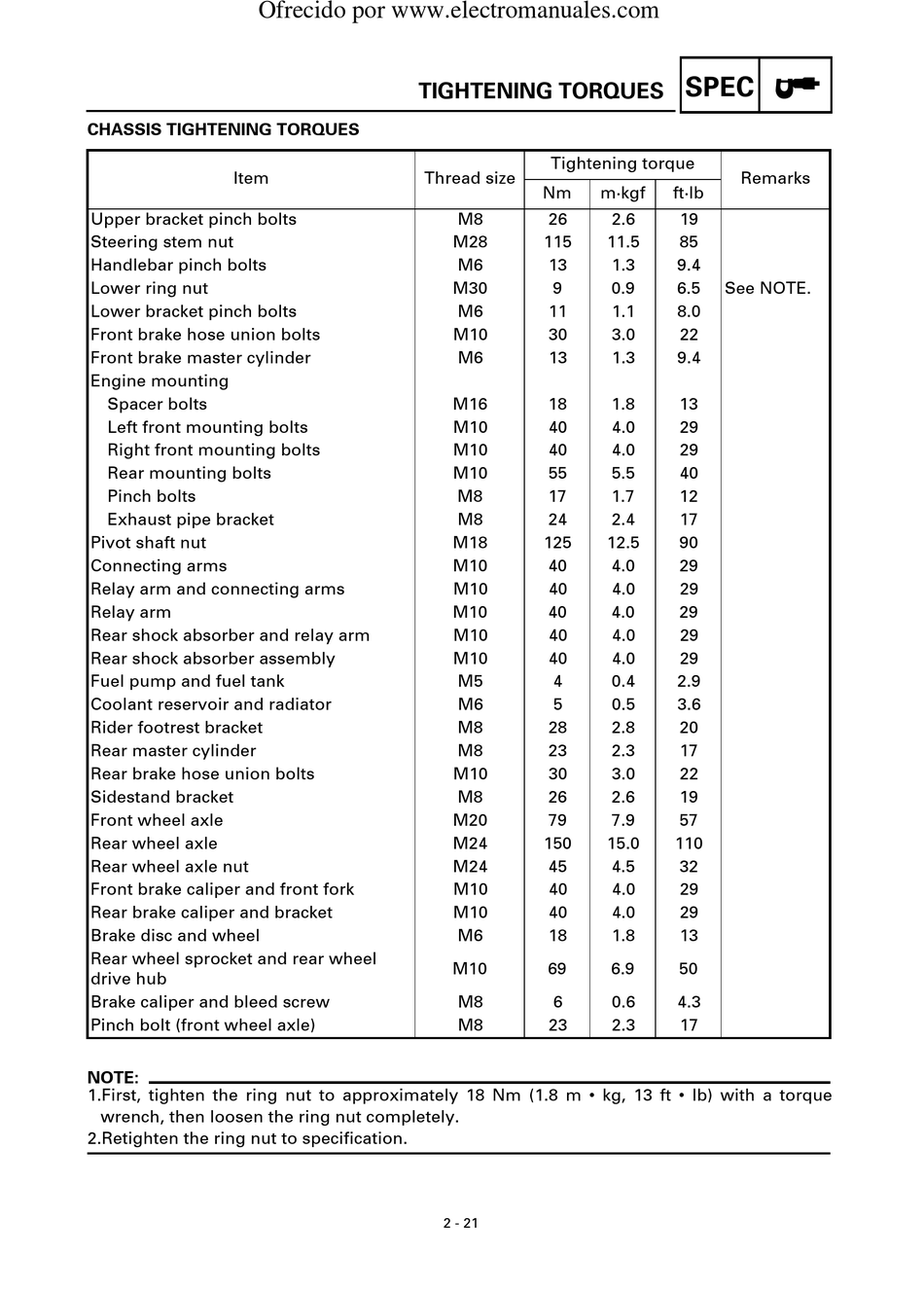

CHASSIS TIGHTENING TORQUES

Item
Upper bracket pinch bolts
Steering stem nut
Handlebar pinch bolts
Lower ring nut
Lower bracket pinch bolts
Front brake hose union bolts
Front brake master cylinder
Engine mounting
Spacer bolts
Left front mounting bolts
Right front mounting bolts
Rear mounting bolts
Pinch bolts
Exhaust pipe bracket
Pivot shaft nut
Connecting arms
Relay arm and connecting arms
Relay arm
Rear shock absorber and relay arm
Rear shock absorber assembly
Fuel pump and fuel tank
Coolant reservoir and radiator
Rider footrest bracket
Rear master cylinder
Rear brake hose union bolts
Sidestand bracket
Front wheel axle
Rear wheel axle
Rear wheel axle nut
Front brake caliper and front fork
Rear brake caliper and bracket
Brake disc and wheel
Rear wheel sprocket and rear wheel
drive hub
Brake caliper and bleed screw
Pinch bolt (front wheel axle)
HINWEIS:
NOTE:
1.First, tighten the ring nut to approximately 18 Nm (1.8 m • kg, 13 ft • lb) with a torque
wrench, then loosen the ring nut completely.
2.Retighten the ring nut to specification.
TIGHTENING TORQUES
Tightening torque
Thread size
Nm
M8 26
M28 115
M6 13
M30 9
M6 11
M10 30
M6 13
M16 18
M10 40
M10 40
M10 55
M8 17
M8 24
M18 125
M10 40
M10 40
M10 40
M10 40
M10 40
M5 4
M6 5
M8 28
M8 23
M10 30
M8 26
M20 79
M24 150
M24 45
M10 40
M10 40
M6 18
M10 69
M8 6
M8 23
2 - 21
SPEC
Remarks
m·kgf ft·lb
2.6 19
11.5 85
1.3 9.4
0.9 6.5 See NOTE.
1.1 8.0
3.0 22
1.3 9.4
1.8 13
4.0 29
4.0 29
5.5 40
1.7 12
2.4 17
12.5 90
4.0 29
4.0 29
4.0 29
4.0 29
4.0 29
0.4 2.9
0.5 3.6
2.8 20
2.3 17
3.0 22
2.6 19
7.9 57
15.0 110
4.5 32
4.0 29
4.0 29
1.8 13
6.9 50
0.6 4.3
2.3 17
