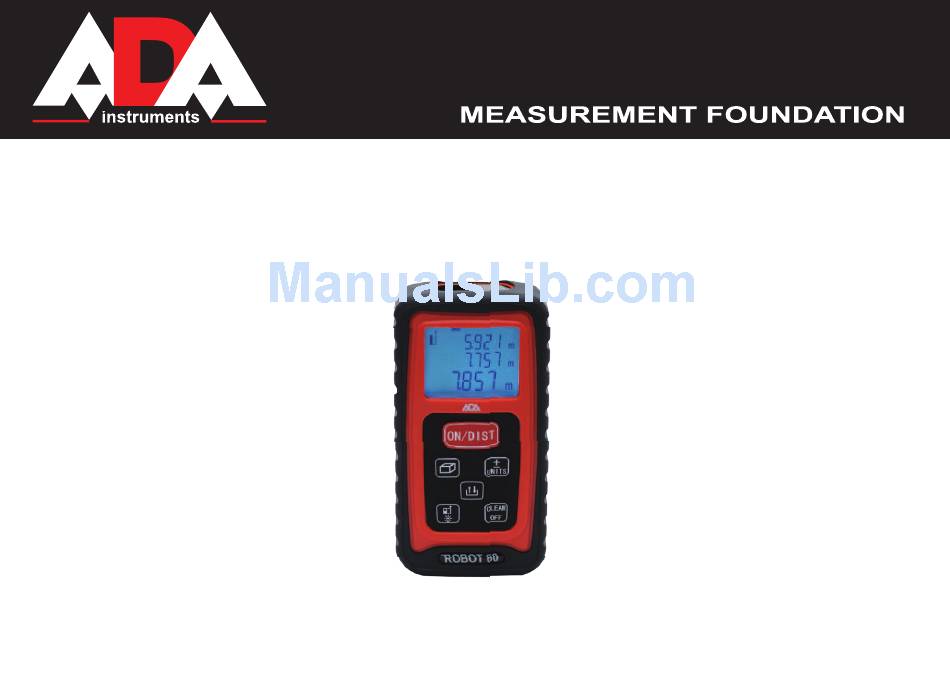

- Page 1 Operating manual Laser distance meter Model: ROBOT-60 Manufacturer: ADAINSTRUMENTS Address: WWW.ADAINSTRUMENTS.COM...
-
Page 2: Table Of Contents
ROBOT Table of contents 1. Safety Instructions ........... .3 . -
Page 3: Safety Instructions
ROBOT Congratulations on the purchase of laser distance meter ADA ROBOT-60! Permitted use · Measuring distances · Computing functions, e.g. areas, volumes, subtractions, Pythagorean calculation · Storing measurements The safety regulations and instructions along with the operating manual should be read carefully before initial operation.The person responsible for the instrument must ensure that equipment is used in accordance with the instructions. -
Page 4: Prohibited Use
ROBOT Prohibited use - Using the instrument without instruction - Using outside the stated limits - Using the instrument in explosive environment (gas station, gas equipment, chemical industry and so on) - Deactivation of safety systems and removal of explanatory and hazard labels - Don’t shoot at others with the laser intentionally - Don’t stare at the laser directly. -
Page 5: Menu Functions
ROBOT Inserting / Replacing Batteries 5 6 7 8 9 Remove the battery cover, insert the battery correctly. Pay attention to cor- rect polarity. Close the battery compartment. Replace the battery when symbol constantly blinks in the display. Batteries should be removed in case of danger of corrosion, if the device will not be used for a long time. -
Page 6: Measurements
ROBOT Selecting Units Press and hold the button (3) for sec. until the desired unit is displayed. Illumination Press and hold the button (4) for seconds to switch the illumination on or off. Clear-Key Cancel the last action. Press button (5). MEASUREMENTS Single distance measurement Press button (1) to activate the laser. -
Page 7: Functions
ROBOT FUNCTIONS Addition / Subtraction Distance measuring. Press button (3): next measurement is added to the previous one. Press button (3): next measurement is substracted from the previous one. The result is displayed in the second line. Previous value is displayed in the previous line. Area Press the button () once.The symbol is displayed. - Page 8 ROBOT Indirect measurement surface and can’t be measured directly. Make sure you adhere to the prescribed sequence of measurement: All target points must be in a horizontal or vertical plane. instrument placed on a wall) or the instrument is mounted on a tripod. The minimum / maximum function can be used.
-
Page 9: Message Codes
ROBOT MESSAGE CODES Storage of constant / historical storage Following mistakes can be corrected. Storage of constant You can store and recall a frequently used val- ue (e.g. height of a room). Measure the desired INFO CAUSE REMEDY distance, press and hold the button (6) until Repeat procedure Temperature too high Cool down instrument... - Page 10 ROBOT TECHNICAL DATA Range, without target, m 0.05 to 60 Accuracy, mm ±1.5* Smallest unit displayed 1 mm Laser class Laser type 635 nm, <1 mW IP rating IP 54 Automatic switch off 3 minutes of inactivity Display illumination Battery life, x AAA >...
-
Page 11: Precautions
ROBOT Measuring conditions Measuring range: the range is limited to 60 m. At night, at dusk and when the target is shadowed the measuring range without target plate is increased. Measuring Surfaces Measuring errors can occur when measuring toward colorless liquids (e.g. water) or dust free glass, styrofoam or similar semi-permeable surfaces. can be increased. -
Page 12: Warranty
ROBOT The instrument is a laser class laser product accortding to DIN IEC 608 5-1:007. It is allowed to use unit without further safety precautions. Warranty This product is warranted by the manufacturer to the original purchaser to be free from defects in material and workmanship under normal use for a period of two () years from the date of purchase. - Page 13 ____________________________________________________________________________ ____________________________________________________________________________ name and model of the instrument Corresponds to ________________________________________________________________ designation of standard and technical requirements Data of issue __________________________________________________________________ Stamp of quality control department Price ___________________________________ Date of sale ________________________ Sold name of commercial establishment...
- Page 14 WARRANTY CARD Name and model of the product ________________________________________________ Serial number ________________date of sale_______________________ Name of commercial organization _____________________stamp of commercial organization Warranty period for the instrument explotation is 1 months after the date of original retail purchase. It extends to the equipment, imported on the RF During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects.
- Page 15 WARRANTY DOESN’T EXTEND TO FOLLOWING CASES: 1. If the standard or serial product number will be changed, erased, removed or wil be unreadable. . Periodic maintenance, repair or changing parts as a result of their normal runout. tioned in the service instruction, without tentative written agreement of the expert provider. 4.
- Page 18 ROBOT MEASUREMENT FOUNDATION...
- Page 19 ROBOT MEASUREMENT FOUNDATION...
- Page 20 ROBOT MEASUREMENT FOUNDATION...
- Page 21 ROBOT 5 6 7 8 9 MEASUREMENT FOUNDATION...
- Page 22 ROBOT MEASUREMENT FOUNDATION...
- Page 23 ROBOT MEASUREMENT FOUNDATION...
- Page 24 ROBOT MEASUREMENT FOUNDATION...
- Page 25 ROBOT MEASUREMENT FOUNDATION...
- Page 26 ROBOT MEASUREMENT FOUNDATION...
- Page 27 ROBOT MEASUREMENT FOUNDATION...
- Page 28 ROBOT Info Error MEASUREMENT FOUNDATION...
- Page 29 ROBOT 0,05-60 MEASUREMENT FOUNDATION...
- Page 30 ROBOT MEASUREMENT FOUNDATION...
- Page 31 ROBOT • • MEASUREMENT FOUNDATION...
- Page 32 ROBOT MEASUREMENT FOUNDATION...
- Page 34 ________________________________________________ ______________________ _______________ ___________________ _________________________________...
- Page 35 ______________________________________________________________________________________________ ______________________________________________________________________________________________ __________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________ ________________________...
