Please keep this important manual in a safe place. It is the owner's responsibility to ensure that
regular maintenance is carried out on this ducted heating / cooling product. Failure to do so will
void all guarantees beyond statutory and legal requirements.
Bonaire Control Systems
Using the
Ducted Gas Central Heating
Ducted Evaporative Air Conditioning
With your
Multi-appliance
Slimline Control
Owner's Manual
www.bonaire.com.au
Advertisement
Table of Contents
Related Manuals for BONAIRE Slimline
Summary of Contents for BONAIRE Slimline
-
Page 1: Ducted Evaporative Air Conditioning
Ducted Evaporative Air Conditioning With your Multi-appliance Slimline Control Owner’s Manual Please keep this important manual in a safe place. It is the owner’s responsibility to ensure that regular maintenance is carried out on this ducted heating / cooling product. Failure to do so will void all guarantees beyond statutory and legal requirements. -
Page 2: Table Of Contents
SLIMLINE CONTROLLER CONNECTIONS....................6 FEATURES OF THE SLIMLINE CONTROLLER ..................7 TIMER SETUP.............................8 MODE CONTROL............................8 ERROR REPORTING AND REMOVING ERROR..................9 QUICK START - SIMPLE SLIMLINE OPERATION ..................9 Ducted Gas Central Heating................10 SAFETY ..............................11 Safety & Owner Responsibility ....................11 Precautions ..........................11 Features .......................... - Page 3 Multi-Appliance Slimline Control Contents Introduction Fan Mode ..........................18 WATER MANAGEMENT ...........................19 Dialflo ............................19 Aquamiser ..........................19 DUCTED EVAPORATIVE AIR CONDITIONER MAINTENANCE..............20 General ........................... 20 Filter Pads ..........................20 Water Tank ..........................20 Water Level / Float Valve......................20 Motor and Fan.........................
-
Page 4: Introduction
Introduction Introduction YOUR SLIMLINE CONTROLLER This technologically advanced controller comes with Slimline control for cooling and heating plus many other setup functions. Your Slimline Controller has been designed to operate the following products: Heating – BONAIRE MB - 3, 4, 5 Star Ducted Gas Central Heaters. -
Page 5: General Information
There is no assembly required of these Ducted Heating or Cooling products. Your Dealer or installer will carry out all assembly and commissioning upon installation. IMITATIONS The Slimline Controller is only to be used with MB 3, 4 & 5 star Heater Control and Evaporative Cooler Control. The Slimline Controller will only control:... -
Page 6: Navigating The Controls
IMPORTANT: These connections are only to be used if connecting to a Heater in two wire mode. This connection must not be used if the digital communications are connected. NOTE: If the Slimline Controller is being used to operate both a heater and a cooler, then only digital communication should be used. -
Page 7: Features Of The Slimline Controller
It will display the room temperature (“ROOM”), set temperature (“SET”), timer count and modes of operation (AUTO, MAN, FAN). 3. LEDs: The Slimline Controller provides 5 green LEDs for status display of operation. • On/Off LED •... -
Page 8: Timer Setup
Navigating the Controls TIMER SETUP If the Slimline Controller is in the OFF state, the delay time displayed will represent the turn ON time. The LED of last Mode selected in the previous ‘ON’ state and ON/OFF LED will flash. -
Page 9: Error Reporting And Removing Error
Installer. ERROR REPORTING AND REMOVING ERROR While operating the Slimline Controller, an error will be reported by “Er” on the screen. The Slimline Controller will remain in this state until the error is removed. To remove the error, Press and hold the UP/DOWN buttons for 5 seconds. This will send the reset command to the appliance. -

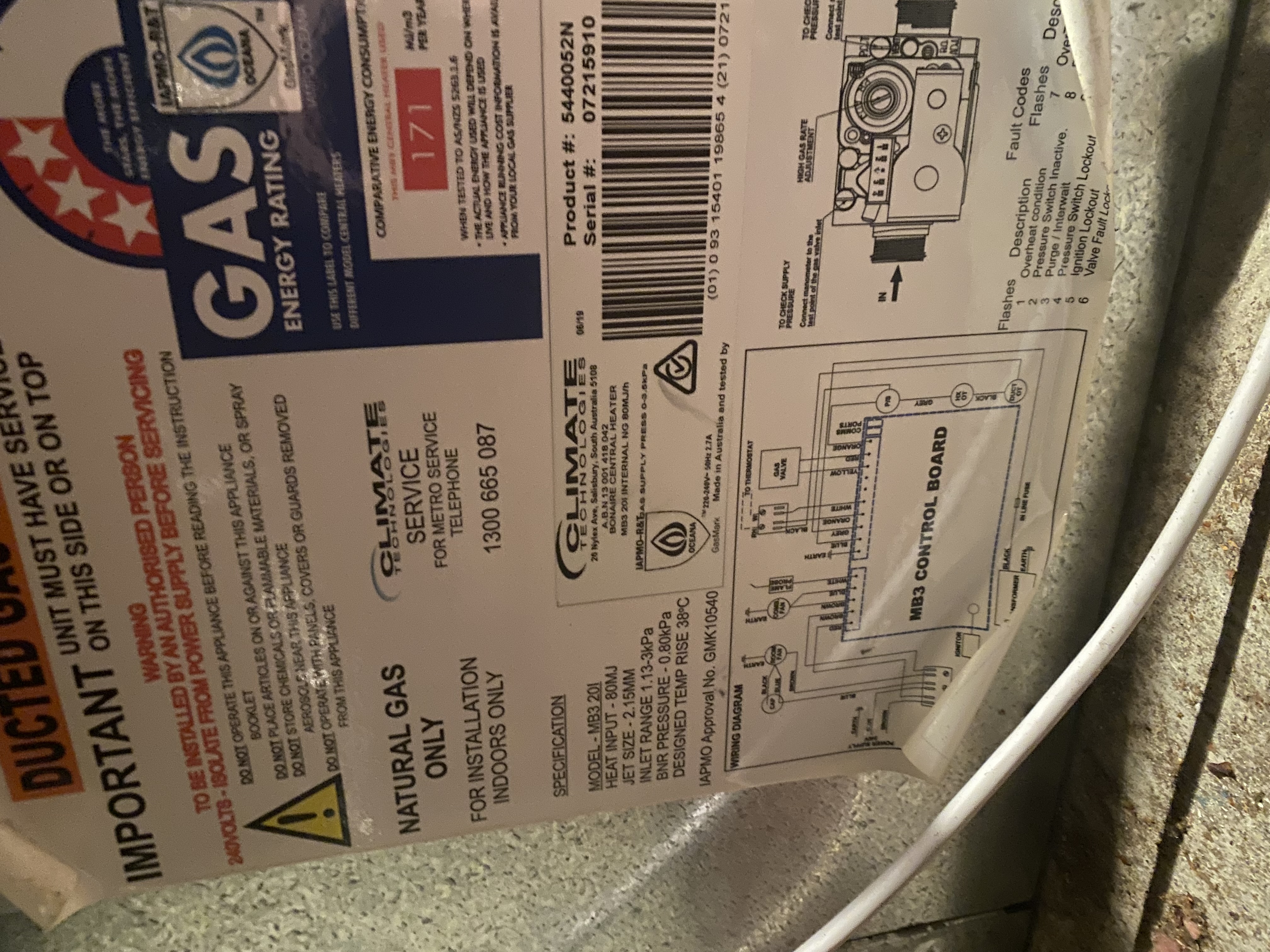

Page 10: Ducted Gas Central Heating
Multi-Appliance Slimline Control Ducted Gas Central Heating Ducted Gas Central Heating Owner’s Operation and Maintenance Manual Please keep this important manual in a safe place. It is the owner’s responsibility to ensure that regular maintenance is carried out on this Ducted Gas Central Heater. Failure to do so will void all guarantees beyond statutory and legal requirements. -
Page 11: Safety
Multi-Appliance Slimline Control Ducted Gas Central Heating Congratulations on purchasing this BONAIRE ducted gas central heating system, an exciting new product manufactured by Climate Technologies. Wholly designed and manufactured in Australia, this Ducted Gas Central Heater represents an exciting new development in warm air furnace design. -
Page 12: Operating The Slimline Controller
OPERATING THE SLIMLINE CONTROLLER To operate your Slimline Controller simply press the ON / OFF button. The unit will then display the default or last used settings and will be ready to operate. Any changes made to the Slimline Control settings will have a 3 second delay before the unit responds. -
Page 13: Fan Mode
Auto Cool Mode can be operated if the Evaporative Cooler is connected in conjunction with a central heater. To operate the Auto Cool Mode, STEP 1 Turn the Slimline Controller ON by pressing the ON / OFF button. STEP 2 Press the MODE button until ‘AUTO’ appears on the display and the Cool LED turns on. -
Page 14: Heater Maintenance
Multi-Appliance Slimline Control Ducted Gas Central Heating HEATER MAINTENANCE ENERAL USTOMER AINTENANCE Return Air Grille Filter. If your heating system has a filter in the return air grille, it is extremely important it is cleaned every 3 – 4 weeks during the operating period to ensure correct operation of the heating unit. Failure to do so may cause your heater to stop because of over temperature and cause an unnecessary service call not covered by warranty. -
Page 15: Problem Solving
Multi-Appliance Slimline Control Ducted Gas Central Heating PROBLEM SOLVING Central Heater will not operate! Question Solution Has the unit been run Refer to question 4 since installation? Check the unit is turned on at the power point and the gas cock is turned on. -
Page 16: Ducted Evaporative Air Conditioning
Multi-Appliance Slimline Control Ducted Evaporative Air Conditioning Ducted Evaporative Air Conditioning Owners Operating and Maintenance Please keep this important manual in a safe place. It is the owner’s responsibility to ensure that regular maintenance is carried out on this Evaporative Air Conditioner. Failure to do so will void all guarantees beyond statutory and legal requirements. -
Page 17: Introduction
Multi-Appliance Slimline Control Ducted Evaporative Air Conditioning INTRODUCTION Your ducted evaporative air conditioner is engineered to meet the rigors of our harsh Australian environment. Operated and maintained in accordance with this manual, it will provide you with years of cool and environmentally friendly operation. Please take the time to read this manual. -
Page 18: Operating The Slimline Controller
To operate your Slimline Controller, simply press the ON/OFF button. The unit will then display the default or last used settings and will be ready to operate. Any changes made to the Slimline Controller settings will have a 3 second delay before the unit responds. -
Page 19: Water Management
Multi-Appliance Slimline Control Ducted Evaporative Air Conditioning WATER MANAGEMENT IALFLO BLEED OFF All evaporative air conditioners need some water bleed-off to prevent build-up of mineral deposits in the system. The correct setting of the bleed rate will ultimately govern the life of the unit. -
Page 20: Ducted Evaporative Air Conditioner Maintenance
Multi-Appliance Slimline Control Ducted Evaporative Air Conditioning DUCTED EVAPORATIVE AIR CONDITIONER MAINTENANCE ENERAL All Ducted Evaporative Air Conditioners require some general maintenance to ensure continued cooling efficiency and a long life. Maintenance is carried out at the beginning and end of summer to start up and close down your unit. -
Page 21: Motor And Fan
Multi-Appliance Slimline Control Ducted Evaporative Air Conditioning OTOR AND Check that the fan spins freely and that there is no build up on the blades. LECTRICAL No general maintenance is required to the electrical system. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or it’s service agent. -
Page 22: Trouble Shooting Guide
Multi-Appliance Slimline Control Ducted Evaporative Air Conditioning TROUBLE SHOOTING GUIDE PROBLEM PROBABLE CAUSE REMEDY Black – out Wait Tripped Circuit Breaker Reset Unit fails to start Blown Fuse Replace Electrical Fault Call Climate Technologies Service Provider Pump Seized Isolate power and then take off top of pump and try to free it. -
Page 23: Warranty
Multi-Appliance Slimline Control – Australia Warranty Warranty IMPORTANT: Please read this warranty information and complete the Dealer/Product information on the following page. KEEP this with your original purchase documents for any claim under warranty. Firstly refer to your owners manual to ensure you have followed the correct operating procedures of your product, and refer to the trouble shooting guide to assist solving any problems you may have. - Page 24 Multi-Appliance Slimline Control – Australia Warranty Exclusions to warranty • Consumable items subject to wear and tear such as filter pads drive belts and bearings are not covered by this warranty. • Components used as part of the installation such as grilles filters, ducting, fittings, zone motors and consumer services pipe work are warranted from your place of purchase and not covered by this warranty.
- Page 25 Multi-Appliance Slimline Control – Australia Warranty PERIODS OF WARRANTY – YEARS BY PRODUCT AND APPLICATION: Ducted Gas Heating Unit Components RESIDENTIAL COMMERCIAL Parts Labour Parts Labour Heat Exchanger Burner **All other components ** Return air filter/s and zone motors are field supplied and therefore are not covered by the above warranty periods.
- Page 26 Multi-Appliance Slimline Control – Australia Warranty PROOF OF PURCHASE: It is important that the name of the Dealer or Retailer from whom you purchased your product and the name of the installer are recorded on this page. The installer is responsible for the correct installation, start up and demonstrating the operation of this product.
-
Page 27: Service
Multi-Appliance Slimline Control Service - Australia SER VICE SERVICE CENTRES: Only qualified service personnel should conduct any service work carried out on your heating / cooling ducted system. It is important that periodical service is carried out on your product to ensure your will receive the efficiency benefits the product provides. - Page 28 Manufactured by Climate Technologies ABN 13 001 418 042 26 Nylex Avenue Salisbury, SA 5108 Australia www.bonaire.com.au 5442281C...
