Ducted reverse cycle air conditioning multi-appliance comfort controller
Hide thumbs Also See for Bonaire:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
Owner's Manual
Ducted Reverse Cycle Air Conditioning

Comfort Control

Radio Frequency & Low Voltage
Please keep this important manual in a safe place. It is the owner's responsibility to ensure that regular maintenance is carried out
on this Air Conditioning product. Failure to do so will void all guarantees beyond statutory and legal requirements.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bonaire and is the answer not in the manual?

Questions and answers

Scott
February 1, 2025

Can’t select cool only. Will only allow cool fresh air or fresh air. Doesn’t matter if in manual mode

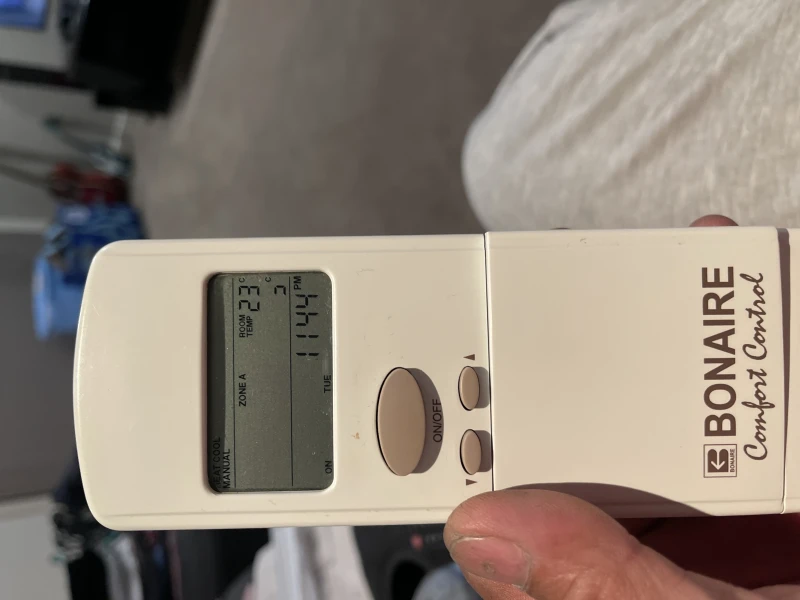

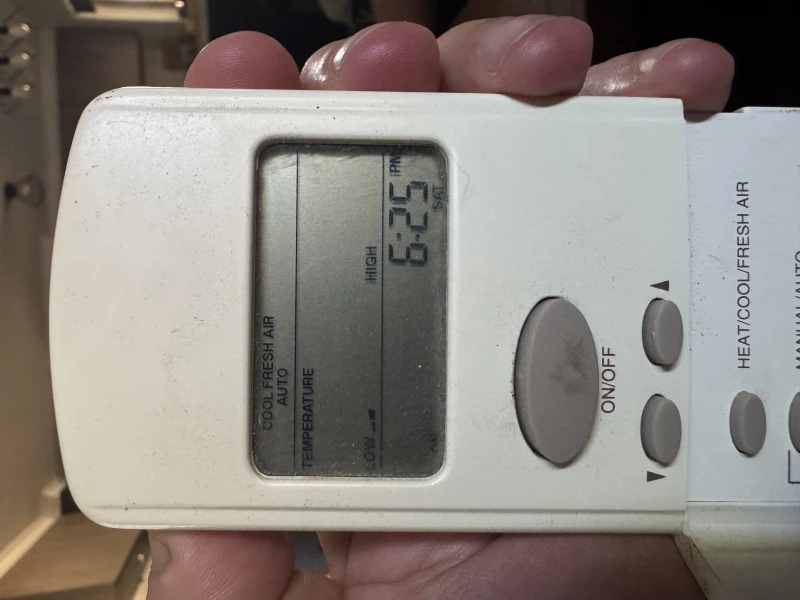

User image 679dcce277d3b
