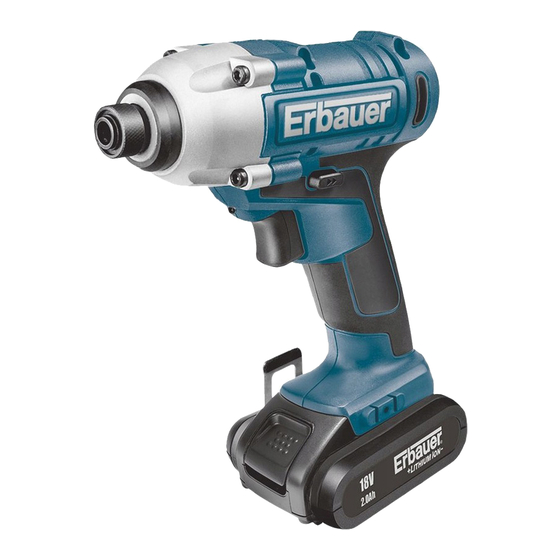

- Page 1 ERI604IPD 18V IMPACT DRIVER ERI604IPD...
- Page 2 Original Instructions (Version 1.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your electric (corded) power tool or battery- operated (cordless) power tool. - Page 5 Liquid ejected from the battery may cause irritation or burns. Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 18V IMPACT DRIVER ERI604IPD...
- Page 6 ADDITIONAL SAFETY RULES FOR YOUR CORDLESS IMPACT DRIVER 1. Remove the battery pack from the impact driver before carrying out adjustments. 2. Do not expose to rain or water. 3. Do not store the battery pack in temperatures over 40 4.
- Page 7 Construction workers are one of the at-risk groups within this because of the dust that they breathe: silica dust is not just a nuisance; it is a real risk to your lungs! 18V IMPACT DRIVER ERI604IPD...
- Page 8 Silica is a natural mineral present in large amounts in things like sand, sandstone and granite. It is also commonly found in many construction materials such as concrete and mortar. The silica is broken into very fine dust (also known as Respirable Crystalline Silica or RCS) during many common tasks such as cutting, drilling and grinding Breathing in very fine particles of crystalline silica can lead to the development of: Lung cancer...
- Page 9 The use of other tools will reduce the users’ total working period on this tool. Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). 18V IMPACT DRIVER ERI604IPD...
- Page 10 Avoid using tools in temperatures of 10ºC or less. Plan your work schedule to spread any high vibration tool use across a number of days. Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work.
- Page 11 Be sure the supply is the same as the voltage given on the rating plate for the charger. The charger is fitted with a two-core cable and plug. Remove the mains plug from socket before carrying out any adjustment or servicing. 18V IMPACT DRIVER ERI604IPD...
- Page 12 SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Double insulation Indoor use only 1h charging time for ERI606BAT Do not expose to rain or water Do not burn Wear gloves Always charge the battery pack between temperatures 0°C to 30°C. Ideal charging temperature is 18°C to 24°C.
- Page 13 FORWARD,REVERSE ROTATION AND LOCK CONTROL BELT CLIP BATTERY PACK * BATTERY PACK RELEASE BUTTON ON/OFF SWITCH WITH VARIABLE SPEED CONTROL LED LIGHT COLLET LOCKING SLEEVE * Not all the accessories illustrated or described are included in standard delivery. 18V IMPACT DRIVER ERI604IPD...
-
Page 14: Technical Data
TECHNICAL DATA Voltage Max* No load speed 0-2600/min Impact rate 0-3000bpm Max torque 120N.m Chuck size 1/4” ( 6.35mm ) hex Charger Protection class Charging time Charger Input 100-240V~50/60Hz,78W Charger Output 14.4-20V 3000mA Machine weight 1.1kg Battery capacity 2.0Ah Li-ion battery NOISE AND VIBRATION DATA A weighted sound pressure : 76dB(A) -
Page 15: Intended Use
3) When charging is completed, the light will turn to green. The pack is now fully charged, unplug the charger and remove the battery pack. Fig. 2 18V IMPACT DRIVER ERI604IPD... -
Page 16: Charging Indicator
Warning: When battery charge runs out after continuously use or exposure to direct sunlight or heat, allow time for the tool to cool down before re- charging to achieve the full charge. CHARGING INDICATOR This charger is designed to detect some problems that can arise with battery packs. - Page 17 6. OVERLOAD PROTECTION When overloaded, the motor comes to a stop. Relieve the load on the machine immediately and allow cooling for approx. 30 seconds at the highest no-load speed. 18V IMPACT DRIVER ERI604IPD...
-
Page 18: Problem Solution
7. TEMPERATURE DEPENDENT OVERLOAD PROTECTION When using as intended for the power tool cannot be subject to overload. When the load is too high or the allowable battery temperature of 75°C is exceeded, the electronic control switches off the power tool until the temperature is in the optimum temperature range again. -
Page 19: Maintenance
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recycle-more.co.uk. 18V IMPACT DRIVER ERI604IPD... -
Page 20: Plug Replacement
PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. -
Page 21: Declaration Of Conformity
EN 60335-1 EN 60335-2-29 EN 61000-3-2 EN 61000-3-3 EN 62233 Authorised Signatory and technical file holder Date: 08/18/2014 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 18V IMPACT DRIVER ERI604IPD...
