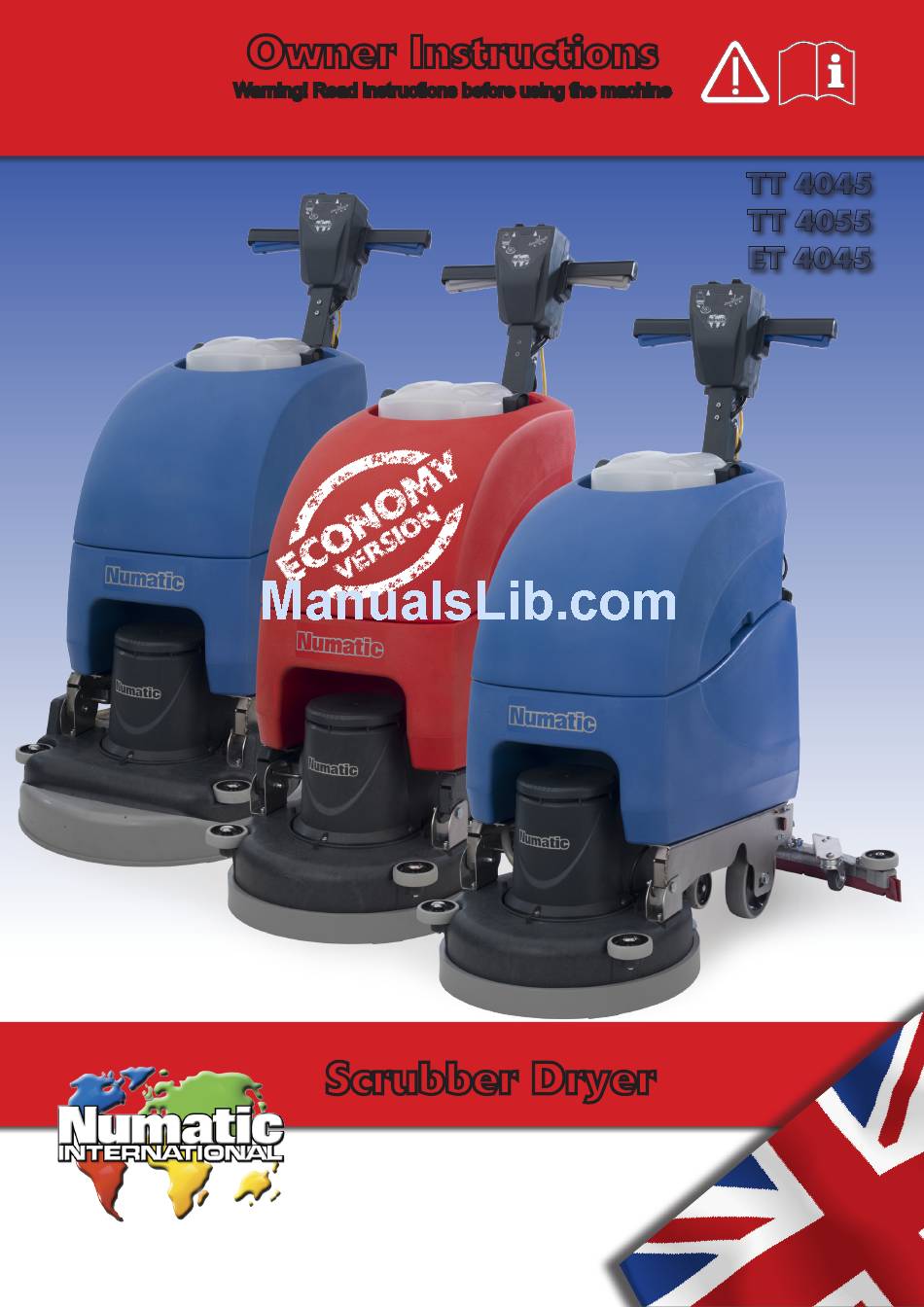

- Page 1 Owner Instructions Warning! Read instructions before using the machine TT 4045 TT 4055 ET 4045 TT 4055 ET 4045 TT 4045 Scrubber Dryer www.numatic.com...
-
Page 2: Table Of Contents
Before continuing, please refer to Set Up Guide on Page 7 Index Page 2 Machine overview Page 3 Rating label / Personal Protective Equipment / Recycling Page 4 Safety Precautions / Specifications Page 5 / 6 Machine Set Up Tilting the Handle Page 7 Fitting the Top Tank Page 7... -
Page 3: Machine Overview
Machine Overview 1. Operator control panel 13. On / Off lever 2. Separator 14. Clean water tank fill point 3. Top tank (waste water) 15. Floor tool vacuum hose 4. Waste water emptying hose 16. Vacuum hose 5. Bottom tank (clean water) 17. - Page 4 A risk assessment should be conducted to determine which PPE should be worn. Safety Critical Component Mains lead: H05VV-F x 1.5 mm x 3 core Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical help line +44 (0)1460 269268...
- Page 5 Regularly examine the power cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use. • Only replace the power cord with the correct Numatic approved replacement parts. • Ensure that the work area is clear of obstructions and / or people.
- Page 6 Mains operated machines shall be disconnected by removing the power plug, and battery operated machines shall be disconnected by switching off the isolating key. Machines left unattended shall be secured against unintentional movement. Operators shall be adequately instructed as to the correct use of the machine. Data TT 4045 Brush Motor Vac Motor Power Sound...
-
Page 7: Fitting The Brush
Featuring the Nulock brush system. The brush is simply pushed and twisted to lock, making fitting and removal a simple process. The Pad is retained using Numatic’s own PadLoc system. (Ask your supplier for details) Only use manufacturer supplied brushes / pads. -
Page 8: Tipping The Brush Deck
Machine Set-Up Tipping the Brush Deck To tip the deck into the down position (Operating mode). Press in the brush deck locking bar (Fig 7) and rotate the brush deck (Fig 8). To change to brush deck up position, (Transit mode) simply lift the deck and the sprung loaded locking bar will active Fig 7 Fig 8... -
Page 9: Fill The Clean Water Tank
Machine Set-Up Filling the clean-water tank The TT / ET Range are all equipped with a 40 litre clean-water tank allowing large areas to be cleaning in a single fill. To fill the clean-water tank, use the 1 meter FLEXI - FILL pipe from either a tap or hose pipe (Fig 12). -
Page 10: Lowering The Floor Tool
Pre-cleaning advice. Before performing the cleaning operation, place out appropriate warning signs and sweep or dust-mop the floor (Fig 13). Numatic part (629044) Wet Floor sign (available if required) Fig 13 ALWAYS ENSURE THAT THE FLOOR IS PRE-SWEPT AND RELEVANT SAFETY SIGNS ARE DISPLAYED. -
Page 11: Setting The Cleaning Controls
Breakaway floor-tool The floor-tool design incorporates a breakaway feature. Allowing it to safely disengage from its mounting should it become caught on an obstruction, during forward machine movement. To re-attach the blade to its holder. First loosen the retaining knobs on the floor-tool body and slide onto the holding bracket. - Page 12 Regular Maintenance ALWAYS ENSURE THAT THE BATTERY IS DISCONNECTED PRIOR TO ANY MAINTENANCE OPERATION The TT / ET Range has been designed with ease of use in mind, this included easy stripping-down and cleaning. After use, empty waste-water tank using emptying hose and flush-out with clean water (Fig 19).
-
Page 13: Changing The Floor Tool Blades
Changing the Floor Tool Blades ALWAYS ENSURE THAT THE BATTERY IS DISCONNECTED PRIOR TO ANY MAINTENANCE The floor-tool The TT range is provided with the aluminium floor tool shown. The ET range is provided with the Eco Range floor tool. Fig.28 To clean the floor-tool, remove securing-pin and disconnect the lifting strap and remove the floor tool securing pin pull-free the floor tool from the rear of the machine. -
Page 14: Company Addresses
Brush deck raised Lower brush deck (page 8) Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline +44 (0)1460 269268 ( see back page for company addresses or dealers stamp) - Page 15 TT 4045 / TT 4055 / ET 4045 220v ~ 230v DRW - 11855 (A02) 25/10/2012...
- Page 16 TT 4045 / TT 4055 / ET 4045 110v~50Hz DRW - 12474 (A02) 25/10/2012...
- Page 17 Spare Parts TT 4045 577859 Top Tank - Blue 208638 Wheel 577860 Bottom Tank - Blue 577864 Deck 577839 Separator 577893 Handle 206265 Barrel Filter 321934 Vac Motor 207000 Basket Filter 236012 Mains Cable UK 208588 Vac Hose 236132 Mains Cable Euro...
- Page 19 Machinery Directive 2006/42/EC EMC Directive 2004/108/EC Machine Description: Scrubber Dryer Type: TT, ET series Manufactured by: Numatic International Limited This equipment has been designed and manufactured in accordance with the following standards: IEC 60335-1:2010 IEC 60335-2-72:2002 +A1 IEC 62233:2005 EN 55014-1:2006...
- Page 20 TT 4045 / TT 4055 / ET 4045 This machine has been packed with the following items Brush Floor Tool Hose Hook 38 mm / 32 mm Adaptor Signed Distributed by Numatic International Limited, Chard, Somerset, TA20 2GB, ENGLAND. Telephone 01460 68600 Fax: 01460 68458 www.
