Summary of Contents for Numatic TT 4045

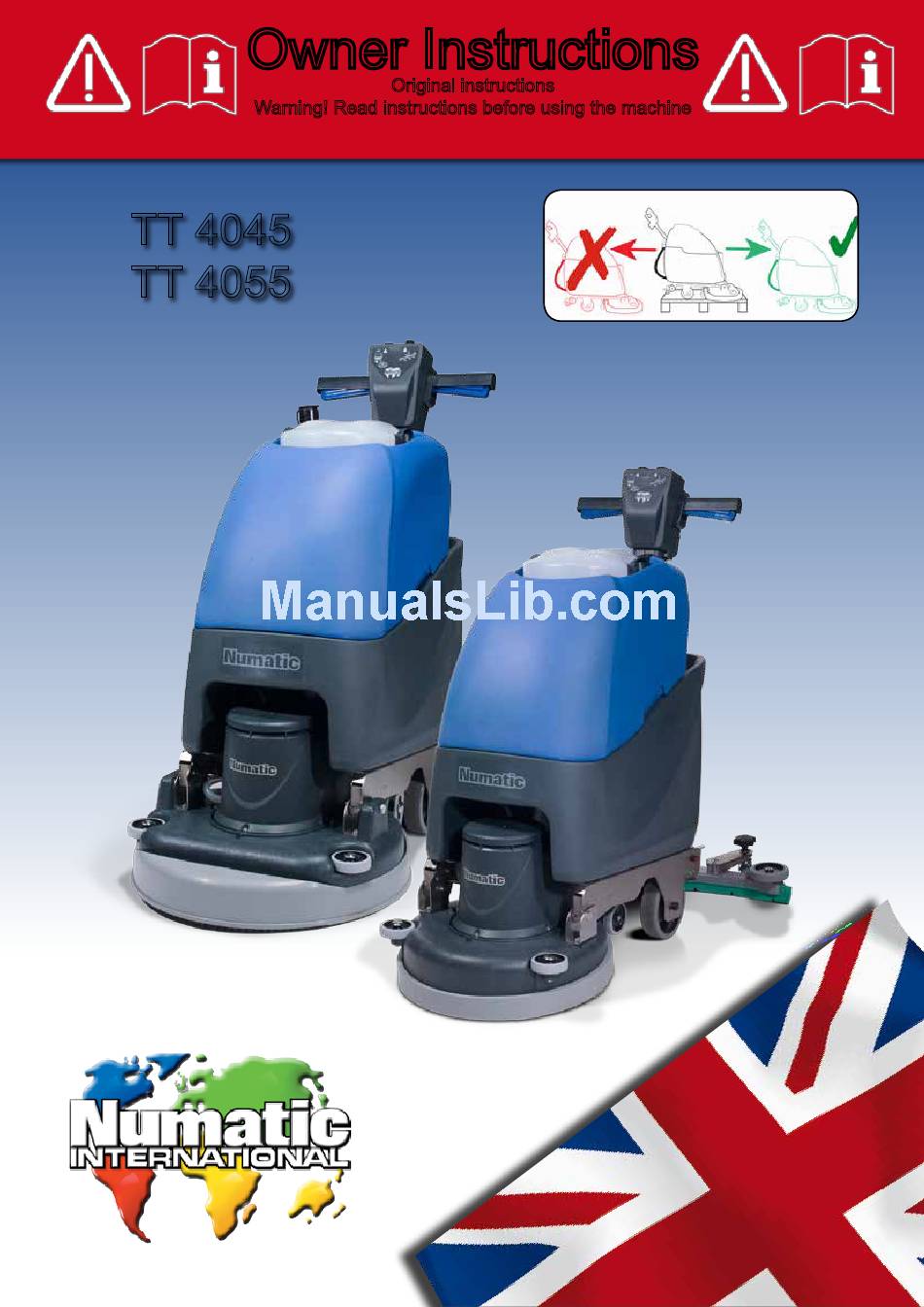

- Page 1 Owner Instructions Original instructions Warning! Read instructions before using the machine TT 4045 TT 4055 TT 4055 TT 4045 www.numatic.com...
-
Page 2: Table Of Contents
Before continuing, please refer to Set Up Guide on Page 6/7 Page 2 Index Page 3 Machine overview Page 4 Rating label / Personal Protective Equipment / Recycling Page 5 / 6 Safety Precautions / Specifications Machine Set Up Tilting the Handle Page 6 Fitting the Top Tank Page 6... -
Page 3: Machine Overview
Machine Overview Operator Control Panel On / Off Switch Separator Triggers Top Tank (waste-water) Clean-water Tank Fill Point / Filler Hose Waste-water Emptying Hose Floor-tool Vacuum Hose Bottom Tank (clean-water) Vacuum Hose Deck Locking Pin Clean-water Tank Emptying Hose & Fill Level Brush Deck Floor-tool Lifting Lever Handle Position Lever... -
Page 4: Rating Label / Personal Protective Equipment / Recycling
A risk assessment should be conducted to determine which PPE should be worn. Safety Critical Component: Mains lead: H05VV-F x 1.5 mm x 3 core In the event of a breakdown contact your Numatic dealer or the Numatic Technical help line +44 (0)1460 269268... -
Page 5: Safety Precautions / Specifications
• Regularly examine the power cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use. • Only replace the power cord with the correct Numatic approved replacement parts. • Ensure that the work area is clear of obstructions and / or people. -
Page 6: Machine Set Up
• Only use brushes provided with the appliance or those specified in the instruction manual. • The use of other brushes may impair safety. • A full range of brushes and accessories are available for this product. • Only use brushes or pads which are suitable for the correct operation of the machine for the specific task WARNING being performed. -
Page 7: Fitting The Brush
Featuring the Nulock brush system. The brush is simply pushed and twisted to lock, making fitting and removal a simple process. The Pad is retained using Numatic’s own PadLoc system (ask your supplier for details). Only use manufacturer supplied brushes / pads. -
Page 8: Fitting The Hose Guide
Machine Set-Up Fitting the Hose Guide The vacuum hose has a U-bend clip which creates a U-bend in the hose preventing water spillage when the vacuum is switched off. If you need to remove the U-bend clip for any reason always ensure it is refitted correctly before you resume operation (Fig 36-39). -
Page 9: Clean Water Level
Pre-cleaning advice Before performing the cleaning operation, place out appropriate warning signs and sweep or dust-mop the floor (Fig.14). Numatic part (629044) Wet Floor sign (available if required) ALWAYS ENSURE THAT THE FLOOR IS PRE-SWEPT AND RELEVANT SAFETY SIGNS ARE DISPLAYED... -
Page 10: Pre Scrubbing
Machine Operation Pre-scrub mode The TT Range have been designed to cope with a variety of floor types and different levels of soiling. On heavily soiled floors use a ‘double scrub’ technique. First pre-scrub the floor with the floor-tool in the raised position, allow the chemical time to work, then scrub the area a second time with the floor-tool lowered. -
Page 11: Setting The Cleaning Controls
Setting the cleaning controls Ensure your TT machine has been plugged into a suitable power supply. Select the desired function using the On / Off switches fitted to the handle. To start: hold down either trigger and press the yellow On / Off Switch once... -
Page 12: Regular Maintenance
Regular Maintenance ALWAYS ENSURE THAT THE BATTERY IS DISCONNECTED PRIOR TO ANY MAINTENANCE OPERATION The TT Range has been designed with ease of use in mind, this included easy stripping-down and cleaning. After use, empty waste-water tank using emptying hose and flush out with clean water (Fig.20). Remove the two hoses to disconnect the separator from the machine (Fig.21). -
Page 13: Changing The Floor-Tool Blades
Changing the Floor Tool Blades ALWAYS ENSURE THAT THE BATTERY IS DISCONNECTED PRIOR TO ANY MAINTENANCE The floor-tool The TT range is provided with the aluminium floor-tool shown. To clean the floor-tool, remove securing-pin and disconnect the lifting strap and remove the floor-tool securing pin pull-free the floor-tool from the rear of the machine. -
Page 14: Specifications
Off-Aisle Cleaning Kit (Optional Extra Accessory) In the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline +44 (0)1460 269268 (See back page for company addresses or dealers stamp) TT4045 TT 4045 Gross Brush Motor Vac Motor... -
Page 15: Trouble Shooting
Trouble- Shooting PROBLEM CAUSE SOLUTION Waste-water tank full Empty waste-water tank (page 12) Clogged / blocked vacuum hose Remove and clean Loose hose connections Push tight connections Debris basket filter clogged / blocked Remove and clean (page 12) Poor water pick-up Separator filter clogged / blocked Remove and clean (Page 12) Poor separator seal... -
Page 16: Schematic Diagram
TT 4045, TT 4055 - Schematic Diagrams Notes .................................................................................................................................................................................................................................................. - Page 17 Notes ............................................................................................................................................................................................................................................................................................................................................................................................................
-
Page 18: Warranty
Machinery Directive 2006/42/EC EMC Directive 2004/108/EC RoHS Directive 2011/65/EU Machine Description: Scrubber Dryer Type: TT, ET series Manufactured by: Numatic International Limited Relevant standards upon which conformity is declared include: IEC 60335-1:2010 IEC 60335-2-72:2002 +A1 IEC 62233:2005 EN 55014-1:2006 EN 55014-2:1997+A1... -
Page 20: Company Addresses
This machine has been packed TT 4045 / TT 4055 with the following items: Brush Floor-tool Hose Hook 38 mm / 32 mm Adaptor Signed Distributed by Numatic International Limited Chard, Somerset TA20 2GB ENGLAND. Telephone 01460 68600 Fax: 01460 68458 www.numatic.co.uk...
