Summary of Contents for Vimar 02950

  • Page 1 Instructions manual Thermostat 02950 User Manual...

  • Page 3: Table Of Contents

    Table of Contents 1. Thermostat 02950 ………………………………………………………………………………………………… 2 . Display ……………………………………………………………………………………………………………… 2 2.1 Functions of the buttons ……………………………………………………………………………………… 2 2.2 Symbols ………………………………………………………………………………………………………… 3 2.3 Ecometer ……………………………………………………………………………………………………… 3 2.4 Locking the interface via PIN ………………………………………………………………………………… 4 3. Operating mode …………………………………………………………………………………………………… 4 3.1 Switched off (OFF) ……………………………………………………………………………………………...

  • Page 4: Thermostat 02950

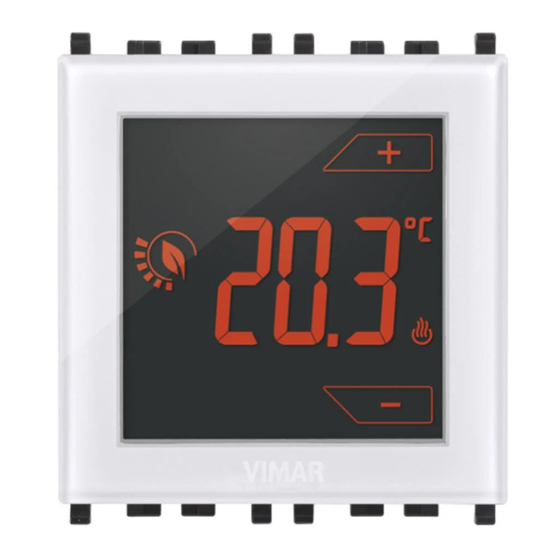

    1. Thermostat 02950 The thermostat 02950 is designed to control room temperature by acting on the control circuit of the burner or circulation pump (heating) or on the control circuit of the air conditioner (air conditioning), ensuring an ideal temperature. Thanks to a touch screen display with an extremely user-friendly graphical interface, the user can manage the system easily and comprehensively while keeping the environment in a state of energy saving.

  • Page 5: Symbols

    • If no operations are performed on the device for 30 seconds, the brightness of the backlighting decreas- es, and the touch screen does not respond to touch (thus you avoid the effects due to inadvertent touching and the backlighting is less “invasive”); on standby the button symbols are no longer visible because they are disabled.

  • Page 6: Locking The Interface Via Pin

    Fig. 3 : Locking with PIN 3. Operating mode The thermostat 02950 is able to adjust the temperature according to the following operating modes: • Switched off (OFF): switches the system off • Manual (ON): lets you set the environment temperature set-point manually •...

  • Page 7: Switched Off (Off)

    3.1 Switched off (OFF) In this mode, the thermostat is turned off and you cannot make any adjustments; in this case, the icon is displayed above the temperature indicator. Fig. 4 : Typical screen for OFF mode For heating-only systems this mode is typically used in the summer. 3.2 Manual (ON) This is the "traditional"...

  • Page 8: Away

    Fig. 6: Manual set point setting The selection is confirmed by touching icons in the lower right corner indicate whether the system is operating in heating or air-conditioning mode respectively (icon illuminated = system on). 3.3 Away This mode is useful to achieve energy savings quickly and effectively whenever the user leaves the reg- ulated room.

  • Page 9: Nighttime Reduction

    Activation of this mode is identified by the icon above the temperature indicator: Fig. 8: Away Mode To exit and return to Manual mode touch the button again. 3.4 Nighttime reduction This is the typical mode to use at night to reduce system consumption significantly. In "Nighttime reduction"...

  • Page 10: Antifreeze

    Fig. 10: Nighttime reduction mode To exit and return to Manual mode touch again. 3.5 Antifreeze This mode, which can only be activated when the system is operating in heating mode (see par. 4.3), lets you set a minimum temperature value ( setpoint) to avoid damage to the pipework or to keep it from falling below a certain safety level when you are away for lengthy periods in the winter.

  • Page 11: Remote Activation

    3.6 Remote reduction Remote reduction is a useful way to "centralize" energy saving if there are multiple 02950 thermostats in different rooms of the same house. It is similar to Nighttime reduction mode with the only difference being that activation is by remote control.
  • Page 12 In "remote activation" mode, the device sets the temperature to a value equal to Tcomfort. In this condition the display and its buttons have limited functions; access to the settings menu is disabled and you can only change the temperature setpoint within a limited range. The "Remote activation"...

  • Page 13: Operating Mode Setting

    4. Settings menu From the settings menu you can configure all the features of the thermostat. On the main screen (see Fig. 1) tap the icon. From the main menu, using will display the following (flashing) symbols in succession, which provide access to the corresponding submenus: operating mode setting unit of measurement setting heating/air-conditioning setting...

  • Page 14: External Probe Setting

    4.1 Operating mode setting This menu is used to select the operating mode of the device: • Manual • • Antifreeze (only if the thermostat is set on "heating") Using select the desired mode and confirm with 4.2 Unit of measurement setting •...

  • Page 15: Colour Setting

    4.9 Colour setting This menu is used to select the background colour of the display. In addition to the four default colours, you can set a colour to your choice selected from the full range of colours, or set "ECO" mode in which the display colour is a clue to the expected level of consumption in the building.

  • Page 16: Standby Brightness Level Setting

    4.10 Standby brightness level setting The menu lets you set the brightness level when the thermostat is in standby mode. select one of the following levels with gradually increasing brightness: • • • • • • • While scrolling through the values, when the selection stops on a certain level, the brightness of the display will, for approximately 2 s, take on the brightness corresponding to the selected level in order to allow the user to check the visual effect.

  • Page 17: Cleaning The Device

    6. Cleaning the device The device features a touchscreen display with capacitive buttons and therefore requires you to be gentle during the cleaning phase. Avoid using aggressive products. Clean the display with a special cloth for cleaning lenses. 7. Main characteristics •...
  • Page 18 Viale Vicenza, 14 - 36063 Marostica VI - Italy Tel. +39 0424 488 600 - Fax (Italy) +39 0424 488 188 02950 user 01 1406 Fax (Export) +39 0424 488 709 VIMAR - Marostica - Italy www.vimar.com...
