INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the SKY HDTV and is the answer not in the manual?

Questions and answers

Related Manuals for Mohu SKY HDTV

Summary of Contents for Mohu SKY HDTV

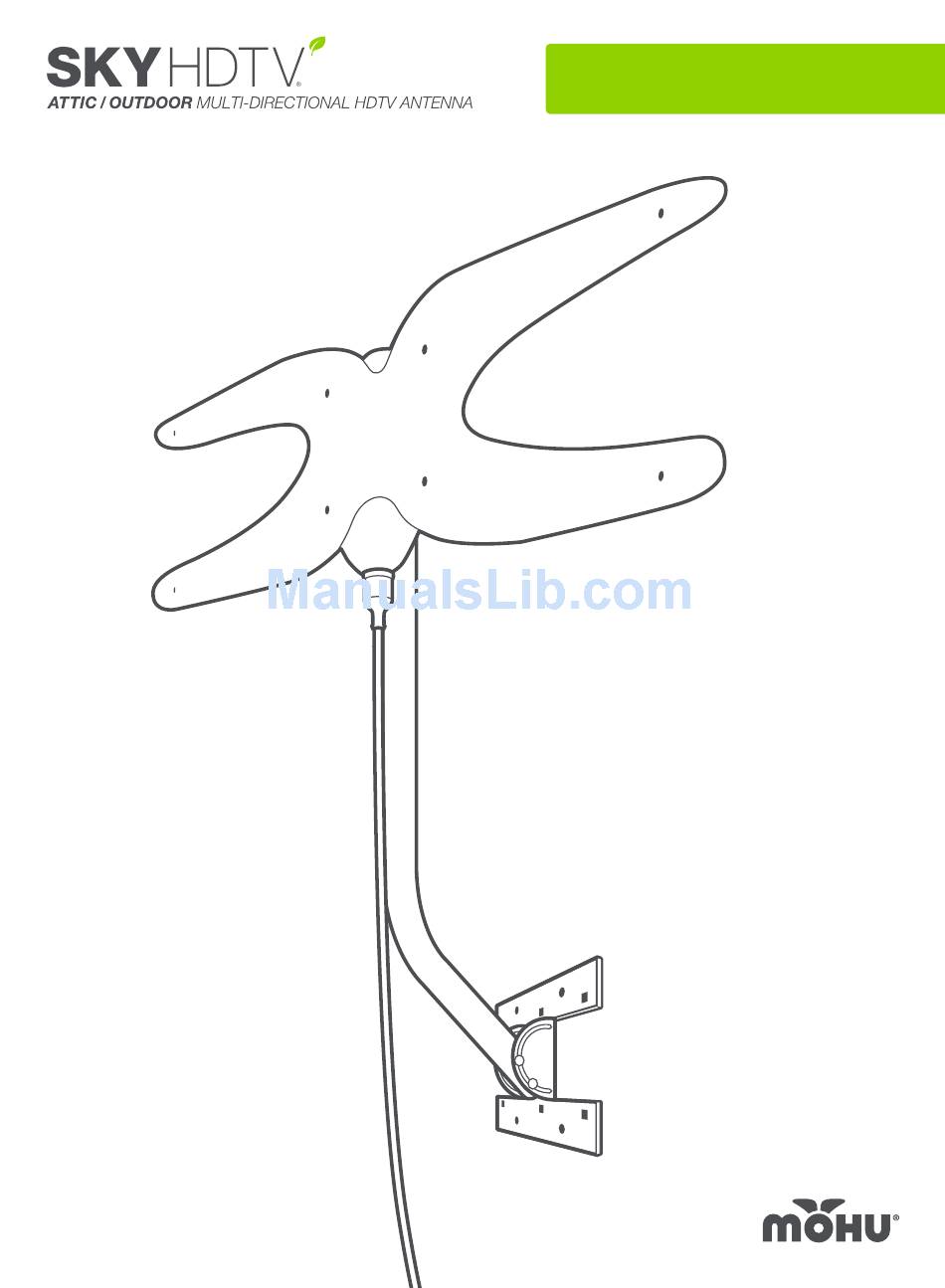

  • Page 1 INSTRUCTION MANUAL...

  • Page 2: Box Includes

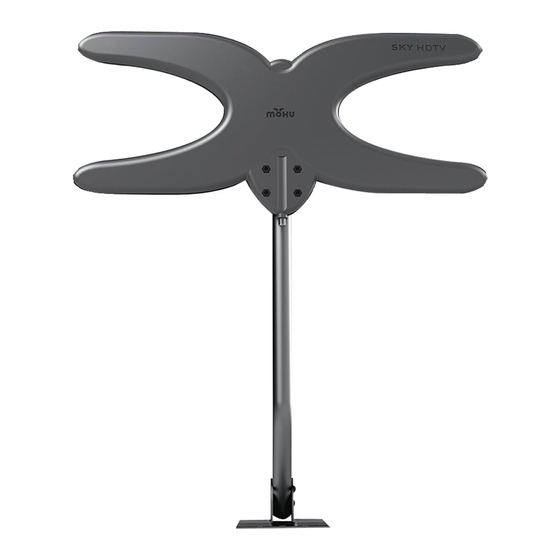

    BOX INCLUDES 30 ft. Coaxial Cable SkyHDTV® Antenna Amplifier USB Power Adapter* Antenna Mounting Hardware x6 - M6x50mm Screws, Washers & Bolts x4 - M5x25mm Screws & Bolts x4 - M6x39mm Wood Screws Antenna Mount Mounting Tube Mounting Bracket *Actual USB power adapter may di er in appearance.

  • Page 3: Safety Procedures

    IMPORTANT! FOLLOW ALL SAFETY PROCEDURES, WARNINGS AND INSTRUCTIONS WHEN INSTALLING YOUR ANTENNA. SAFETY PROCEDURES • Make sure there is another person present (on the ground) while installing the SkyHDTV® antenna. • DO NOT attempt to mount the antenna on a windy, rainy or snowy day.
  • Page 4 INSTRUCTIONS COMPLETE STEPS 2-4 ON THE GROUND Select mounting location. Ideally wood framework (in attic) or outside (roof / eaves). Position the mounting bracket (flat surface to wood) to create an “ ” shape when viewed from straight on. Secure the mounting bracket by using the four M6x39mm wood screws (Item B) OR use four of the M6x50mm screws, washers and bolts (Item D), after drilling holes in...
  • Page 5 Using the four M5x25mm screws and bolts (Item H), loosely secure the antenna mount to the antenna. Usando los cuatro tornillos y pernos de M5x25mm (Articulo H), de manera holgada asegure el montaje de la antena a la antena. Slide the antenna mount (now attached to the antenna), over the end of the mounting tube, as shown.
  • Page 6 Run the free end of the 30 ft. coaxial cable from the mounting location to the location of the TV. Connect the 30 ft. coaxial cable to the connector on the amplifier. If needed, additional coaxial cable can be added. Excessive cable may cause reception loss.
  • Page 7 In the TV’s setup menu, set the tuner mode to “Antenna” or “Air”. Refer to the TV manual for Tuner Mode detailed instructions. Antenna En el menú del ajuste de su televisor, ponga el modo de sintonización a “Antena” o “Aire”. Consulte el manual de su televisor para instrucciones más detalladas.
  • Page 8 ALTERNATE ATTIC MOUNTING Another mounting option is shown above. Use two screws or nails to hang the SkyHDTV® antenna in a horizontal position from wooden framework in attic. DO NOT mount near large metallic objects, such as pipe clamps or electrical conduits. Otra option de montaje se muestra alliba.
  • Page 9 RF SPLITTER INSTALLATION IF USING AN RF SPLITTER, CORRECT INSTALLATION IS VERY IMPORTANT. IMPROPER INSTALLATION MAY CAUSE DAMAGE TO THE TV. SI UTILIZA UN DIVISOR RF, LA INSTALACION CORRECTA ES 30 ft. MUY IMPORTANTE. INTALACION Coaxial INADECUADA PUEDE CAUSAR Cable DAÑO EN EL TELEVISOR.
  • Page 10 In the event Mohu chooses to replace the product, such replacement product may be a di erent model than the one originally purchased.
  • Page 11 If you have any di culties with the installation of your antenna, please contact Mohu®. SUPPORT@GOMOHU.COM || 1.855.446.6648 || WWW.GOMOHU.COM...
  • Page 12 Copyright © 2011-2014 Greenwave Scientific, Inc. All Rights Reserved. M-S60-20140429 MOHU® and SKYHDTV® are the registered trademarks of Greenwave Scientific, Inc. Patent pending.
