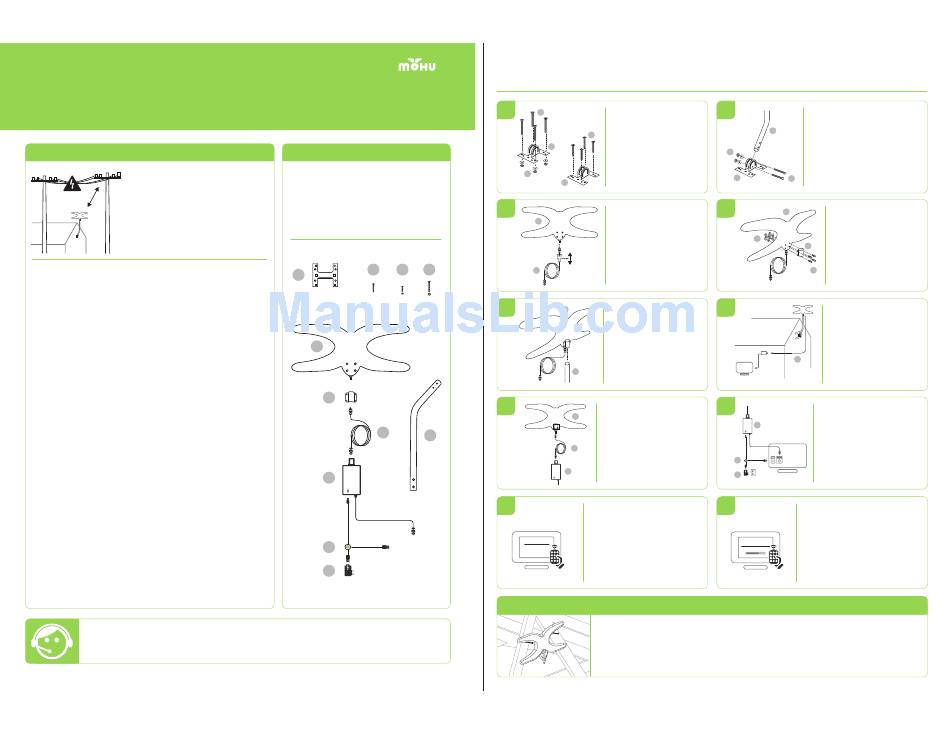

Mohu Sky 60 Instructions

SKYHDTV
OUTDOOR/ATTIC
MULTI-DIRECTIONAL
ANTENNA
IMPORTANT!
DANGER
SAFETY WARNING: If you intend to mount the
SkyHDTV antenna on a rooftop, make sure to mount it
away from any power lines or utility poles. Be sure to
MINIMUM follow all instructions and safety procedures when
15-20 FT.
installing your antenna. BEFORE installing, refer to
safety warning included in the box!
Note: The Sky antenna will require power in order to
function. You must use either a USB port or AC wall
adapter (included) to power the antenna.
OUTDOOR INSTALLATION WARNING
IMPORTANT SAFETY PRECAUTIONS: BE SURE TO THOROUGHLY READ THROUGH ALL
SAFETY PRECAUTIONS BEFORE INSTALLING THE SKY ANTENNA. FAILURE TO DO SO
COULD PUT LIVES AT RISK, SO IT IS VERY IMPORTANT THAT YOU READ EACH STEP
CAREFULLY! BE SURE TO FOLLOW ALL INSTRUCTIONS AND SAFETY PROCEDURES
WHEN INSTALLING YOUR ANTENNA.
IMPORTANT: BEFORE INSTALLING THE SKY ANTENNA, PLEASE BE SURE TO FAMILIARIZE
YOURSELF WITH THE SITE TO AVOID ANY POSSIBLE HAZARDS, AS LISTED BELOW:
[1] KEEP THE SKY ANTENNA AWAY FROM POWER LINES; FAILURE TO DO SO CAN
RESULT IN ELECTRIC SHOCK OR DEATH
A.
If you intend to mount the Sky antenna on a rooftop, make sure to mount it
AWAY from any power lines or utility poles. Please be sure to mount the Sky
antenna AT LEAST 15-20 ft AWAY from any power lines. Make sure that there
are NO possibilities for any personnel or equipment involved to come in contact
with power lines. If any part of the Sky antenna should come into contact with
power lines, DO NOT TOUCH IT! Call the power company IMMEDIATELY for help.
B.
If a person comes into contact with a power line and cannot move, DO NOT
TOUCH THAT PERSON AS YOU RUN THE RISK OF ELECTROCUTION. Use a
NON-CONDUCTIVE object, such as a dry board, or stick to push them so they
are no longer in contact with electrical power.
C.
Once the person is no longer in contact with electrical power, call 911
IMMEDIATELY and administer CPR if you are certified.
[2] IF YOU ARE UNSURE ABOUT A SAFE INSTALLATION, DO NOT ATTEMPT TO INSTALL
THE ANTENNA YOURSELF. PLEASE CONTACT A LOCAL OUTDOOR ANTENNA
INSTALLER FOR ASSISTANCE.
A.
ALWAYS make sure that there is another person present ON THE GROUND
when installing the antenna.
B.
BE SURE to assemble as much of the antenna ON THE GROUND as possible.
C.
DO NOT attempt to mount the antenna on a windy, rainy or snowy day.
D.
If the antenna begins to fall, DO NOT attempt to stop it. Stand back and let it fall.
E.
AVOID using a metal ladder at all costs.
F.
MAKE SURE that all towers and masts are securely grounded.
[3] FOLLOW ALL SAFETY PROCEDURES WHEN USING A LADDER TO AVOID FALLING.
If you have any difficulties with the installation of your antenna, please contact Mohu.
1-855-4-GOMOHU || SUPPORT@GOMOHU.COM || WWW.GOMOHU.COM
TM
WHAT'S IN THE BOX
[G] - The Mohu Sky Antenna
[E] - 30 ft high-performance coaxial cable
[J] - 3 ft USB Cable
[I] - USB power injector
[K] - Power Cube
[F] - Antenna Mount and Hardware
[C] - Mounting Tube and Hardware
B H D
A
X4 X4 X6
G
F
E
C
I
J
K
V20130108
INSTRUCTIONS
1
Attach the mounting bracket (Part
D
A) to wood framework in your
attic or on your roof/eaves by
OR
B using the 4 self-threading screws
(Part B) included in the box. You
A
can also use the 4 bolts, nuts and
washers (Part D, optional) after
drilling holes.
D
A
3
Attach the 30 ft. coaxial cable
(Part E) to the coax connector on
G
the Sky using the end of the cable
with the rubber boot. Finger-
tighten the coax connector (do not
use tools). Slide the rubber boot
over the bottom connector for
weatherproofing.
E
5
G Slide the clamp/antenna over the
vertical end of the mounting tube.
Tighten the 4 bolts (Parts H) on
the mounting clamp to secure the
antenna to the mounting tube.
C
7
Plug the free end of the coaxial cable
from the antenna to the connector on
MOHU G
SKY ANTENNA
the power injector (Part I). Plug the
short coaxial cable from the power
injector into the ANT/IN connector on
the back of your TV (See Figure 8).
30 FT.
E
COAXIAL
CABLE
POWER I
INJECTOR
HOUSING
9
Using In your TV's setup menu, set the
tuner mode to "Antenna" or "Air". Consult
your TV manual for detailed instructions.
TUNER MODE
ANTENNA
ALTERNATIVE MOUNTING OPTION
If you intend to mount the Sky in an attic, an alternative mounting option would be to hang the Sky from the wooden
framework using 2 nails or screws (see illustration below). The Sky must ALWAYS be installed in a horizontal manner.
You will ONLY want to use medium length nails or screws (less than 2.5 inches in length). You must also make sure NOT
to mount the Sky near any large metallic objects, such as pipe clamps or electrical conduits. If you decide to use this
alternative mounting option, please be sure to clamp the Sky together near the connector with the mounting clamp (Part
F) using the mounting clamp hardware (Parts H). Even though the mounting tube and clamp are not used, the screws
and nuts are needed.
2
Add the mounting tube (Part C) to the
mounting bracket by placing the short
end of the tube into the mounting
C
bracket. Loosely secure the mounting
tube with the two long bolts, washers and
nuts (Parts D) included in the box, then
D
adjust the mounting tube so that the top
of the tube is vertical. Once the mounting
tube is vertical, secure it by tightening
the two nuts (Part D). It is important that
A
D
the tube is approximately vertical.
4
Attach mounting clamp (Part F)
G
to the Sky (Part G) with the 4 bolts
and nuts (Parts H). Loosely attach
the nuts on the other side.
H
F
H
6
Run the free end of the 30 ft
coaxial cable (Part E) from the
antenna to your TV set. Be sure to
not kink or yank on the cable or it
can be permanently damaged.
Additional length of low-loss
coaxial cable can be added if
E
needed. Avoid adding excess cable
TELEVISION
length in order to minimize losses.
(not included)
8
The amplifier built into Sky must be
powered in order to function. Plug the
small end of the included USB cable
I
POWER
INJECTOR
HOUSING
(Part J) into the amplifier and the large
end of the USB cable into an open USB
port on the back of your TV. If your TV
TELEVISION
(not included)
does not have a USB port, use the
J ANT
included wall adapter (Part K) to power
the amplifier via any standard 120V
K
wall outlet (See Figure 8).
10
After selecting "Antenna" or "Air" in your TV's
setup menu, set TV to "scan" for channels.
This can sometimes be listed as auto-
program, auto-scan, channel search or
channel scan. Consult your TV manual for
CHANNEL SEARCH
detailed instructions. The TV will typically
SCANNING FOR CHANNELS
take several minutes to search for all
available stations. Once the scan is complete,
you will want to exit your TV menu to begin
watching free high-definition TV!
