Summary of Contents for Time Guard FST24

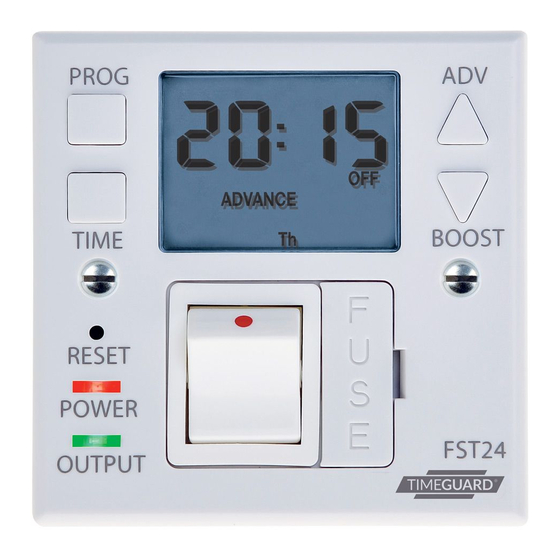

- Page 1 Fused Spur Time Switch Model No. FST24 – 24 Hour Timer Model No. FST77 – 7 Day Timer...
-
Page 2: General Information
Bag containing: 2x 3.5mm screws, 2x cable clamp set. 1x Instruction leaflet The FST24 (24 hour) and FST77 (7 day) are units which mount onto a BS4662 flush mount single box, or a BS5733 surface mount single box, (25mm deep in either case). - Page 3 3. Applications Energy consuming appliances such as immersion heaters and storage heaters up to 13A total loading can be supplied by the FST24/77 enabling users to make use of economy 7. If the user has other appliances which do not have push button start, such as washing machines, dishwashers and tumble dryers, these may also be controlled in the same way.
- Page 4 4 On/OFF switching programmes per day. Which for the FST77 can be made to operate over all 7 days (24 hour operation), 5 weekdays 2 weekend days, or any individual day (7 day operation). For FST24, 5+2 and individual day programming are not available, all 7 days are the same.
- Page 5 Fig. 3 Internal Schematic of FST24/77 Fuse: Use the appropriate BS1362 fuse for the load. This unit is supplied with a 13A fuse. 6. First Supply Connection and Reset The unit must be reset before programming for the first time, or after subsequent discharge for more than 5 days, and following a 4 hour period of charging.
-
Page 6: Setting The Clock
7. Setting the Clock Press and hold down the Time button for 3 seconds. The word hold will show on the screen. After 3 seconds, the screen will show a year. Use the Adv or Boost buttons to change the year to the correct year. Press Time to set the year, and then the month will show. - Page 7 Use the Adv or boost button to adjust the hour to the correct hour. Press Time to set the hour, and then the time will show the minutes. The hour is a 24 hour clock. Use the Adv or boost button to adjust the minutes to the correct minutes. Press Time to exit the Time/date entry mode.
- Page 8 There is a choice of programming options, including 7 days the same (24 hours), 5 + 2 days (where the weekdays are the same, and the two weekend days are the same), and 7 individual days. For the FST24, only the 24 hour option is available, with 4 ON/OFF periods.
- Page 9 Press Prog to scroll through programme 2 on, programme 2 off, programme 3 on, programme 3 off, programme 4 on and programme 4 off, adding in times as required. If times are not required, just leave the dashes in place, and scroll past that programme.
- Page 10 9.2. Programming Across Midnight Enter the programme on time as above. Enter the programme off time as 00:00 Enter the first programme on time for the next day as 00:00 Enter the required programme off time. Note: for 24 hour the on period for programme 1 must start 00:00. 10.
-
Page 11: Specifications
12. Boost One press of the boost button will provide a 1 hour boost, after which the output will turn off. Two presses will give 2 hours boost. A third press of the boost button will cancel any boost period. 13. - Page 12 For assistance with the product please contact: HELPLINE 020 8450 0515 or email helpline @ timeguard.com For a product brochure please contact: Timeguard Limited. Victory Park, 400 Edgware Road, London NW2 6ND Sales Office: 020 8452 1112 or email csc @ timeguard.com 67.058.504 (Issue 1).
