User Messages - Robomow RC304 Original Operating Instructions

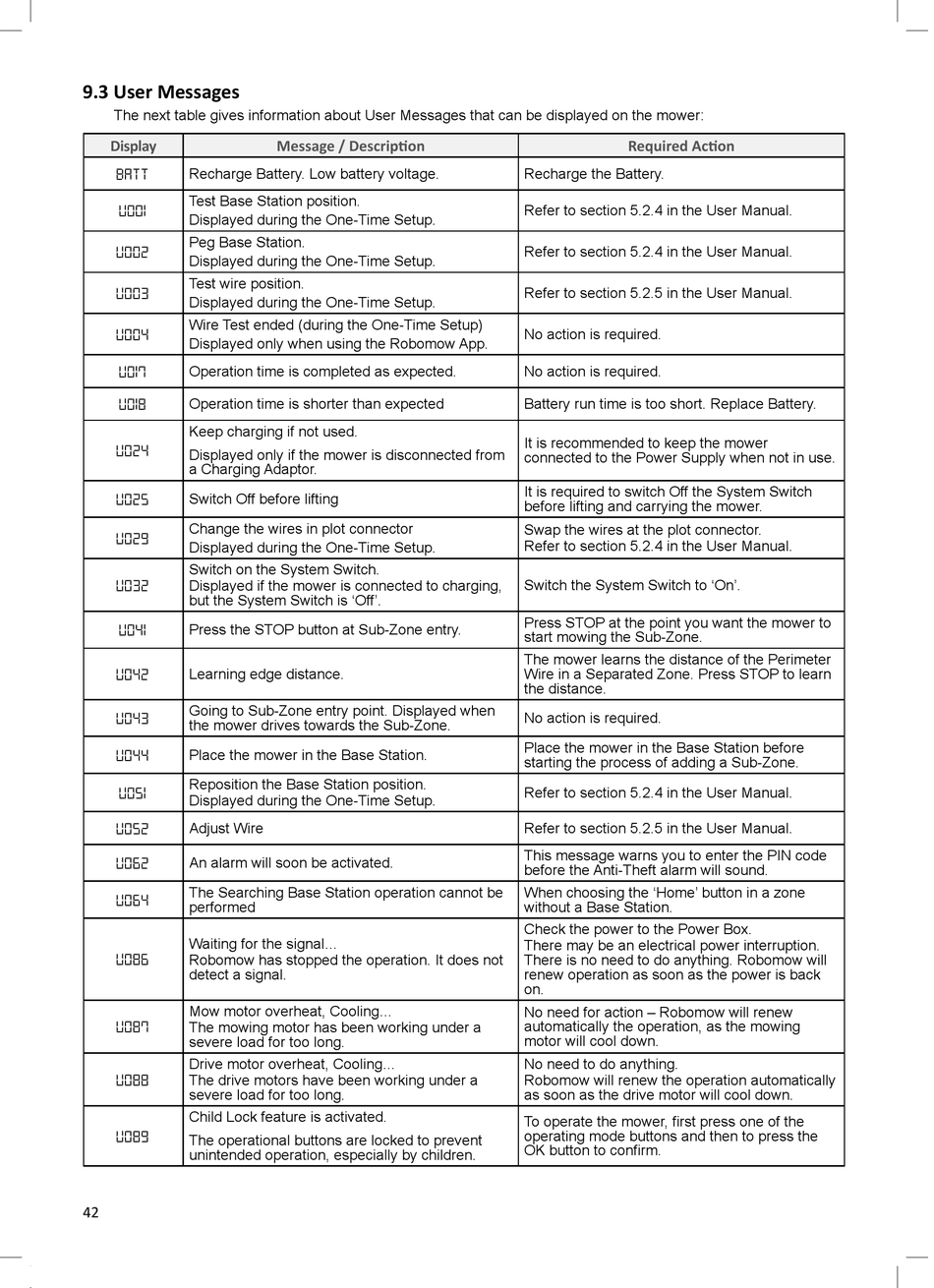

9.3 User Messages

The next table gives information about User Messages that can be displayed on the mower:
Display
Recharge Battery. Low battery voltage.
BATT
Test Base Station position.
U001
Displayed during the One-Time Setup.
Peg Base Station.
U002
Displayed during the One-Time Setup.
Test wire position.
U003
Displayed during the One-Time Setup.
Wire Test ended (during the One-Time Setup)
U004
Displayed only when using the Robomow App.
Operation time is completed as expected.
U017
Operation time is shorter than expected
U018
Keep charging if not used.
U024
Displayed only if the mower is disconnected from
a Charging Adaptor.
Switch Off before lifting
U025
Change the wires in plot connector
U029
Displayed during the One-Time Setup.
Switch on the System Switch.
Displayed if the mower is connected to charging,
U032
but the System Switch is 'Off'.
Press the STOP button at Sub-Zone entry.
U041
Learning edge distance.
U042
Going to Sub-Zone entry point. Displayed when
U043
the mower drives towards the Sub-Zone.
Place the mower in the Base Station.
U044
Reposition the Base Station position.
U051
Displayed during the One-Time Setup.
Adjust Wire
U052
An alarm will soon be activated.
U062
The Searching Base Station operation cannot be
U064
performed
Waiting for the signal...
Robomow has stopped the operation. It does not
U086
detect a signal.
Mow motor overheat, Cooling...
The mowing motor has been working under a
U087
severe load for too long.
Drive motor overheat, Cooling...
The drive motors have been working under a
U088
severe load for too long.
Child Lock feature is activated.
U089
The operational buttons are locked to prevent
unintended operation, especially by children.
42
Message / Description Required Action
Recharge the Battery.
Refer to section 5.2.4 in the User Manual.
Refer to section 5.2.4 in the User Manual.
Refer to section 5.2.5 in the User Manual.
No action is required.
No action is required.
Battery run time is too short. Replace Battery.
It is recommended to keep the mower
connected to the Power Supply when not in use.
It is required to switch Off the System Switch
before lifting and carrying the mower.
Swap the wires at the plot connector.
Refer to section 5.2.4 in the User Manual.
Switch the System Switch to 'On'.
Press STOP at the point you want the mower to
start mowing the Sub-Zone.
The mower learns the distance of the Perimeter
Wire in a Separated Zone. Press STOP to learn
the distance.
No action is required.
Place the mower in the Base Station before
starting the process of adding a Sub-Zone.
Refer to section 5.2.4 in the User Manual.
Refer to section 5.2.5 in the User Manual.
This message warns you to enter the PIN code
before the Anti-Theft alarm will sound.
When choosing the 'Home' button in a zone
without a Base Station.
Check the power to the Power Box.
There may be an electrical power interruption.
There is no need to do anything. Robomow will
renew operation as soon as the power is back
on.
No need for action – Robomow will renew
automatically the operation, as the mowing
motor will cool down.
No need to do anything.
Robomow will renew the operation automatically
as soon as the drive motor will cool down.
To operate the mower, first press one of the
operating mode buttons and then to press the
OK button to confirm.
