Summary of Contents for Mighty Clean MC1500

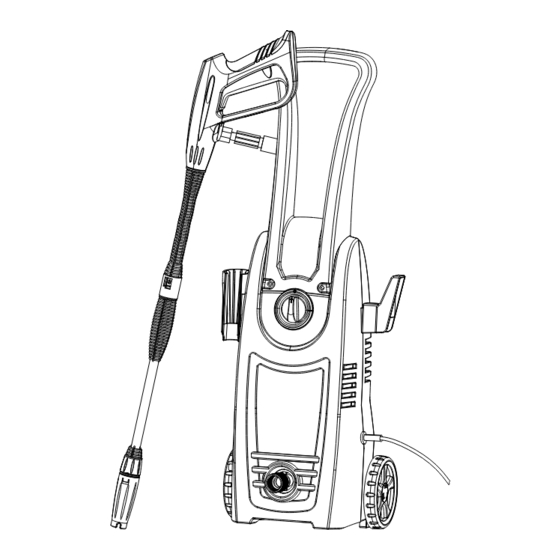

- Page 1 MC1500 English Electric High-Pressure Washer - Operator’s Manual Before operating this product, please read this manual thoroughly and retain it for future reference. 1-866-902-9690 www.MightyCleanUSA.com...
- Page 2 Do not return product to place of purchase. If you have any questions, call our toll-free hotline. 1-866-902-9690 www.MightyCleanUSA.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions....................1 Safety Features………………………..................4 Parts List and Diagram......................5 Assembly and Operation Instructions..................6 Machine Assembly....................6 Operation Instructions....................8 Working with Detergents..................8 Taking a Break......................9 Shutting Down and Cleaning Up................9 Winterizing and Long-Term Storage..................10 Cleaning and Maintenance....................11 Troubleshooting........................12 Technical Data........................16 Warranty..........................17 IMPORTANT SAFETY INSTRUCTIONS Before each use, please read all of the safety precautions. - Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING Risk of Injury Injection Hazard • Product can cause serious injury if the spray penetrates the skin. • Do not point the gun at anyone or any part of the body. In case of penetration, seek medical aid immediately.
-
Page 5: Ground Fault Circuit Interrupter Protection
IMPORTANT SAFETY INSTRUCTIONS 8. Always wear safety glasses or goggles when operating or performing maintenance. 9. Always move switch on product to “Off” position before connecting or disconnecting power cord to electrical outlets. 10.Always turn water supply on before turning pressure washer on unless draining for storage. Running pump dry causes serious damage. -
Page 6: Safety Features
SAFETY FEATURES TOTAL STOP SYSTEM The pressure washer is equipped with a total stop system (TSS) that will sense when the trigger on the handle is depressed or released. It will open the power circuit to the motor, and cause the pressure washer motor to stop. -
Page 7: Parts List And Diagram
PARTS LIST AND DIAGRAM On/Off Switch Item No. Quantity Part Name Handle Gun Holder Power Cord Bracket Water Filter Screen Adjustable Wand Trigger Handle High-pressure Hose Detergent Tank Screws Tip Cleaning Needle Water filter comes pre-attached on the water inlet, located on the front of the pressure washer. -
Page 8: Assembly And Operation Instructions
ASSEMBLY AND OPERATION INSTRUCTIONS Surface Preparation Before starting any cleaning task, it is important to inspect the area for objects that could create a hazard. Remove any objects from the work area that could be tripped over, such as toys or outdoor furniture. - Page 9 ASSEMBLY AND OPERATION INSTRUCTIONS Insert adjustable wand to the trigger handle Attach the garden hose to the water inlet and twist 1/4 turn to lock in position. (hand tighten only). Attach garden hose to water supply and turn Make sure the On/Off switch is in the “Off” water valve on to the full “On”...
-
Page 10: Operation Instructions
ASSEMBLY AND OPERATION INSTRUCTIONS OPERATION INSTRUCTIONS Adjustable Spray Nozzle The adjustable spray nozzle can be adjusted from fan to jet. The spray is adjusted by turning the nozzle. CAUTION Jet spray adjustment is very strong. Do not adjust while spraying. WORKING WITH DETERGENTS Working with detergent ensures a quick soaking of the dirt, and allows the high-pressure water to penetrate and remove the dirt more effectively. -
Page 11: Taking A Break
ASSEMBLY AND OPERATION INSTRUCTIONS Turn on the pressure washer. Pull trigger to operate washer. The liquid detergent will automatically mix with water and be discharged through the nozzle at low-pressure. Allow detergent to remain on the surface for a short time before rinsing. Do not allow detergent to dry on surface. -
Page 12: Winterizing And Long-Term Storage
WINTERIZING AND LONG-TERM STORAGE OPTIMUM WINTERIZING PROCEDURE Winterizing your pressure washer will help protect and prolong its life. We strongly recommend you follow the below steps using Pressure Washer Pump Saver*. This will keep the internal parts lubricated, protected from rust, and prevents the pump from freezing. 1. -
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE Connections Connections on pressure washer hoses, trigger handle and adjustable wand should be cleaned regularly and lubricated with non-water soluble grease. Tip of the Wand Only A clogged tip can cause pressure build-up, clean immediately. You can clean the wand tip by carefully inserting the tip cleaning needle, or a thin, sharp instrument (i.e. -
Page 14: Troubleshooting
TROUBLESHOOTING Disconnect the pressure washer from the power source before making any repairs. Symptom Cause Solution Motor does not run when on, On/Off switch is in the “Off” Turn switch to the “On” (-) fully connected and (O) position. position. trigger depressed. - Page 15 TROUBLESHOOTING Symptom Cause Solution Output pressure varies high Not enough inlet water supply. Turn water on fully. Check and low. garden hose for kinks, leaks or blockage. Pump is sucking air. Check that hoses and fittings are airtight. Turn off washer, and purge pump by squeezing trigger handle until a steady flow of water emerges through the nozzle.
- Page 16 TROUBLESHOOTING Symptom Cause Solution Garden hose connection Loose fittings. Tighten fittings. leaks. Missing/worn rubber washer. Insert new washer. Broken o-ring or plastic insert. Call the Toll-Free Hotline: Spray wand, extension, or nozzle leaks. 1-866-902-9690 Pump is noisy. Pump is sucking air. Check that hoses and fittings are airtight.
- Page 17 TROUBLESHOOTING Symptom Cause Solution Pressure washer not used for Call the Toll-Free Hotline: Motor buzzes but fails to run. long periods. 1-866-902-9690 Residual friction among Disconnect water supply and power on for 2 to 3 seconds, components. Washer might repeat 4-5 times or until the hum.
-
Page 18: Technical Data
TECHNICAL DATA Power Source Requirement: 120 V / 60 Hz Rated Current: 10 AMP Max. Pressure: 1500 PSI Max. Flow Rate: 1.35 GPM Electrical Cord: 35’ High-pressure Hose: 20’ Inlet Water: Cold Tap Water, Max. 104 F / 40 16 English... -
Page 19: Warranty
2. Send in proof-of-purchase and serial number (if applicable) to confirm warranty coverage. 3. If service or a warranty evaluation is requested, Mighty Clean USA will provide an RGA number that should be used in all communications with Mighty Clean USA and is required to be indicated on the product itself and on the outside of the box. - Page 20 For the full line of Mighty Clean tools, replacement parts or accessories visit: www.ForceToolsUSA.com If you have any questions, call our toll-free hotline 1-866-902-9690 www.MightyCleanUSA.com Manufactured by SUMEC 3939 Royal Dr. NW Suite 234 Kennesaw, GA 30144 Rev 201502 MC1500...
