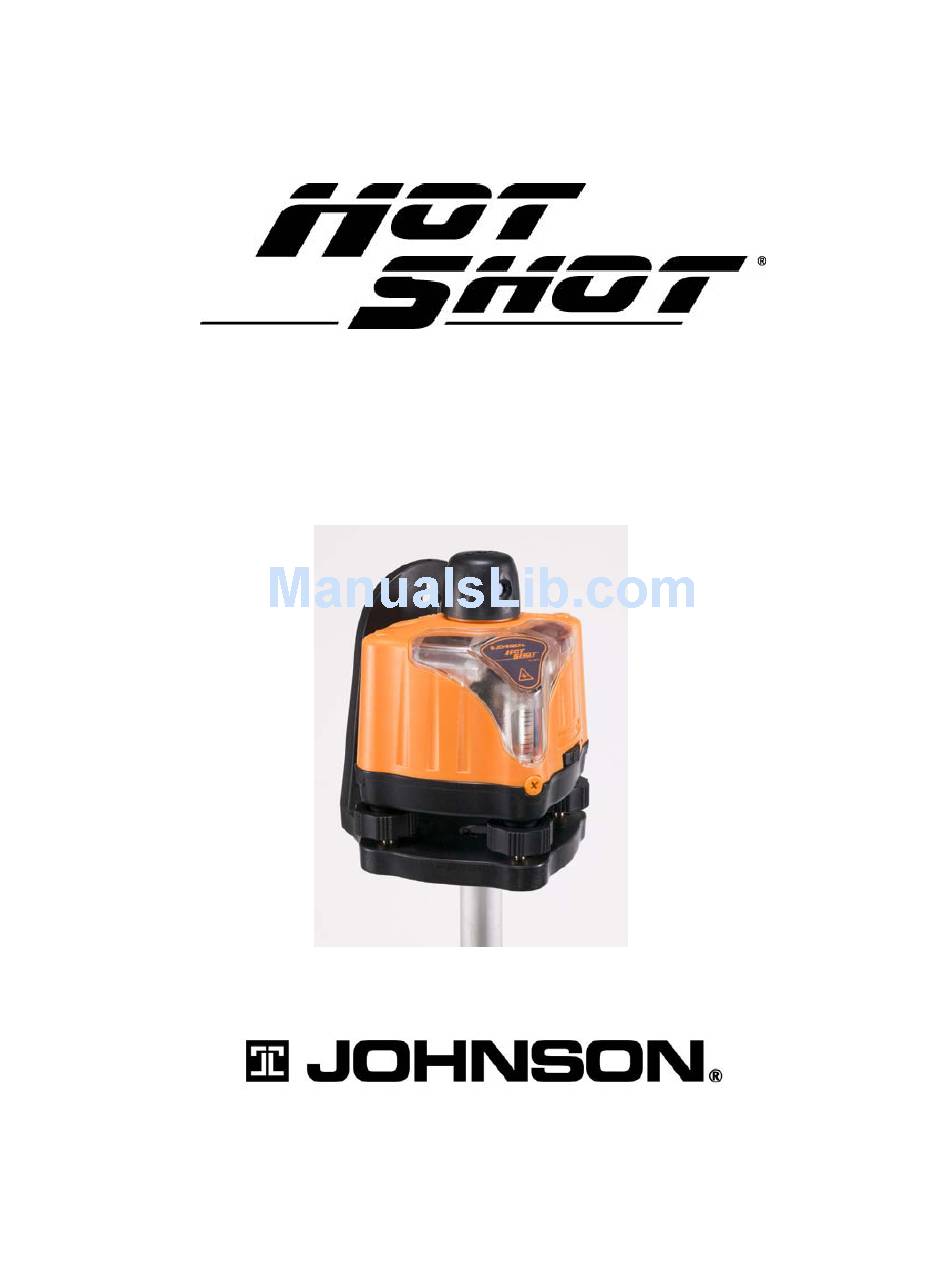

- Page 1 ROTARY LASER LEVEL KIT Model No. 40-0917 ASSEMBLY AND OPERATING MANUAL LEVEL & TOOL...
-
Page 2: About This Product
ABOUT THIS PRODUCT The Johnson Rotary Laser Level is an instrument utilizing a laser beam to plot distant points or a continuous horizontal line. The device incorporates a built-in rotary unit with a speed control knob, three (3) leveling vials, three (3) leveling screws, plus an adjusting base designed for both tripod- and wall-mounting. -
Page 3: Location / Content Of Warning Labels
LOCATION / CONTENT OF WARNING LABELS... -
Page 4: Location Of Parts/Components
LOCATION OF PARTS / COMPONENTS Rotary head Base with tripod Laser beam exit hole thread and wall- mounting brackets Horizontal (level) vial “X” Vertical (plumb) vial“Y” On/off switch and speed control knob Levelling screws TECHNICAL SPECIFICATIONS Class of laser: IIIa (class 3 protection) Maximum power output: Measuring range: 30m –... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS Please read and understand all the following instructions prior to using this laser tool. Failure to follow all the warnings below may result in bodily injury. IMPORTANT: Read all instructions prior to operating this laser tool and DO NOT remove any labels from the tool. -
Page 6: Assembly And Adjustment
CHANGING BATTERIES AND ACTIVATING LASER BEAM Unscrew the cover on the back top of the unit and insert four (4) AA batteries (included). To turn on, rotate the on/off switch in the direction indicated by the arrow.Turning the knob will increase or decrease the rotation speed. Please Note: Used/discharged batteries are hazardous waste and must be disposed of properly. -
Page 7: Typical Applications
TYPICAL APPLICATIONS Installing drop ceilings Installing mouldings WARNING! DO NOT LOOK DIRECTLY INTO THE LIGHT BEAM. DO NOT AIM LIGHT BEAM DIRECTLY INTO EYES. THIS WILL DAMAGE THE EYES. -
Page 8: Guarantee Statement
GUARANTEE STATEMENT The Johnson Laser Level is guaranteed against all defects in construction and material for a period of one year. This guarantee is limited to the replacement of defective parts upon presentation of the sales slip. This guarantee is not applicable in the event of, but not limited to, damage due to misuse by failing to heed the instructions presented herein, of unauthorized manipulation of the level...
