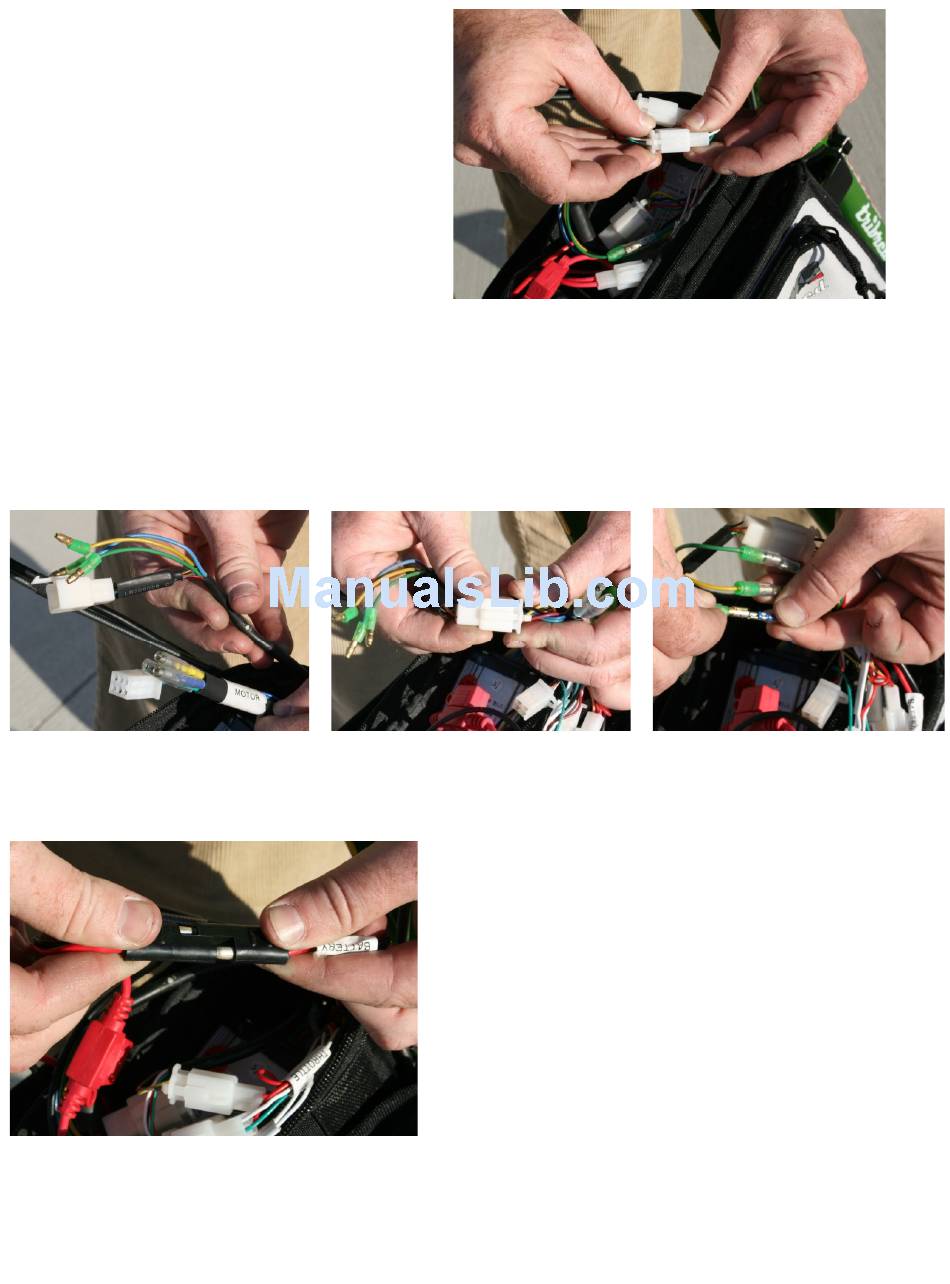

Connect the four‐pin wire connector from
the throttle to the four‐pin connector from
the controller labeled "Throttle."
Connect the motor. Connect the six‐pin connector from the motor to the six‐pin connector from the
controller labeled "Motor." Connect the three wires from the motor to the same colored individual
wires from the controller labeled "Motor." Slide the clear rubber sleeve (arrow) that covers the metal
connector portion of the wire down the wire to expose the metal. Connect the wires together and
slide the clear rubber sleeve back over the connection. This will insulate the connection as well as
keep the connection together. keep the connection together
Connect the batteries. Remove the protective sleeve
from the black connector labeled "battery." Connect
the black connector from the controller to the black
connector from the battery. (Note: You may hear a
pop sound when the connection is initially made.
This is normal. ) Check the fuse in the small red box
attached to the battery cable.
