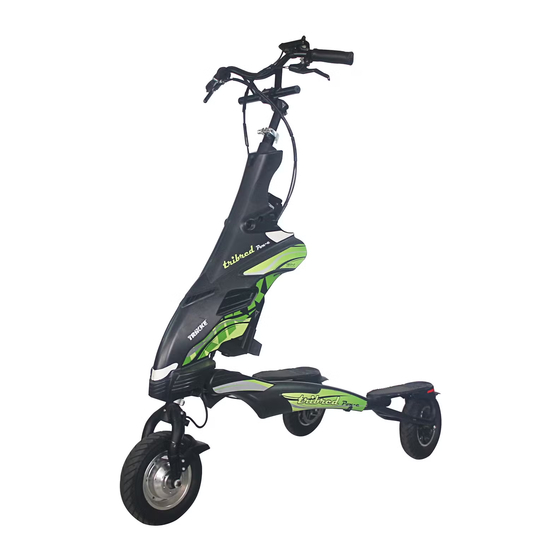

Trikke Pon-e 48V Owner's Manual

Hide thumbs

Twist Grip Throttle

with Charge Level

Indicator LEDs

Brake Levers with

Parking Lock

Feature

Powerful 10''

Hub Motor in

Front Wheel

(180W, 250W

or 350W)

Patented

High Performance

3CV Cambering System

Adjustable Handlebar Height

with Quick Release

Panasonic Lithium Battery

Pack with On-off Key

Dual Speed

Econo & Turbo

Dual Independent

Rear Disc Brakes

High Pressure

Air Tires

on Alloy Rims

T8air Deluxe Carving

Vehicle with Foldable

Aluminum Frame

E L E C T R I C V E H I C L E S

Owner's Manual

THIS MANUAL IS FOR THE FOLLOWING MODELS:

Pon-e 48V

Pon-e L 36V

Table of Contents

Need help?

Do you have a question about the Pon-e 48V and is the answer not in the manual?

Questions and answers

Summary of Contents for Trikke Pon-e 48V

Page 1 Dual Independent Rear Disc Brakes High Pressure Air Tires on Alloy Rims Patented T8air Deluxe Carving High Performance Vehicle with Foldable 3CV Cambering System Aluminum Frame Owner’s Manual THIS MANUAL IS FOR THE FOLLOWING MODELS: Pon-e 48V Pon-e L 36V...
Page 2 Use common sense when riding. Read an understand the Safety Information section on page 15. Trikke EV Owner’s Manual - V5 06/30/14 - page 1...
Page 3 Avoid water, bumps, gravel, sand, cracks, uneven surfaces or obstacles that may Ÿ suddenly block your way or cause you to lose control. The Trikke EV is not intended for off road use. Avoid using at night. Riding with only one hand or no hands can be extremely dangerous. Use both hands to Ÿ...
Page 4 The braking to a full stop, at high speed, in a safe environment, to assess the distance Ÿ required to stop. Be aware of low objects. You are taller than you think when you ride the Trikke EV. Be Ÿ ready to duck for tree branches, street signs, etc..
Page 5 Obey all traffic laws. Be courteous to drivers of other vehicles and pedestrians. Share the road! Do not modify your Trikke EV. Use only original Trikke parts or accessories. See limited Ÿ...
Page 6 The Trikke EV is an electric vehicle and as such there is potential for shock or fire, if the Ÿ electrical system is tampered with or exposed to conditions of high humidity, causing possible short circuit or overload of the electric system. Electrical components must be protected from conditions of high humidity and physical damage.
Page 7 Front Fork Front Wheel / Motor Assembly* Speed Throttle* Steering Axle Battery* Speed Switch 1-2* Front Controller Box* Tube Cambering Joint Cambering Axle Folding Steering Mechanism Stopper * - POWER COMPONENTS Trikke EV Owner’s Manual - V5 06/30/14 - page 6...
Page 8 Step 1: Unfold the Frame Please see page 10 for how to fold and unfold the frame. Trikke EV Owner’s Manual - V5 06/30/14 - page 7...
Page 9: Step 2: Mounting The Handlebar
Adjust the handlebar by aligning the axis of the front wheel with the handlebars (you may need to loosen the bracket screws to adjust the alignment of the handlebars if they are tight). Trikke EV Owner’s Manual - V5 06/30/14 - page 8...
Page 10: Adjusting Handlebar Height
Turn the key clockwise to locked position while pushing the battery down (the battery is Ÿ pre adjusted for a tight fit). Turn the key to the next position clockwise, to turn the battery ON. Ÿ Trikke EV Owner’s Manual - V5 06/30/14 - page 9...
Page 11: Unfolding The Frame
Twist the knobs back to release the folding mechanism, allowing them to lock in place (frame mounted). You should hear two clicks indicating the locking of each arm. Folding the Frame UNLOCK LOCK Trikke EV Owner’s Manual - V3 11/10/10 - page 10...
Page 12 Position yourself between the two arms of the Trikke EV holding the handlebar stem with one hand. With the other hand, pull back the folding knobs on both sides into the unlocked position. Start folding the frame and then release the levers from the unlocked position.
Page 13 Move the outer brake pad in or out as necessary (step 3, use 3 mm allen wrench) - note that the adjustment screw is inside the hole at the bottom - do not loosen the 5mm Trikke EV Owner’s Manual - V5 06/30/14 - page 12...
Page 14 ONLY THE BRAKE PADS. Tires The front and rear tires of the Trikke EV come with lower pressure from the factory, for transport reasons. You will have to adjust tire pressure according to the weight of the rider and usage preferences. Do not exceed the recommended tire pressure.
Page 15: Pre-Ride Check
Before riding the first time, please take a few minutes and review the Safety Riding Tips on pages 3-6 of this manual. For the safety of friends and others who will try your new Trikke EV it is your responsibility to guide them how to ride safely.
Page 16: Safety Issues
Apply both brakes simultaneously (Trikke EV has independent brakes on rear wheels left and right respectively actuated by levers on the handlebars left and right). Distributing your weight evenly over each rear wheel is crucial for maximum braking efficiency.
Page 17 Safety Warning 4: DOWNHILL As the Trikke EV is a totally new machine, with a unique handling, we recommend that you take time to familiarize yourself with the vehicle and to gradually explore the limits of performance with each ride.
Page 18 The Trikke EV will accelerate quickly, so try to ride at speeds appropriate to your skill Safety Warning 5: SAFETY EQUIPMENT ALWAYS USE SAFETY EQUIPMENT, ESPECIALLY A HELMET.
Page 19: Riding Range
(1 or 2), assistance with body propulsion, tire type and pressure. 2. To extend the riding range of the Trikke EV, use Econo speed (1) 20 km/h max, avoid long or steep climbing, help the vehicle as much as possible with body propulsion and use the throttle sparingly, and keep tires inflated to the recommended pressure.
Page 20 6. Riders should consider the need for a generous distance to reduce speed (or stop) when riding at high speed. Avoid riding on wet or flooded surface. The Trikke EV can withstand a small amount of moisture, however, is not recommended for continuous use in rain or wet.
Page 21 9. To turn the Trikke EV OFF. The indicator lights for battery charge level will turn the battery key to OFF position. The Trikke EV should be turned OFF when not in use to prevent accidental activation of the vehicle.
Page 22: Battery Operation
14. To remove the battery from the Trikke EV, push the key in and turn to the unlock position. Pull the handle of the battery up toward the handlebars. The battery should slide freely up the battery rail until the battery is loose.
Page 23 Lock the parking brakes for safety. 4. If the above methods do not work, fold your Tribred and rest it against the wall or lay on the floor. Trikke EV Owner’s Manual - V5 06/30/14 - page 22...
Page 24: Maintenance
Notice the flat areas on the shaft and tire. Pay attention to the direction of Trikke EV Owner’s Manual - V5 06/30/14 - page 23...
Page 25 The Slack to connector must then be firmelly re- the Back connected to the bottom of the controller box. Motor cable inner side of the fork Replacing Rear Tires 13Nm - Trikke EV Owner’s Manual - V5 06/30/14 page 24...
Page 26 1. Trikke EV uses a brushless DC motor 1. The lithium-ion battery included with the with planetary gears, also known as Trikke EV has a useful life of 500 complete cycles "hub motor." of operation with a performance above 70% of 2.
Page 27 (may need to remove switch; if doesn't = faulty speed 1 (econo). switch) and also to controller (2-pin controller. connector white-white / to red-red). Bridge 2-pin connector white-white from controller and check speed. Trikke EV Owner’s Manual - V5 06/30/14 - page 26...
Page 28: Specifications
Ranges listed above depict an average with a rider weighing 200lbs (90kg). FEATURES Folding Frame Ÿ Adjustable Handlebar Height Ÿ Quick-Swap Li-Ion Battery with Key Ignition/Locking Feature Ÿ Dual Speed (Econo and Express) Ÿ Parking Brakes Ÿ Trikke EV Owner’s Manual - V5 06/30/14 - page 27...
Page 29 Dimensions 26.5’’ (67cm) 49’’ (125cm) 25.5’’ (65cm) 13.4" 26.5" (34cm) (67cm) Trikke EV Owner’s Manual - V5 06/30/14 - page 28...
Page 30 BODY POWERED VEHICLE Trikke BPV are vehicles that use just body movement for propulsion. An excellent form of low impact exercise that involves the entire body while providing fun combined with transportation. This simple and elegant frame provides a stable 3-point platform that leans into the turn with the rider while all three wheels remain in contact with the ground for maximum stability.
Page 31 T R I K K E p a r t s f o r g u a r a n t e e d performance. Parts manual is available at trikke.com website. Trikke EV Owner’s Manual - V5 06/30/14 - page 30...
Page 32 Subject to the following limitations, terms and conditions, Trikke Tech, Inc. ("Company") warrants to the original owner of each new vehicle Trikke ™ Trikke EV ("Vehicle") that the vehicle when new is free from defects in material and workmanship. This warranty is valid for 12 months from the date of purchase from the Company or an authorized dealer or representative.
Page 33 Product Life Cycle The Trikke ™ Trikke EV vehicle has a lifecycle. The duration of this cycle varies with the maintenance and care received during their time of use, and the type and amount of use that the vehicle is subjected.
Page 34 This limited warranty does provide the original owner with certain legal rights and recourse and the original owner may possess other rights or recourse, depending on the state, jurisdiction, country or province. Trikke EV Owner’s Manual - V5 06/30/14 - page 33...
Page 35 TECHNOLOGY Patent & Trademark Information The Trikke EV vehicle is a product developed, patented and property of Trikke Tech, Inc. protected by the following International Patents: U.S. 6,220,612, 6,499,751, 6,827,358, 6,976,687; 1235709 Europe, Canada 2,390,224; China ZL 00 8 18040.7 - Other patents pending.
Page 36 ROAD. PLEASE BE COURTEOUS TO OTHER RIDERS AND PEDESTRIANS WHO MAY BE SHARING THE PAVEMENT WITH YOU. • DO NOT MODIFY YOUR Trikke EV VEHICLE. ONLY USE TRIKKE TECH, INC. APPROVED PARTS AND ACCESSORIES. SEE THE LIMITED WARRANTY FOR USE RESTRICTIONS.
