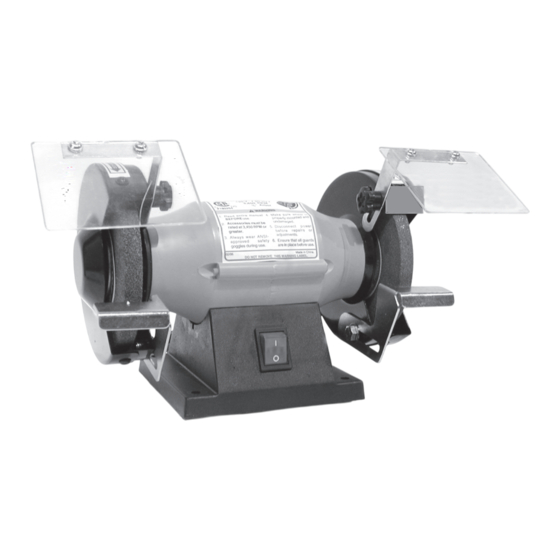

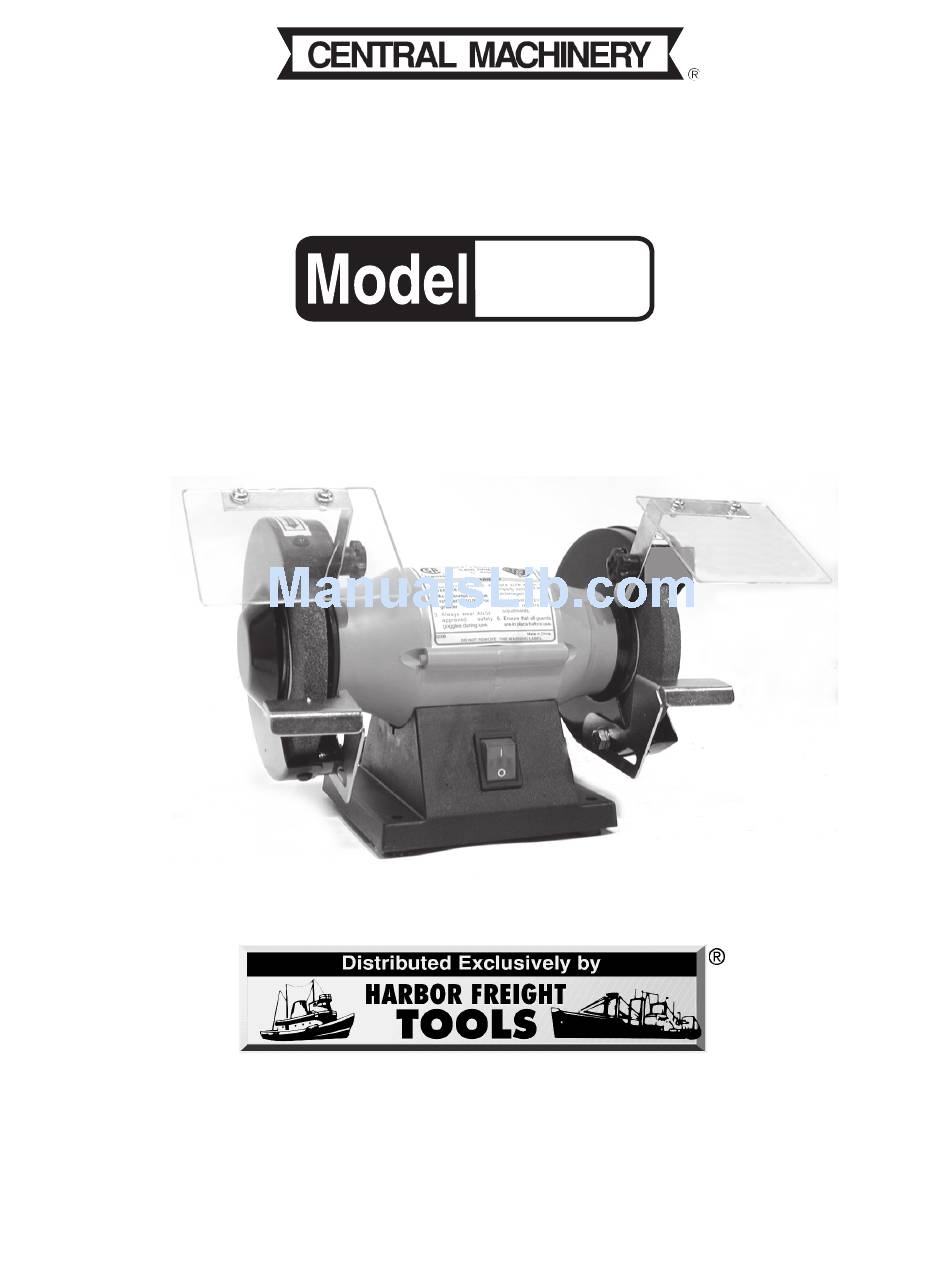

- Page 1 5 INCH BENCH GRINDER 5 INCH BENCH GRINDER 5 INCH BENCH GRINDER 5 INCH BENCH GRINDER 94186 ASSEMBLY AND OPERATING INSTRUCTIONS Due to continuing improvements, actual product may differ slightly from the product described herein. 3491 MISSION OAKS BLVD., CAMARILLO, CA 93011 VISIT OUR WEB SITE AT HTTP://WWW.HARBORFREIGHT.COM...
-
Page 2: Specifications
Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control. Protect others in the work area from debris such as chips and sparks. Provide barriers or shields as needed. REV 06/06 Page 2 SKU 94186 For technical questions, please call 1-800-444-3353... -
Page 3: Electrical Safety
13. Remove adjusting keys or wrenches before turning the power tool on. A wrench or a key that is left attached to a rotating part of the power tool may result in personal injury. Page 3 SKU 94186 For technical questions, please call 1-800-444-3353... - Page 4 Note: Performance of this tool may vary depending on variations in local line voltage. Exten- sion cord usage may also affect tool performance. Page 4 SKU 94186 For technical questions, please call 1-800-444-3353...
-
Page 5: Safety Instructions For Bench Grinder
16. Do not use aluminum oxide wheels when grinding nonferrous metals such as aluminum and brass. Use silicon carbide wheels for nonferrous metals. 17. When buffing material, always hold the material on the lower side of the buffing wheel. Page 5 SKU 94186 For technical questions, please call 1-800-444-3353... - Page 6 Your tool must be plugged into an appropriate outlet, properly installed and grounded in accordance with all codes and ordinances. The plug and outlet should look like those in the following illustration. (See Figure A.) Page 6 SKU 94186 For technical questions, please call 1-800-444-3353...
-
Page 7: Extension Cords
Always replace a damaged extension cord or have it repaired by a qualified electrician before using it. Protect your extension cords from sharp objects, excessive heat, and damp or wet areas. Page 7 SKU 94186 For technical questions, please call 1-800-444-3353... - Page 8 Assembly Drawing and Parts List at the end of this manual. If any parts are missing or broken, please call Harbor Freight Tools at the number on the cover of this manual as soon as possible. Page 8 SKU 94186 For technical questions, please call 1-800-444-3353...
-
Page 9: Bench Mounting
Move the Bench Grinder aside and drill four 1/4 inch mounting holes into the workbench. Place Bolts (not supplied) through the Base (33) mounting holes and secure to the workbench using hardware (not supplied). Page 9 SKU 94186 For technical questions, please call 1-800-444-3353... -
Page 10: Inspection, Maintenance, And Cleaning
Do not use damaged equipment. Periodically recheck all nuts, bolts, and screws for tightness. Store in a clean and dry location. Page 10 SKU 94186 For technical questions, please call 1-800-444-3353... -
Page 11: Dressing The Grinding Wheel
CAUTION: Using a Grinding Wheel not rated to run at least to 3450 Loosen Nut (3) RPM could cause it to fly apart, Clockwise causing injury, or damage to the Bench Grinder. Page 11 SKU 94186 For technical questions, please call 1-800-444-3353... -
Page 12: Parts List
Motor Housing Switch Line Cord Base Plate Condenser Screw Base NOTE: Some parts are listed and shown for illustration purposes only and are not available individually as re- placement parts. Page 12 SKU 94186 For technical questions, please call 1-800-444-3353... - Page 13 TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. Page 13 SKU 94186 For technical questions, please call 1-800-444-3353...
