KING Jack OA8001 Installation Instructions

Vhf + uhf amplified hdtv antenna
Hide thumbs Also See for OA8001:
1
2
3
4

Advertisement

Table of Contents

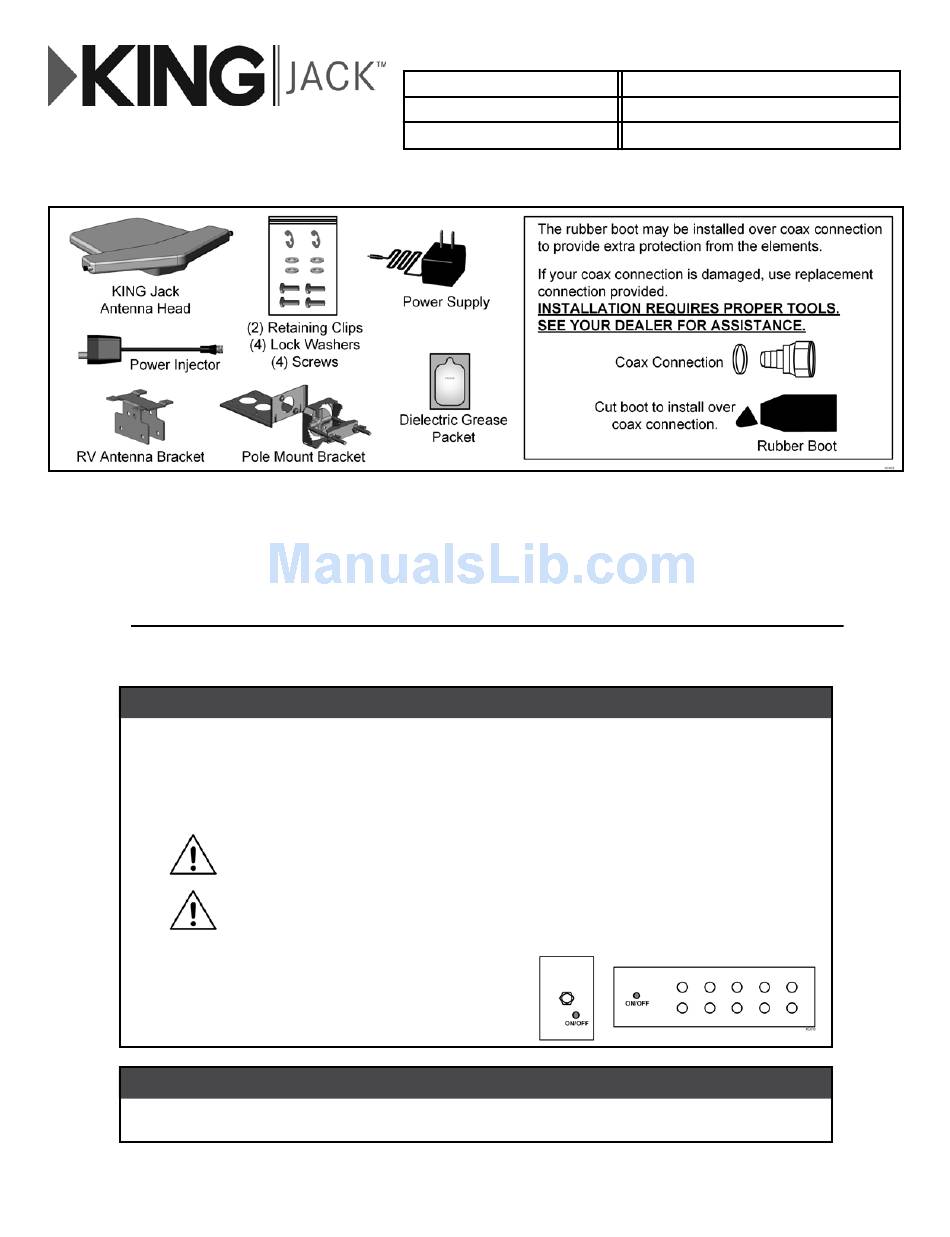

STEP 1:
Verify all components and parts are included.
STEP 2:
Install the KING Jack Antenna in one of two ways (Page 2):
• RV Mounting: Mount to a bat wing style retractable arm using the supplied RV Antenna Bracket.
• Pole Mounting: Mount to a stationary pole (on a house for example) using the supplied Pole Mount Bracket.
STEP 3:
READ THE FOLLOWING INFORMATION CAREFULLY, THEN MAKE CONNECTIONS ON PAGE 3.
The KING Jack antenna is an amplified antenna that requires +12 volts power.
When using an existing power injector already in the RV
When replacing an existing amplified antenna that has an existing power injector, just replace
the antenna head assembly and verify that you have power to the KING Jack antenna when the
wall switch power injector is "ON." A red LED light on the bottom of the KING Jack antenna will
illuminate when +12 volts is present and the internal amplifier is powered. Do not use both the
existing power injector and the power injector supplied with the KING Jack Antenna!
Using two power injectors in the circuit can cause the KING Jack Antenna
When using the KING Jack antenna with the supplied power injector
Verify that any existing power injector has been disconnected.
STEP 4:
Read the OPERATING INSTRUCTIONS on page 4 for antenna pointing instructions.
Reception Frequencies
VHF: 47-230 MHz
UHF: 470-860 MHz
DO NOT MOUNT TO A POLE ON A VEHICLE.
power supply to overheat, possibly causing injury or severe damage.
Use either the existing power injector or the KING Jack power injector.
WARNING: DO NOT USE BOTH POWER INJECTORS!
A typical power injector for an
existing RV antenna will be a wall
plate or an A/V distribution box with
an ON/OFF type switch.
VHF + UHF Amplified HDTV Antenna
Model OA8000 & OA8001 Installation Instructions
Page 1
Voltage
Input: AC110-120V / AC220-240V
Working: DC12V / 100mA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OA8001 and is the answer not in the manual?

Questions and answers

Related Manuals for KING Jack OA8001

Summary of Contents for KING Jack OA8001

  • Page 1 KING Jack antenna when the wall switch power injector is “ON.” A red LED light on the bottom of the KING Jack antenna will illuminate when +12 volts is present and the internal amplifier is powered. Do not use both the...
  • Page 2 1. Turn off antenna power injector at wall switch or A/V switch and raise the existing antenna. 2. Attach the RV antenna bracket to the KING Jack antenna with the 4 supplied sets of lock washers and screws. 3. Unscrew coax cable and remove existing bat wing style antenna (if present) from the retractable arm (keep retaining pins and clips).
  • Page 3 Page 3...

  • Page 4: Troubleshooting

    LIMITED ONE YEAR WARRANTY Every new KING Jack HDTV Antenna is covered by the following one year parts limited warranty from the date of original purchase: • One year parts warranty: The customer is not responsible for the cost of replacement parts if the original part is determined to be defective under the terms of the warranty. The customer is responsible for the cost of replacement parts after one year.
