Summary of Contents for Turtle Beach EAR FORCE RECON 320
- Page 1 For: PC | Mobile 7.1 CHANNEL SURROUND SOUND AMPLIFIED PC GAMING HEADSET USER GUIDE...
- Page 2 Dolby 7.1 Channel Surround Sound Amplified PC Gaming Headset Congratulations on your purchase of the Ear Force Recon 320 headset from Turtle Beach. Designed for PC gaming, the Recon 320 also supports music, movies, chat and Skype® communication. Turtle Beach brings over...
-
Page 3: Table Of Contents
Table of Contents About the Recon 320 Parts and Controls Connections Windows PC Setup Skype® Setup Connecting Mobile Devices Adjusting Sound Specifications Troubleshooting Tips Important Safety Information... - Page 4 In the Box turtlebeach.com/support For our Knowledgebase and Technical Support please visit: Recon 320 Headset Removable Mic Boom Mobile Cable with In-Line Microphone PC Cable with In-Line Controls Turtle Beach Sticker Go to Table of Contents...
-
Page 5: About The Recon 320

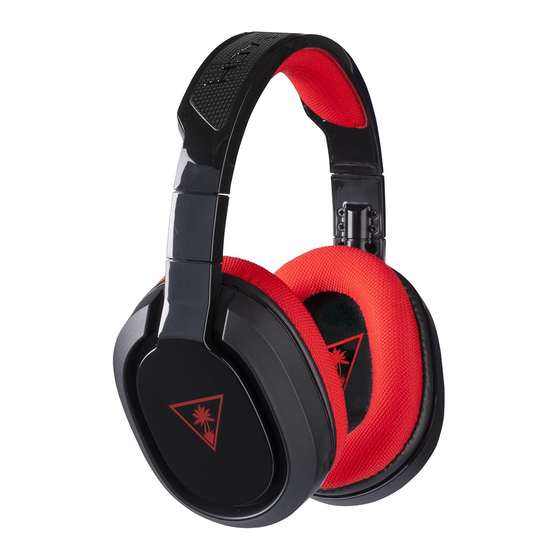

About the Recon 320 Overview Place yourself in the middle of the action with the Ear Force® Recon 320 Surround Sound Gaming Headset. Pinpoint audio cues with amazing Dolby 7.1 Surround Sound** through full-range 50mm speakers and enjoy hours of comfort and noise-isolation with around-the-ear, breathable mesh ear cushions. -
Page 6: Parts And Controls P6
Parts and Controls PC Cable In-Line Controls Mic Mute Switch Switch to to mute the microphone. Master Volume Adjusts the volume of the incoming game and chat audio. Tip : Turn up the volume on your PC and leave it that way. This convenient Master Volume will be the only one you ever need to adjust. -
Page 7: Connections P7
Connections 1. Insert the removable Mic Boom into the jack on the left earcup of the Recon 320. 2. Insert the audio connector into the left earcup of the Recon 320 3. Insert the USB end of the PC Cable into any available port on your PC.. Go to Table of Contents... -
Page 8: Windows Pc Setup P8
Windows PC Setup The Ear Force Recon 320 headset is designed for use with Windows 7 and Windows 8® PCs. Visit TurtleBeach.com/Recon320Surround and download the Turtle Beach Dolby Headphone Driver. Follow the on-screen prompts to install the Driver and restart your computer. - Page 9 Windows PC Setup 3. Left Click Properties and select the Surround Sound tab. 4. Make sure “Dolby On” is selected, then left-click “OK”. 4. Left click Recon 320 with Dolby Headphone and then click the Configure button. Go to Table of Contents...
- Page 10 Windows PC Setup 5. In the Audio Channels list, make sure 7.1 Surround is selected. 6. Click on Next two times to ensure that Front Left and Right and Surround Speakers are set to full range. Then click on Next again to confirm setting. 7.
-
Page 11: Skype® Setup P11
Skype® Setup The Recon 320 is ideal for clear, hands-free Skype communication. Skype setup takes just a few seconds. 1. For Windows® PCs, in the Skype application menu bar, click on Call > Audio Settings. 2. In the Audio Settings dialog box, select Recon 320 with Dolby Headphone in the Microphone drop down box. -
Page 12: Connecting Mobile Devices P12
Connecting Mobile Devices You can plug the Recon 320 headset directly into mobile phones, tablets and other devices using the Mobile Cable with In-Line Microphone. Go to Table of Contents... -
Page 13: Adjusting Sound P13
Adjusting Sound If you want to… Then... Adjust game/media volume. Use the Master Volume control on the convenient in-line cable. If you want to… Then... Turn the microphone on or off. Use the switch on the In-line cable to mute all outgoing mic audio. Go to Table of Contents... - Page 14 Speaker Plates Personalize the look of your Recon 320 with a new design from TurtleBeach.com/plates. *The availability of additional speaker plates varies by market and is subject to local restrictions. Go to Table of Contents...
- Page 15 Specifications · Speakers: 50mm Diameter with neodymium magnets · Headset frequency response: 20 Hz – 20 kHz · Microphone Design: Removable Omni-Directional · Headset input: USB (PC) & 3.5 mm 4-pole (Mobile) · Headset weight: 8oz (220g) Go to Table of Contents...
- Page 16 Troubleshooting Tips No sound: Possible Cause Solution Master Volume Control turned down Check that the Master Volume Control is set to an appropriate level. PC Volume Control turned down On your PC, click the Speaker icon in the System Tray (lower right corner of the screen) and slide it up to an appropriate level.
-
Page 17: Important Safety Information P17
Important Safety Information To avoid potential damage to the device, always disconnect all cables before transporting it. WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time, so it is important to keep the volume at a safe level. Over time, your ears adapt to loud volume levels, so a level that may not cause initial discomfort can still damage your hearing. - Page 18 Regulatory Compliance Statements for the EAR FORCE Recon 320 Model Federal Communications Commission (FCC) Compliance Notices Class B Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B of the FCC Rules.
-
Page 19: Declaration Of Conformity
Declaration of Conformity Heading Marking by this symbol: indicates compliance with the Essential Requirements of the EMC Directive of the European Union (2004/108/EC). This equipment meets the following conformance standards: Safety: EN 60950-1: 2006 + A11 + A1 + A12 (T-Mark License) Also Licensed for Standards: EC 60950-1: 2005 + A1: 2009, (CB Scheme Report/Certificate), UL60950-1 (NRTL License), CSA22.2, 60950-1 (SCC License) - Page 20 LIMITED ONE YEAR WARRANTY FOR TURTLE BEACH PRODUCTS: Voyetra Turtle Beach, Inc. (“VTB”) warrants to the original end-user purchaser (“Purchaser”) that the retail Turtle Beach hardware product herein (“Product”) will be free of defects in materials and workmanship for a period of one year from the date of purchase by the Purchaser (“Warranty Period”).
- Page 21 EXCLUSIONS FROM LIMITED WARRANTY: This Limited Warranty shall not apply and VTB has no liability under this Limited Warranty if the Turtle Beach Product: - is used for commercial purposes such as “LAN, Call Centers” (including rental or lease); - is modified or tampered with; - is damaged by Acts of God, power surge, misuse, abuse, negligence, accident, wear and tear, mishandling, misapplication, or other causes unrelated to defective materials or workmanship;...
- Page 22 © 2014 Voyetra Turtle Beach, Inc. Turtle Beach, the Palm Tree Logo, Voyetra, Ear Force, and Audio Advantage are trademarks of Voyetra Turtle Beach, Inc. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
