AP46WA
46cm Pedestal Fan
Instruction
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP46WA and is the answer not in the manual?

Questions and answers

Related Manuals for Omega Altise AP46WA

Summary of Contents for Omega Altise AP46WA

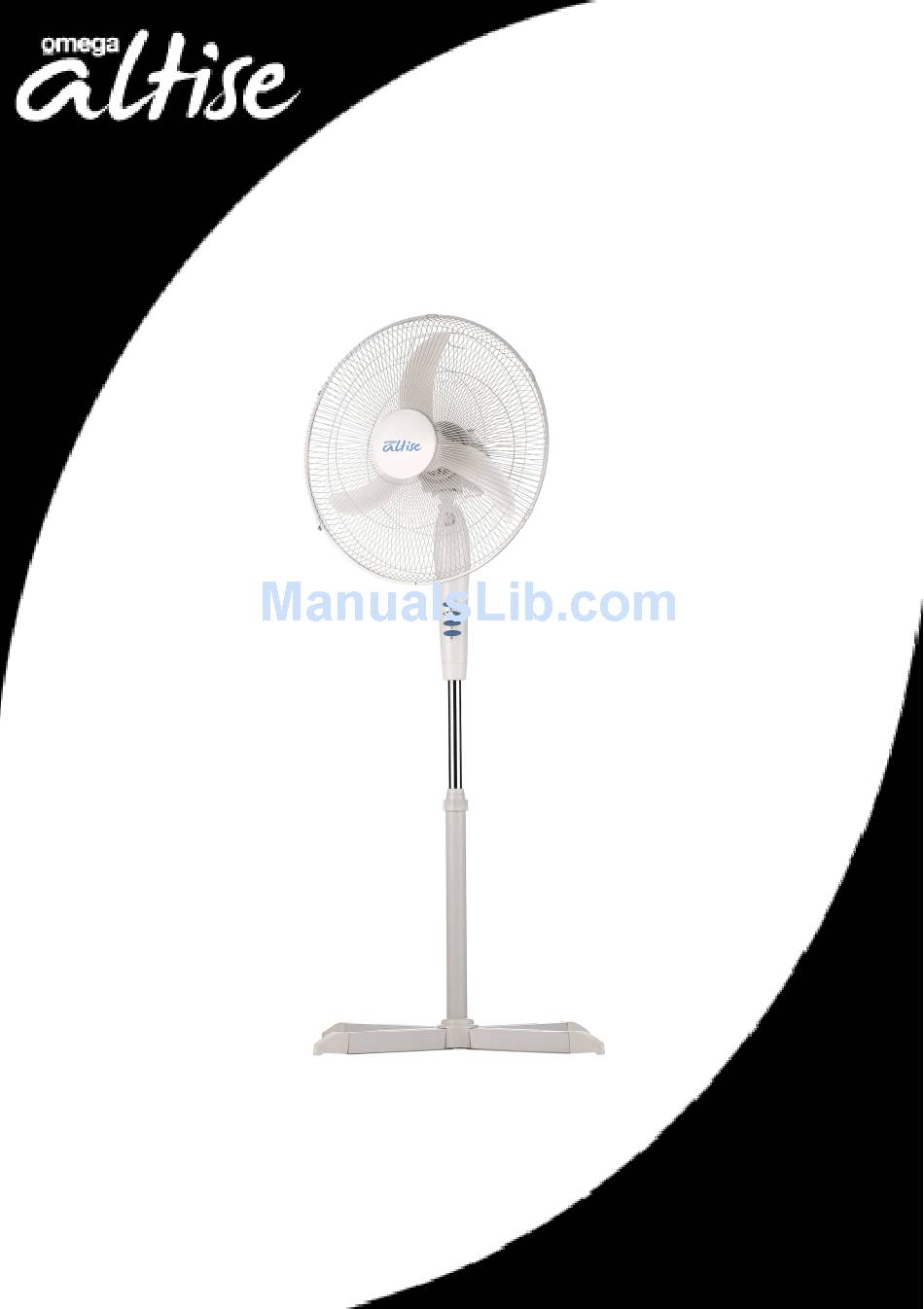

  • Page 1 AP46WA 46cm Pedestal Fan Instruction Manual...

  • Page 2: Important Safety Instructions

    Important Safety Instructions 1. Read all instructions. 2. Disconnect the power plug before dismantling, assembling or before cleaning. 3. Avoid touching mobile parts of the fan. 4. Make sure the fan is on a dry and even surface.

  • Page 3: Assembly Instructions

    Assembly Instructions Assemble the Base Foot of the Stand Fan and Connect the Stand to the Base Foot Put the screw into the hole in the support pole and turn the screw clockwise to clamp the stand and the support pole.
  • Page 4 Loosen the height adjustment ring and extend the support pole. Initially the support pole will be held tightly in place. If necessary, use a pair of pliers to grasp the support pole and pull it into position. To assemble the safety grille and blade assembly, remove the spinner (by turning it...
  • Page 5 Assemble the Fan Blade and Fan Guard Assembly to the Main Part of the fan Step 1: Unscrew the Blade Nut and Locking Nut Step 2: Assemble the Fan Guard – back side to the main part of the fan by aligning the small groove of the fan guard to the plastic pole to fix the position.
  • Page 6 Step 3: Fix the blade into place by tightening the spinner gently in an anticlockwise direction onto the end of the motor spindle. The spinner is self-tightening and hence DO NOT FORCE IT. Step 4 Lift out all locking clips on the Fan Guard – Front side.

  • Page 7: Operating Instructions

    Operating Instructions Press Button 0 to ensure the fan is in the “Off” mode. Plug in the power cord Press Button 1 for Low Speed, 2 for Medium Speed and 3 for High Speed. Press Button 0 for the “Off” mode...

  • Page 8: Care And Maintenance

    WARNING! Do not attempt to open or repair the fan yourself. Doing so could void the warranty and cause damage or personal injury. Omega Altise products are distributed in Australia by Hagemeyer Appliances, (A Division of Hagemeyer Brands Australia Pty Ltd)
