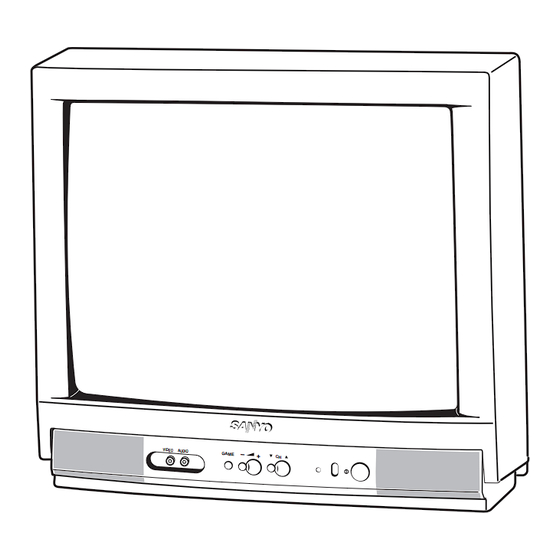

SERVICE MANUAL Colour Television
Specifications
Power Source . . . . . . . . . AC220-240V, 50/60Hz.
Colour System . . . . . . . . PAL (AV input: PAL/NTSC4.43/NTSC/PAL-60Hz)
Television System . . . . . . B/G
Channel Coverage . . . . .Australia
New Zealand
Video IF . . . . . . . . . . . . . . 38.0MHz
Aerial Input Impedance . . 75Ω
Ext. Terminals
Video inputs: Phono jack ✕ 2 (1Vp - p, 75Ω)
Audio inputs: Phono jack ✕ 2 (436mVrms, more than 40KΩ)
Video monitor output: Phono jack ✕ 1(1Vp - p, 75Ω)
Audio monitor output: Phono jack ✕ 1(436mVrms, less than 600Ω)
Sound Output (RMS) . . . . 2 W
Speaker . . . . . . . . . . . . . . 5 cm X 9 cm X 1 pc.
Dimensions . . . . . . . . . . . 496 (W) ✕ 446 (H) ✕ 470 (D)mm
Weight . . . . . . . . . . . . . . . approx. 17.2 Kg
Specifications subject to change without notice.
C2JKG/C2JMG
GAM E
-
+
CH
VHF: 0-11, 5A
UHF: 28-69
CATV: S1-S41, X, Y, Z, Z+1, Z+2
VHF: 1-11
UHF: 21-69
CATV: S1-S41, X, Y, Z, Z+1, Z+2
FILE NO.
Model No. CP20SR1
(Australia/New Zealand)
Service Ref. No. CP20SR1-55
TIMER
TV/AV
1
2
3
4
5
6
7
8
-/--
9
0
BASS
A B
SURROUND
PL
P
P
CH SCAN
PM
SWAP
MENU
PIC MODE
JXMYA
Product Code: 111355229
Original Version
Chassis Series: AC5-G
(Software: AC5-G2)
- NOTE -
Service Ref. No. CP20SR1-65 is electrically the
same as Service Ref. No. CP20SR1-55.
The difference between Service Ref. No.
CP20SR1-55 and CP20SR1-65 is as follows:
1) Destination CP20SR1-55...Australia
CP20SR1-65...New Zealand
Give complete "SERVICE REF. NO." for
parts order or servicing. It is shown on the
rating plate at the cabinet back of the unit.
This T.V. receiver will not work properly in
foreign countries where the television
transmission system and power source dif-
fer from the design specifications. Refer to
the specification table.
REFERENCE NO.
(A)
(Australia)
CP20SR1-65
(New Zealand)
SM
5110616
Advertisement
Table of Contents
Related Manuals for Sanyo CP20SR1
Summary of Contents for Sanyo CP20SR1
- Page 1 (Software: AC5-G2) VHF: 0-11, 5A UHF: 28-69 - NOTE - CATV: S1-S41, X, Y, Z, Z+1, Z+2 Service Ref. No. CP20SR1-65 is electrically the New Zealand same as Service Ref. No. CP20SR1-55. VHF: 1-11 The difference between Service Ref. No.
-
Page 2: Table Of Contents
Contents Safety Notice ............... . 2 Chassis Block Diagram . -
Page 3: Chassis Block Diagram
Chassis Block Diagrams MAIN SIGNAL PROCESSING CIRCUIT ✻ Teletext decoder and SECAM decoder are not equipped. ✻ ✻... -
Page 4: Chassis Block Diagram
Chassis Block Diagrams SYSTEM CONTROL... -
Page 5: Ic Block Diagrams
IC Block Diagrams IC201 < IF/Video/Chroma/Def. > LA76818A Audio Output SIF Input FM Output/Selected SIF APC Filter Audio Output SIF Output PIF AGC Ext. Audio Input RF AGC Output APC Filter PIF Input1 VCO Coil 1 PIF Input 2 VCO Coil 2 IF Ground VCO Filter IF Vcc... - Page 6 IC Block Diagrams IC201 <IF System Block Diagram> LA76818A...
-
Page 7: Service Information
IC Block Diagrams IC501 < Vertical Output > LA78040/LA78040N Thermal Protection Pump IC001 < Audio AMP.> LA4266 300Ω 30kΩ OUT2 Power Filter Service Information I Protection Circuit This TV set has a built-in power supply protection circuit. It is provided to protect the TV set in case of a power supply circuit malfunctions. When something abnormality occurs during TV reception, the TV set goes to the stand-by mode. -
Page 8: Service Adjustments With Replacing Memory Ic(Ic802)
Service Adjustments with Replacing Memory IC(IC802) Note: The CPU (IC801) and memory IC (IC802) store the service adjustments data and controls data for each circuit.When the Memory IC(IC802) is replaced, some of the service adjustments should be readjusted to obtain the best performance. The necessary service adjustments are carried out by using the RC handset. Please set up the TV set with following steps [1] to [2]. - Page 9 Service Adjustments with Replacing Memory IC(IC802) Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments. Service mode adjustments table in CPU ROM DATA INITIAL DATA INITIAL ITEM RANGE SETUP DESCRIPTION ITEM RANGE...
- Page 10 Service Adjustments with Replacing Memory IC(IC802) DATA INITIAL DATA INITIAL ITEM RANGE SETUP DESCRIPTION ITEM RANGE SETUP DESCRIPTION DATA DATA TUNER Tuner Option 0~255 ROM Correction AV123 AV1/AV2/AV3 Option, 0=AV only, 0~255 ROM Correction 1=AV1, AV2, 2~3=AV1, AV2,AV3 0~255 ROM Correction 88 OPT POS Programme number Option, 0~255...
-
Page 11: Service Adjustments With Replacing Memory Ic (Ic802)
Service Adjustments with Replacing Memory IC(IC802) [Entering to Service Mode] Press and hold the MENU button on the Remote Control and press the VOLUME (+) button on the TV set. Following setting items appears on the screen. MENU Display for [RF AGC] RF AGC adjustment MENU Read Status SI. -
Page 12: Service Mode Adjustments
Service Mode Adjustments Following adjustments should be carried out when the memory IC is replaced. How to enter the service mode and adjust values, please refer to “ Entering to Service mode” on page 11. Item 05 [V-SCO] V-S CORRECTION Item 01 [RF AGC] AGC NOTE: Do not attempt this adjustment with weak signal. -
Page 13: Service Mode Adjustments
Service Mode Adjustments Items 14-17, 19-21 GREY SCALE (1) Receive the monochrome circular pattern. (2) Set the brightness and colour to normal, contrast to maximum. (3) Enter to the service mode. (4) Set each value of Item-14 RBIAS, 15 GBIAS, 16 BBIAS, 17 RDRIV and 19 BDRIV mode to 64. (5) Select Item-20 mode to be one horizontal scanning line and turn the screen volume on the FBT to obtain just visible one coloured line. -
Page 14: Service Adjustments
Service Adjustments Following adjustments are not required to readjust when replacing the memory IC. B-VOLTAGE SUPPLY CHECKING HIGH VOLTAGE CHECK (1) Connect DC meter to TP-B and the ground. Note: +B (+130V) Voltage Check and Grayscale Adjustment (2) Tune the receiver to an active channel and synchro- must be completed before attempting High Voltage Check. -
Page 15: Special Function
Special Function The following special functions can be set up on this TV How to set the special function: set. Note: When making the VOLUME LOCK setting, set the (1) Volume Lock setting desired maximum sound volume by pressing the VOLUME + or - button before entering Special Function setting mode. -
Page 16: Purity And Convergence Adjustment
Purity and Convergence Adjustment CAUTION: The Convergence and Purity adjustments have been made at the factory. Readjustment should be made only after picture tube or deflection yoke replacement, following the steps below: PURITY ADJUSTMENT 8. Tighten the mounting screw of the Deflection Yoke. Adjust 1. -
Page 17: Cabinet Parts List
SPRING-E3HA 610 283 4208 DEC IND-C2AE 610 283 4116 BUTTON UNITED-C2BE 610 292 3094 CABINET FRONT-C2JY 645 041 7252 BADGE,SANYO*43.5X10L43.5 610 310 8490 CABINET BACK -C2JK 610 313 0309 LABEL RATING-AUS BIG 645 054 3579 ASSY,REMOCON JXMYA 610 300 5102... -
Page 18: Chassis Electrical Parts List
C2JKG Chassis Electrical Parts List Product safety should be considered when a component replacement is made in any area of a receiver. Components indicated by a mark in this parts list and the circuit diagram show components whose value have special significance to product safety. - Page 19 C2JKG Ref. No. Part No. Description Ref. No. Part No. Description 405 020 7709 TR 2SC945A-QA 409 172 1509 IC MC78M05CT 405 020 7907 TR 2SC945A-RA 409 320 5700 IC UPC78M05AHF Q683 405 089 0000 TR 2SA1707-S IC501 409 449 4103 IC LA78040 405 089 0109 TR 2SA1707-T...
- Page 20 C2JKG Ref. No. Part No. Description Ref. No. Part No. Description C205 404 084 8905 ELECT 10U M C601 404 060 7205 MT-POLYEST 0.1U M 250V 403 049 4204 ELECT 10U M 404 093 6107 MT-POLYEST 0.1U M 275V C208 403 367 0407 CERAMIC 0.1U K...
- Page 21 C2JKG Ref. No. Part No. Description Ref. No. Part No. Description R006 401 024 5604 CARBON 1 JA 1/6W R356 401 105 0603 MT-GLAZE 10K JA 1/16W R010 401 105 3307 MT-GLAZE 2.7K JA 1/16W R357 401 026 7002 CARBON 3.9K JA 1/6W R011...
- Page 22 C2JKG Ref. No. Part No. Description Ref. No. Part No. Description R804 401 105 7909 MT-GLAZE 0.000 ZA 1/16W 645 018 7025 CORE,PIPE R805 401 105 7909 MT-GLAZE 0.000 ZA 1/16W 652 001 0475 PIPE CORE R811 401 105 0603 MT-GLAZE 10K JA 1/16W L441...
- Page 23 C2JKG Ref. No. Part No. Description Ref. No. Part No. Description D613 407 063 9702 ZENER DIODE MTZJ9.1C 610 313 4512 ASSY,PWB,CRT C2JT 407 057 9800 ZENER DIODE RD9.1EB3 1AA0B10S1340B 408 048 0400 ZENER DIODE MTZJ9.1C-52 D617 407 006 0100 DIODE ERA-91-02 TRANSISTOR D631...
- Page 24 D751 407 149 0807 DIODE 1SS355-TE-17 D752 407 149 0807 DIODE 1SS355-TE-17 D753 407 149 0807 DIODE 1SS355-TE-17 D754 407 149 0807 DIODE 1SS355-TE-17 MISCELLANEOUS K701L 645 026 2005 SOCKET,CRT 8P SANYO Electric Co., Ltd. A14800/Feb./’04/30 BB Printed in Japan...
- Page 25 N: Metalized carbon 8. This circuit diagram covers a basic or representative chassis only. There Kind (M.carbon) S: Oxied metalized CP20SR1-55 W: Wire wounding Rated wattage (1/2W) POSISTER may be some components or partial circuit differences between the...
- Page 26 CRT BOARD (Component Location) Waveforms & Voltages (On the Main Board) R713 IC201 (IF/VIDEO/CHROMA) R719 Q701 (B-OUT) R711 Pin-1 2.3V 2.2V 2.7V 3.2V 2.9V 2.9V 5.0V 2.5V L702 Q701A 2.3V 4.3V 4.1V 4.3V 1.6V 1.7V 1.6V 8.3V R712 2.2V 2.1V 2.1V 2.0V 2.2V...
