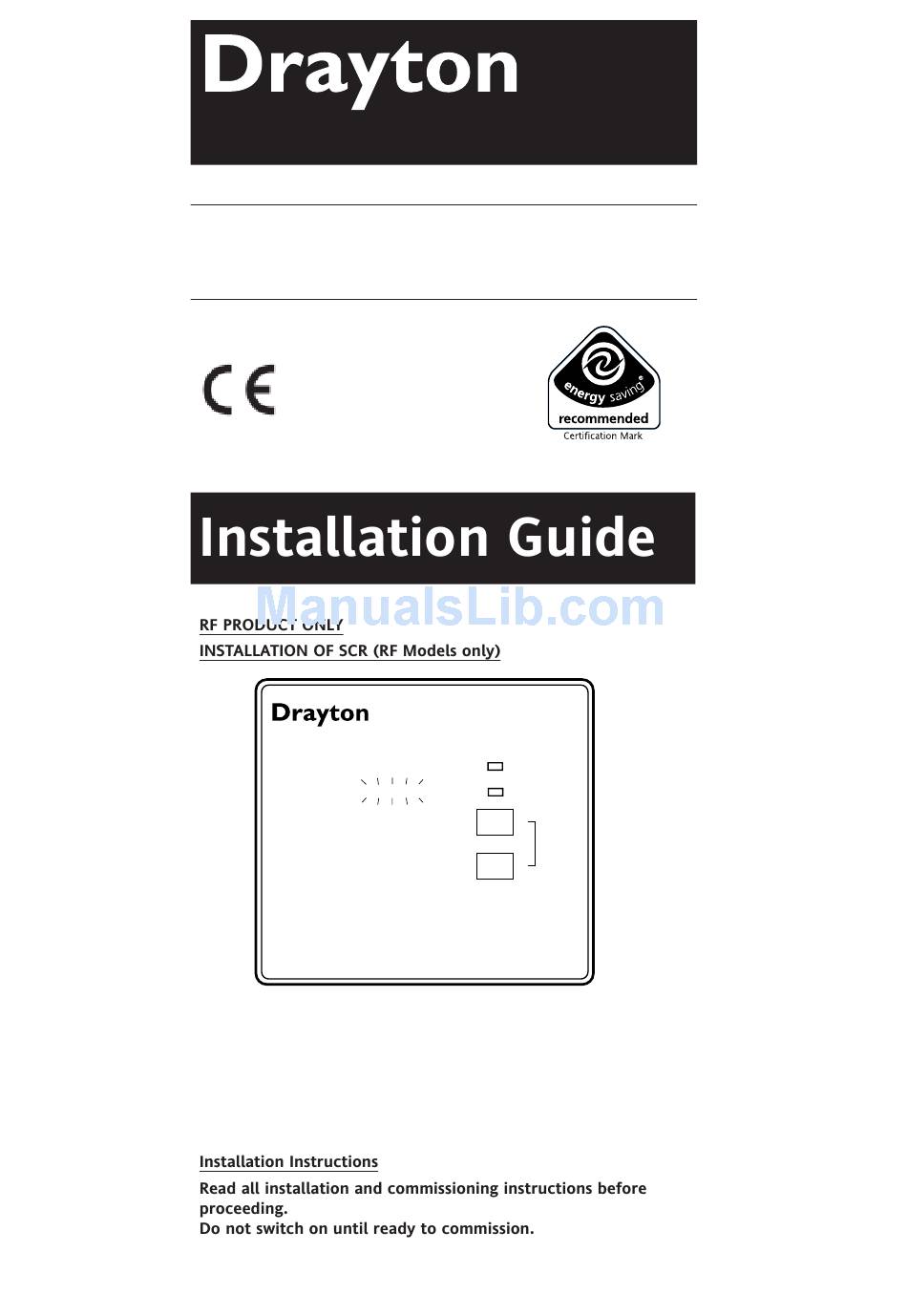

Installation Manual
Digistat+1 & Digistat+1RF
Room Thermostat
Models:
RF710/22190/22192
Invensys Controls Europe
Technical Helpline: +44 (0) 845 130 7722
www.draytoncontrols.co.uk
Receive / Alarm
Wireless System
If you do not have the knowledge to install the SCR safely then you
must arrange for a competent electrician to install it for you. Wiring
must conform to the current IEE wiring regulations.
Prior to commencing the installation you must ensure the mains
supply is switched off.
The system wiring must be able to be fully disconnected from the
mains supply by a switch incorporated in the fixed wiring having a
contact separation of at least 3mm on both poles. Fused at 3A.
Digistat SCR
On
2
Override
Learn
Mode
1
Advertisement
Related Manuals for Drayton RF710
Summary of Contents for Drayton RF710
- Page 1 Digistat+1 & Digistat+1RF Room Thermostat Models: RF710/22190/22192 Invensys Controls Europe Technical Helpline: +44 (0) 845 130 7722 www.draytoncontrols.co.uk Digistat SCR Receive / Alarm Override Learn Mode Wireless System If you do not have the knowledge to install the SCR safely then you must arrange for a competent electrician to install it for you.
- Page 2 The Digistat SCR (receiver) should be mounted in a convenient position, close to the boiler or central heating system wiring centre. (Care should be taken not to mount the SCR in a position where it is surrounded by metal objects or mains voltage cable, as this may interfere with the radio signal).
- Page 3 50 mm minimum clearance 40 mm 40 mm minimum minimum clearance clearance 70 mm minimum clearance Volt free contacts Call for 230V a.c. Common Heating heat Fused 3A satisfied or call for cooling This product is double insulated and does not require an earth connection. The SCR should be wired to the combi boiler or central heating wiring using the correct type of cable or flex.
- Page 4 Switched Internal 230V a.c. boiler fused 3A, electronics External controls connections Digistat + RF Radio signals to SCR - no wiring Switched live from wiring Motorised valve centre To boiler 230V a.c. and/or fused 3A pump Digistat + RF Radio signals to SCR - no wiring Standard for all models IMPORTANT: MULTIZONE INSTALLATIONS ONLY...
- Page 5 5. Take the Digistat RF and hold it within sight of the SCR (no closer than one metre). 6. Remove the battery cover and fit the batteries. 7. The Digistat RF should now display the actual room temperature. If the unit has been stored in a cold place, it may take time to warm 8.
- Page 6 Room Thermostat Care should be taken to mount the thermostat in a position which is not subject to direct sunlight or draughts. Preferably it should be mounted on an inside wall about 1.5m (5ft) above the floor in a position where it can respond to room temperature but away from the direct influence of radiators or other appliances giving off heat.
- Page 7 If you do not have the knowledge to install the thermostat safely then you must arrange for a competent electrician to install it for you. Wiring must conform to the current IEE regulations. Prior to commencing the installation you must ensure the mains supply is switched off.
- Page 8 4. Remove the battery cover using a coin (Fig 4). 5. Install the 2 AA batteries provided (Fig 5). (Fig 4) (Fig 5) 6. Replace battery cover (fig 6). (Fig 6) 7. The Digistat +1RF is now installed and will automatically start to control the room temperature.
- Page 9 Combi Boiler 1. Internal temperature sensor has failed. 2. Ambient temperature is outside product operating temperature range.
-
Page 10: Technical Data
Technical Data 2 x AA Size, 1.5V alkaline batteries SPDT 16(2)A 230V a.c. Volt free 10mA@24V a.c. (inductive) 433 MHz Radio Signal Range: 30m typically. The range may be affected by the composition / density and number of walls between the Digistat RF and SCR. Temperature Range: 5 to 30ºC + 0.5K @ 20ºC... - Page 11 230V a.c. SPDT (voltage free) 2(1)A 230V a.c. or 24V a.c./d.c. Wiring: Designed for fixed wiring only, to comply with current IEE wiring regulations (BS7671). 433 MHz 2006/95/EC Low Voltage Directive 2004/108/EC Electromagnetic Compatibility Directive 1999/5/EC R&TTE Directive 2006/66/EC Battery Directive EN 60730-1, EN 60730-2-9 ETSI EN 300 220-3, ETSI EN 301 489-3...
-
Page 12: Room Thermostat
Digistat+1 & Digistat+1RF Room Thermostat Models: RF710/22190/22192 Invensys Controls Europe Technical Helpline: +44 (0) 845 130 7722 www.draytoncontrols.co.uk User Guide What is a room thermostat? ... An explanation for householders A room thermostat simply switches the heating system on and off as necessary. It works by sensing the air temperature,...
