Page 1: Programmable Room Thermostat

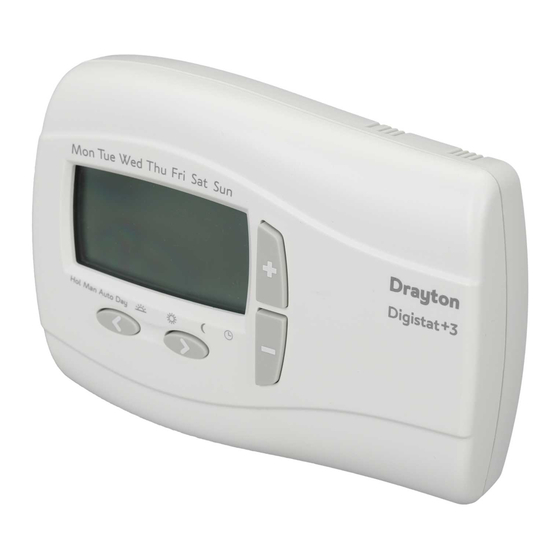

Drayton Programmable Room Thermostat 7 Day (5-2 Day) Models: 22083 / 22087 Power Supply: Battery / Mains Invensys Controls Europe Technical Helpline: +44 (0) 845 130 7722 www.draytoncontrols.co.uk Installation / User Guide 06490044001 (0905) -
Page 2: User Guide
User Guide Your Digistat+3 programmable room thermostat. (7 day (5-2 Day) Digistat+3 programmable room thermostat allows you to set time and temperature periods (up to 6 per day) to suit your own lifestyle. Once fully installed and powered the Digistat+3 will automatically set the correct time and in auto mode will control your heating system according to pre-set program 1 (9 till 5). - Page 3 How to change the temperature for a short time (Override). When in Auto mode you can override the existing temperature setting by pressing + or -. During adjustment the temperature will flash then stop. The Digistat+3 will now control at this temperature until the next programmed time/temperature event is reached, when the Digistat+3 will revert back to Auto mode.
- Page 4 To enter Holiday mode press the < button until the pointer is indicating HOL (fig 3). The temperature will flash and by pressing the + or - buttons you can change to the temperature required ( in this example to 10.0 ºC) (Fig 3a). Then press <...
- Page 5 How to replace the batteries see fig 6. Remove the battery cover using a coin. Replace the spent batteries with 2 x AA 1.5V alkaline batteries ensuring correct orientation. Replace the battery cover pressing fully home. (Fig 6) How to change the time, day, month & year. Digistat+3 comes with a pre-set clock, which also automatically adjusts for summer/winter time changes.
- Page 6 (Fig 7) (Fig 8) (Fig 9) (Fig 10) Display Error code E1 or E2. When the display shows E1 or E2 this indicates a sensor fault and your heating system will remain Off. Please contact your installer. How to select another pre-set time/temperature program. There are 3 pre-set time/temperature programs already held in memory as shown, if pre-set program 1 is the best program to suit your lifestyle do nothing and the Digistat+3 will control to...
- Page 7 User Guide – continued Pre-set programs for Digistat+3 7 day 5-2day. Program 1 (9 till 5) as shown below Monday to Friday Events Time 6:30 8:30 12:00 14:00 16:30 22:30 Temperature C 20.0 16.0 16.0 16.0 21.0 Saturday and Sunday Events Time 7:00...
- Page 8 Once you have selected the required day or days, press > to view the existing time/temperature event (1). (Fig 14) time will flash. Press > again to view the temperature setting, temperature will flash. Press > again to view the second time temperature event (Fig 14a).
- Page 9 User options What is it Default Change 12h or 24h clock Change the manual set point temperature Change to another pre-set programme Change the number of programme events per day 2, 4 or 6 Switch on/off automatic summer/winter time change Change temperature offset Restore pre-set programme To enable Off function...
- Page 10 How to change temperature offset (Option 6). The temperature displayed on the thermostat may not match that of other temperature measuring devices in the controlled space, because of its location. The displayed and set temperature may be offset to bring it in line with other devices. To adjust the temperature, enter the user options, select option 6.
-
Page 11: An Explanation For Householders
What is a programmable room thermostat? ...an explanation for householders A programmable room thermostat is both a programmer and a room thermostat. A programmer allows you to set ‘On’ and ‘Off ’ time periods to suit your own lifestyle. A room thermostat works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set... - Page 12 turn them up by one degree each day until you are comfortable with the temperatures. You won’t have to adjust the thermostat further. Any adjustments above these settings will waste energy and cost you more money. If your heating system is a boiler with radiators, there will usually be only one programmable room thermostat to control the whole house.
