- Page 1 InstructIons and safety manual 87545-86 16L 1300W Wet/Dry Vacuum cLeaner...
- Page 2 Please retain this handbook in case you need to refer to any of the information in the future. Your TITAN wet/dry vac comes with a 24-month guarantee, so should it develop a fault within this period contact your retailer. WARRANTY This product is guaranteed for 2 years from the date of purchase.
-
Page 3: Safety Instructions
18. The user of the device is responsible for the safety of others while using it. 19. The vacuum should only be used for its intended purposes. 16L 1300W Wet/Dry Vacuum cLeaner... - Page 4 20. Before performing any maintenance, adjustment or cleaning procedures on the vacuum cleaner, turn it off, unplug it from the electrical outlet, and wait for the motor to stop. 21. Be very careful when checking, cleaning, or performing maintenance on the device and wear thick work gloves to protect your hands.
- Page 5 For further information, you can contact your local or regional government. 16L 1300W Wet/Dry Vacuum cLeaner...
-
Page 6: Technical Data
technical data Power .......................1100W(1300W Max.) Supply Voltage ........................230V~50Hz Protection ..........................IPX4 Tank capacity ........................16 Litres Tank construction material ..................Polypropylene Vacuum Pressure (kPa) ......................14.7 Weight (kg) ..........................5.45 This tool is double insulated. There are two independent barriers of insulation to protect you from the possibility of electric shock. -
Page 7: Getting Started
Attach the extension tubes to the accessory end of the hose. Install the cleaning accessories (as needed) onto the end of the extension tubes. Insert the power cord plug into a wall socket. You are now ready to use your vacuum cleaner. 16L 1300W Wet/Dry Vacuum cLeaner... -
Page 8: Operation
Operation WARNING : If the vacuum cleaner accidentally tips over, the shut-off float mechanism may cover the joint and stop the suction. If this happens, simply stand the vacuum upright and turn it off until the float returns to its normal position. VacuumInG dry materIals In order to ensure proper filtering when vacuuming dust and dry materials, a foam sleeve and a dust collection bag should be installed. -
Page 9: Start Vacuuming
WARNING : ALWAYS WEAR EYE PROTECTION TO PREVENT DEBRIS FROM BEING BLOWN OR RICOCHETING INTO THE EYES OR FACE WHICH CAN RESULT IN SERIOUS INJURY. 16L 1300W Wet/Dry Vacuum cLeaner... -
Page 10: Maintenance And Repair
Maintenance and Repair The vacuum cleaner does not require lubrication or supplementary maintenance. Before storing the vacuum cleaner, always empty and clean the tank. Never leave any liquids standing in the tank for an extended period of time. Clean the foam sleeve in order to avoid clogging from debris. Never use water or chemical cleaning products with detergent to clean the vacuum cleaner. -
Page 11: Declaration Of Conformity
Standards and technical specifications referred to: EN 60335-2-2 EN 60335-1 EN 62233 EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 Authorised Signatory and technical file holder Date: 02/11/2011 Signature: Name: Peter Harries Titan Power Tools (UK) Ltd. Trade House, Mead Avenue, BA22 8RT Quality Manager...
Need help?
Do you have a question about the 16L 1300W and is the answer not in the manual?
Questions and answers
Repair return spring
How to repair cable return spring

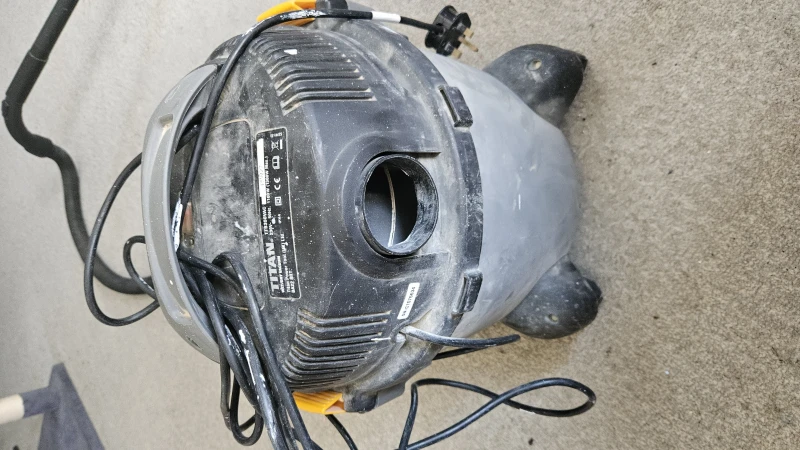

Hi looking for replacement alloy motor **** great little cleaner but suddenly got very very loud **** on end of motor split and bent think this is the case?
The manual does not provide information on finding a replacement alloy motor for the Titan 16L 1300W cleaner. However, you may contact your retailer or Titan Power Tools (UK) Ltd for assistance.
