9. Start the engine, warm it up for several min-
utes, turn it off, and then check for oil leak-
age.
EAS37P1096

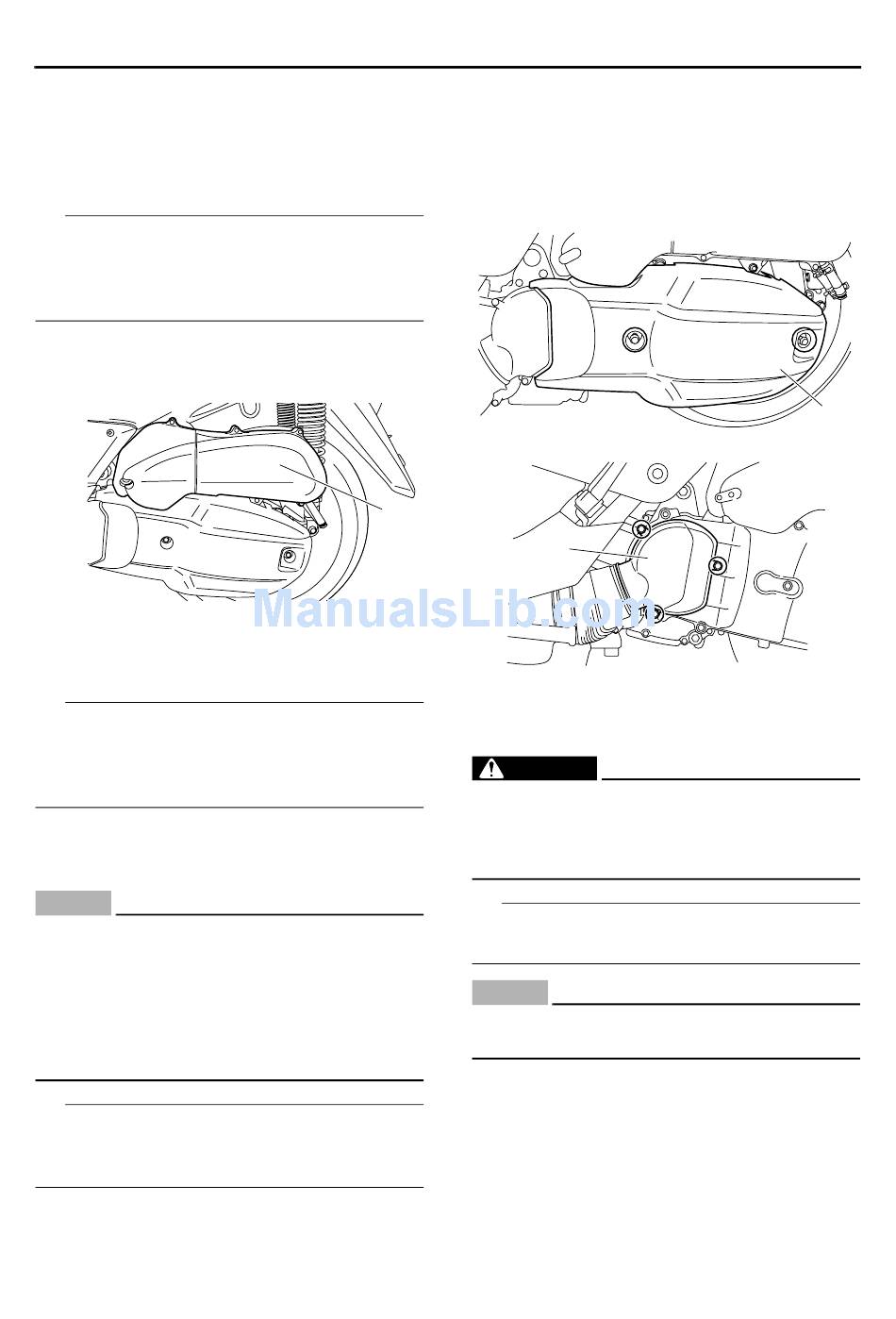

REPLACING THE AIR FILTER ELEMENT

TIP
Check hoses are located on the bottom of the air
filter case. If dust or water or both collects in a
hose, remove the clamp from the hose, and then
remove the plug to drain the hose.
1. Remove:
• Air filter case cover "1"
• Air filter element
2. Check:
• Air filter element
Damage → Replace.
TIP
• Replace the air filter element every 12000 km
of operation.
• The air filter needs more frequent service if you
are riding in unusually wet or dusty areas.
3. Install:
• Air filter element
• Air filter case cover
ECA37P1045
NOTICE
Never operate the engine without the air filter
element installed. Unfiltered air will cause
rapid wear of engine parts and may damage
the engine. Operating the engine without the
air filter element will also affect the throttle
body tuning, leading to poor engine perfor-
mance and possible overheating.
TIP
When installing the air filter element into the air
filter case cover, make sure that the sealing sur-
faces are aligned to prevent any air leaks.
EAS37P1097
CLEANING THE V-BELT CASE AIR FILTER
ELEMENT
1. Remove:
• V-belt case cover "1"
• V-belt case air duct "2"
• V-belt case air filter element
1
2. Clean:
• V-belt case air filter element
(with solvent)
EWA37P1020
WARNING
Never use low flash point solvents, such as
gasoline, to clean the V-belt case air filter el-
ement. Such solvents may cause a fire or an
explosion.
TIP
After cleaning, gently squeeze the V-belt case
air filter element to remove the excess solvent.
ECA37P1046
NOTICE
Do not twist the V-belt case air filter element
when squeezing it.
3-15
ENGINE (YP125R)
2
1
