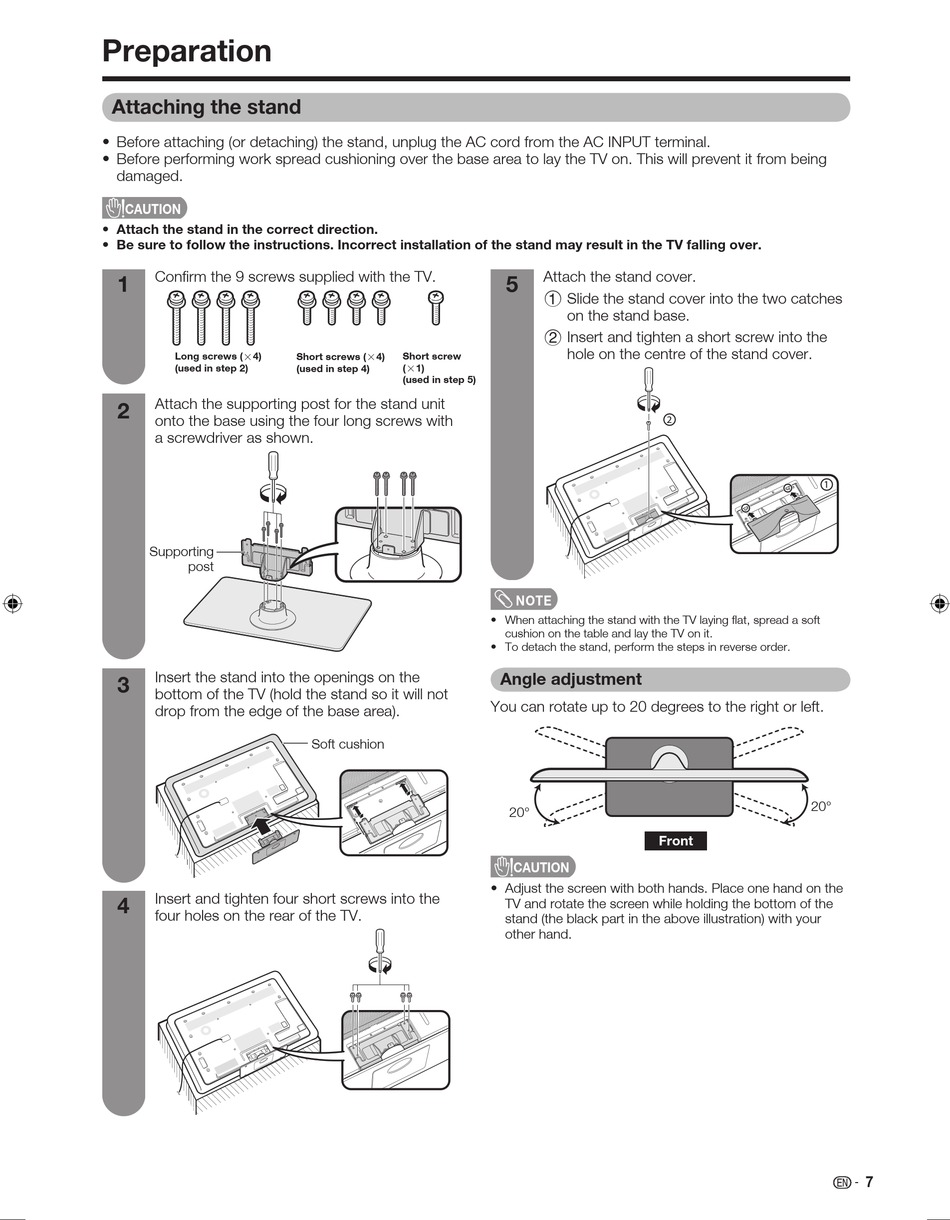

Attaching the stand

• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being
damaged.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
Confi rm the 9 screws supplied with the TV.
1
Long screws ( g 4)
(used in step 2)
Attach the supporting post for the stand unit
2
onto the base using the four long screws with
a screwdriver as shown.
Supporting
post
Insert the stand into the openings on the
3
bottom of the TV (hold the stand so it will not
drop from the edge of the base area).
Insert and tighten four short screws into the
4
four holes on the rear of the TV.
Short screw
Short screws (g4)
(g1)
(used in step 4)
(used in step 5)
Soft cushion
Attach the stand cover.
5
1 Slide the stand cover into the two catches
on the stand base.
2 Insert and tighten a short screw into the
hole on the centre of the stand cover.
NOTE
• When attaching the stand with the TV laying fl at, spread a soft
cushion on the table and lay the TV on it.
• To detach the stand, perform the steps in reverse order.

Angle adjustment

You can rotate up to 20 degrees to the right or left.
20°
CAUTION
• Adjust the screen with both hands. Place one hand on the
TV and rotate the screen while holding the bottom of the
stand (the black part in the above illustration) with your
other hand.
