W1900 Series Clothes Washers
Technical Information
5.4 Door Seal – Replacement
Refer to Figure 5-3 – Replacing the Door Seal.
1. Open the Front Service Panel – Refer to Section 5.3.
2. Unclip the front edge of the Door Seal from the Font Plate (Item 1)
and fold back.
3. Loosen the clamping ring and remove the seal and ring (Item 2).
To fit a new seal, replace parts in reverse order.

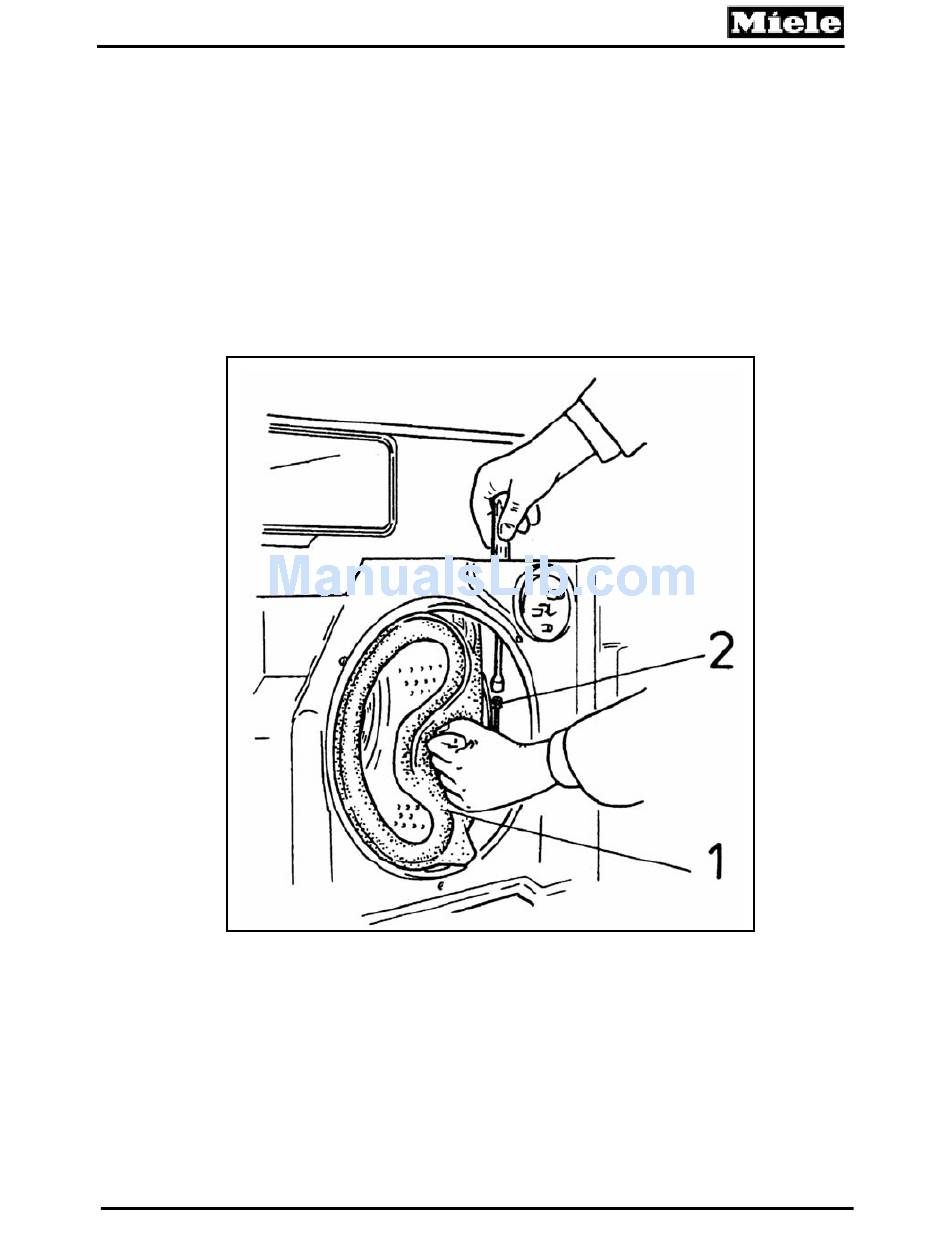

Figure 5-3: Replacing the Door Seal

37
